Data Center Layouts

The Data Center Layouts table lists the Data Center Layouts that have been defined within your account.

Data Center layouts are created and edited using Power Manager, which is a separate desktop application available from Packet Power.

  1. Click a layout name to view the layout.

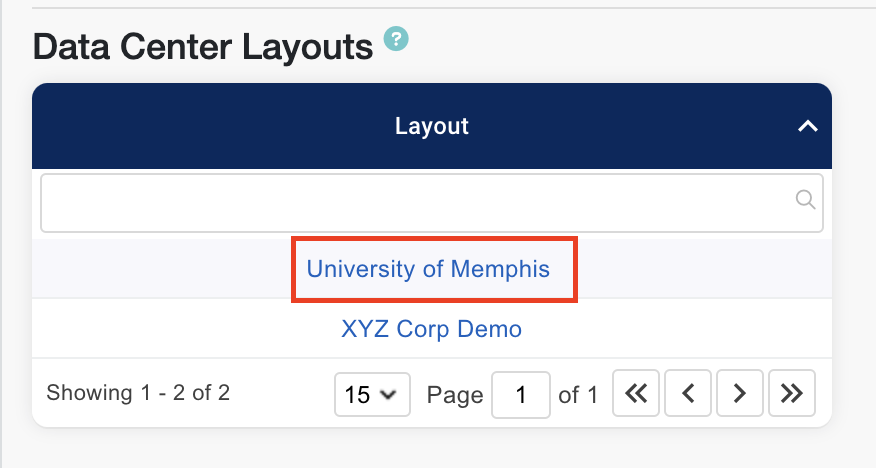

Screenshot 2024-04-12 at 2.47.52 PM.png

  1. Click the layout you want to view in more detail. Monitoring Nodes tables will be displayed showing node location, friendly node name, node IDs, Power, and VAR readings.

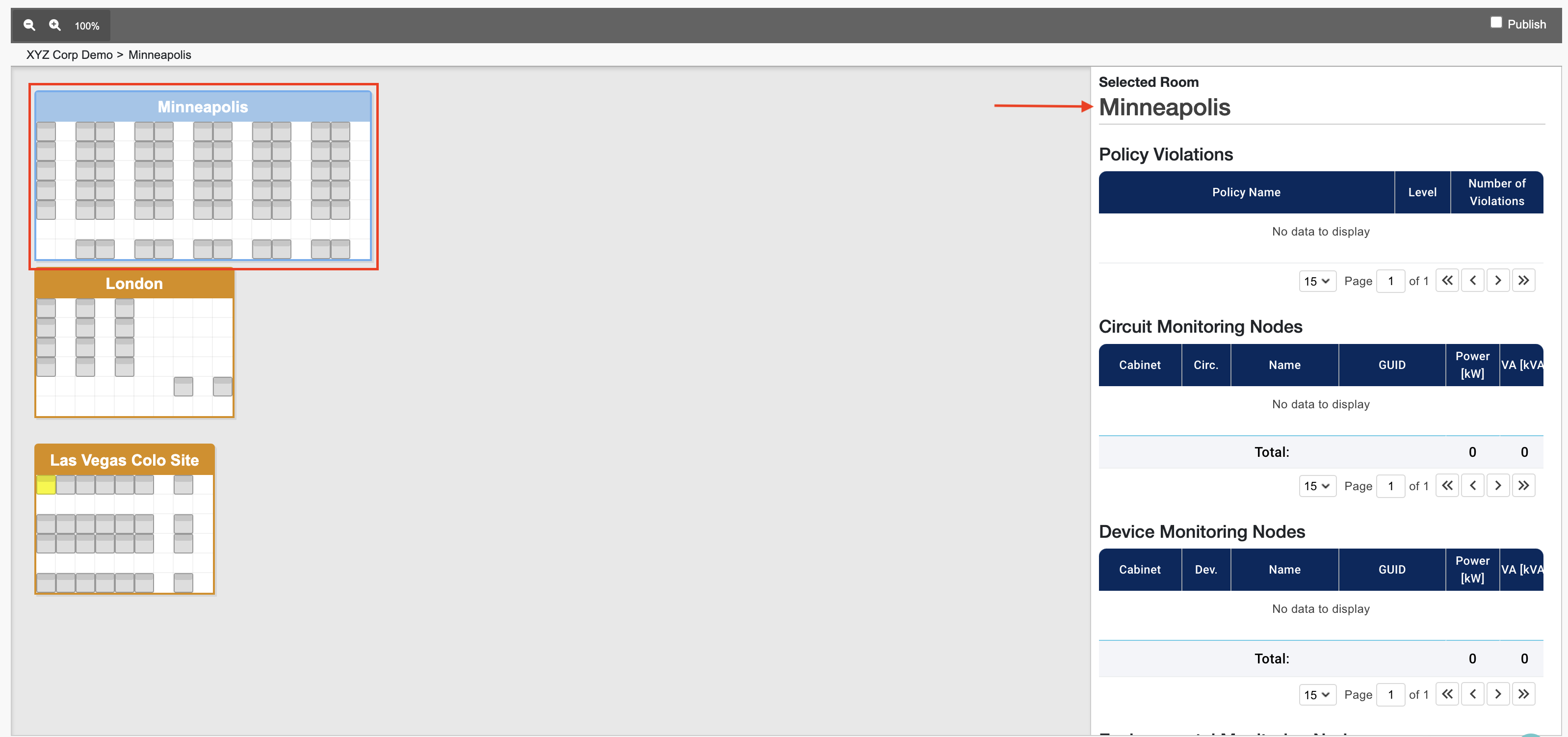

Screenshot 2024-04-12 at 2.49.28 PM.png

  1. Click a node location, friendly node name, or node ID to display its detail page.

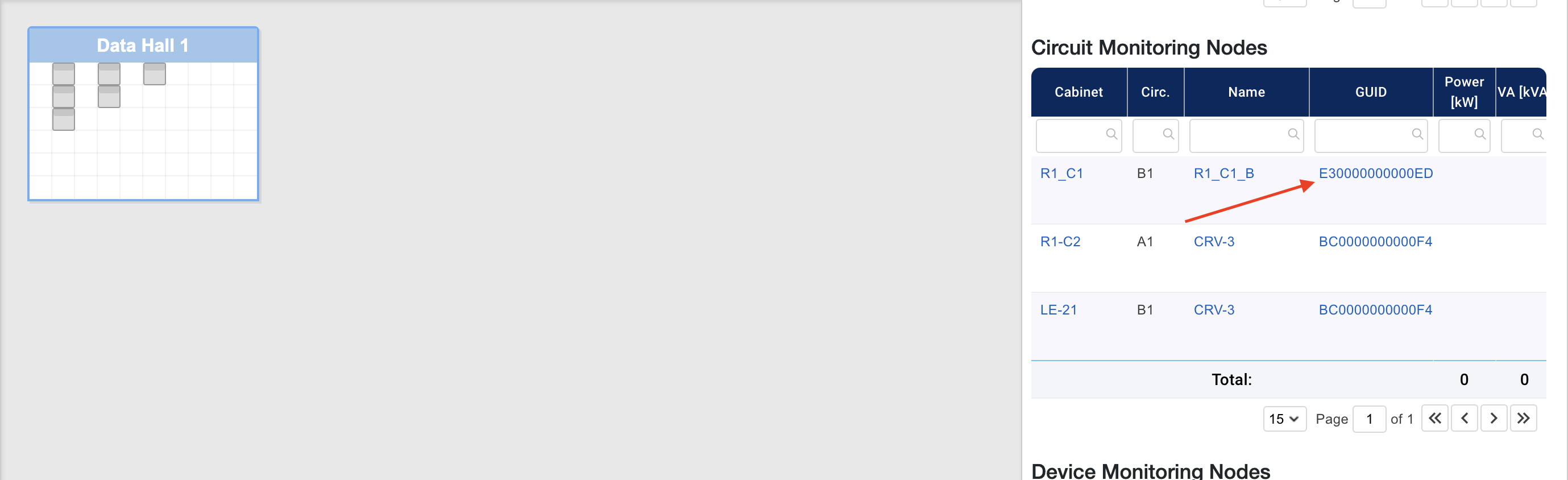

Screenshot 2024-04-12 at 2.56.25 PM.png
