Preset Report Structures

EMX provides a set of predefined report structures addressing common applications:

Energy

Provides:

• Energy at the individual circuit level

• Total energy for all circuits

Use Cases:

• Energy cost allocation

• Energy benchmarking

• Submetering

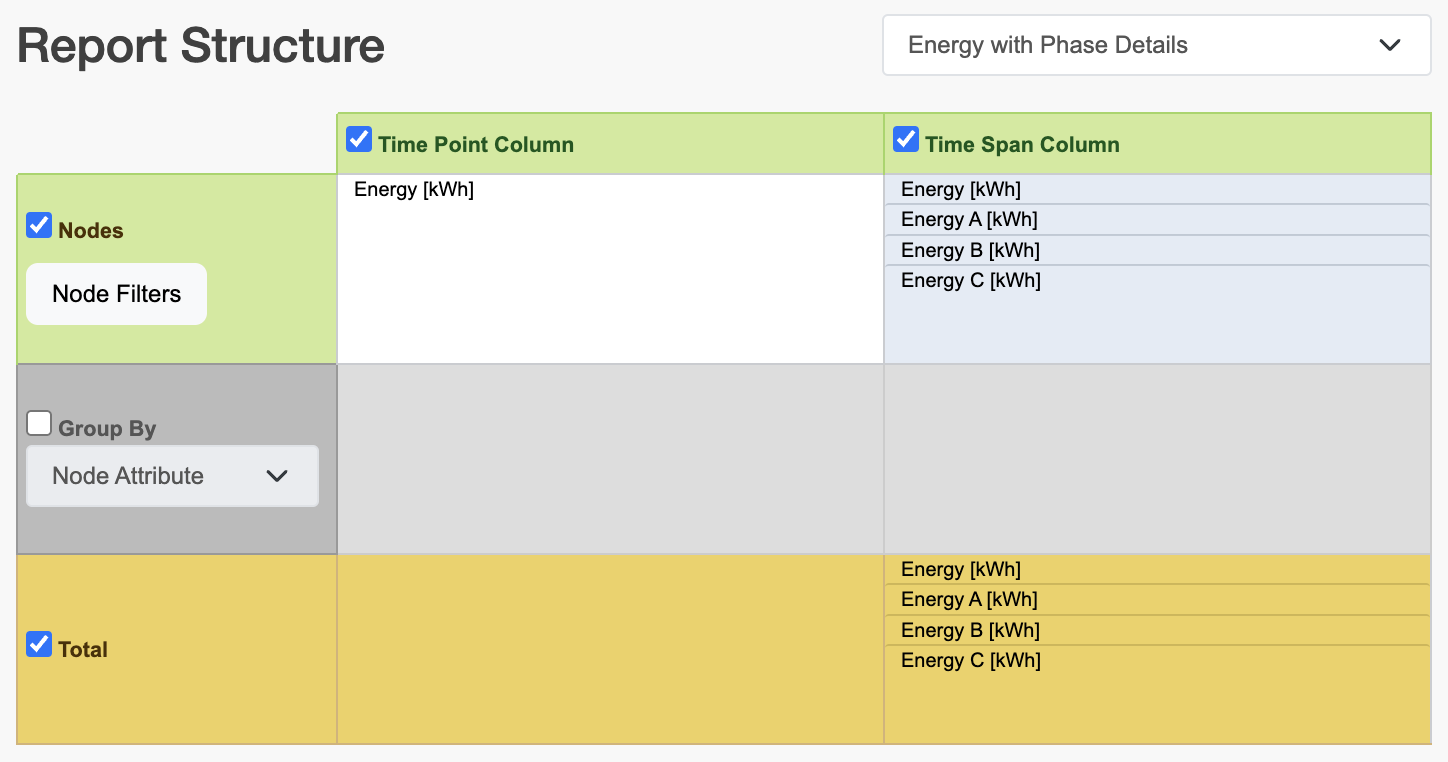

Energy with Phase Details

Provides:

• Energy usage at the individual circuit level

• Total and per-phase energy usage across all circuits

Use Cases:

• Aggregate by phase and in total

• Phase balancing

• Energy benchmarking

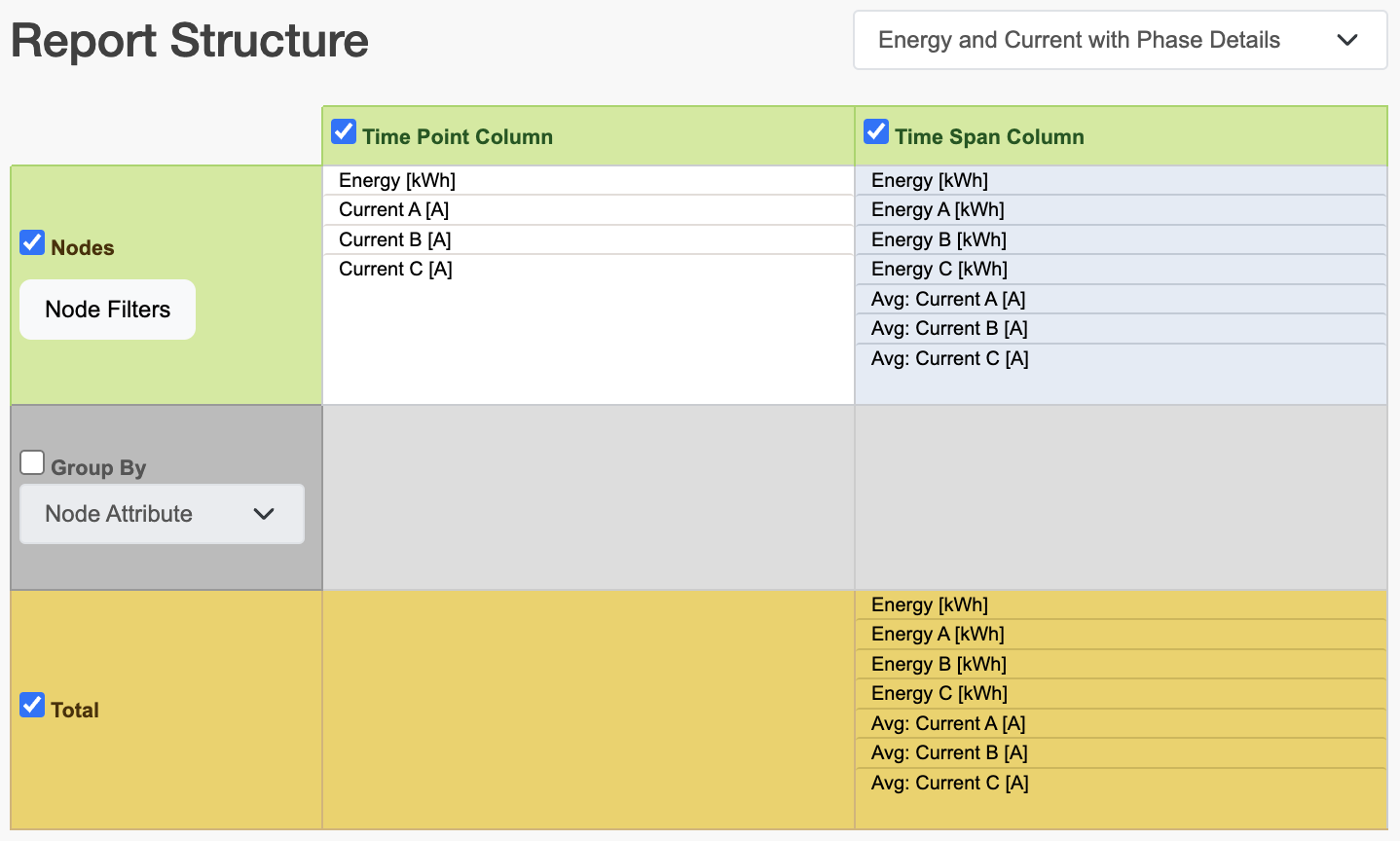

Energy and Current with Phase Details

Provides:

• Circuits level Energy consumption by phase and in aggregate

• Average Current (Amps) by phase

• Total energy across all circuits in total and by phase

• Average current draw across all circuits by phase

Use Cases:

• Energy cost allocation

• Phase balancing

• Energy benchmarking

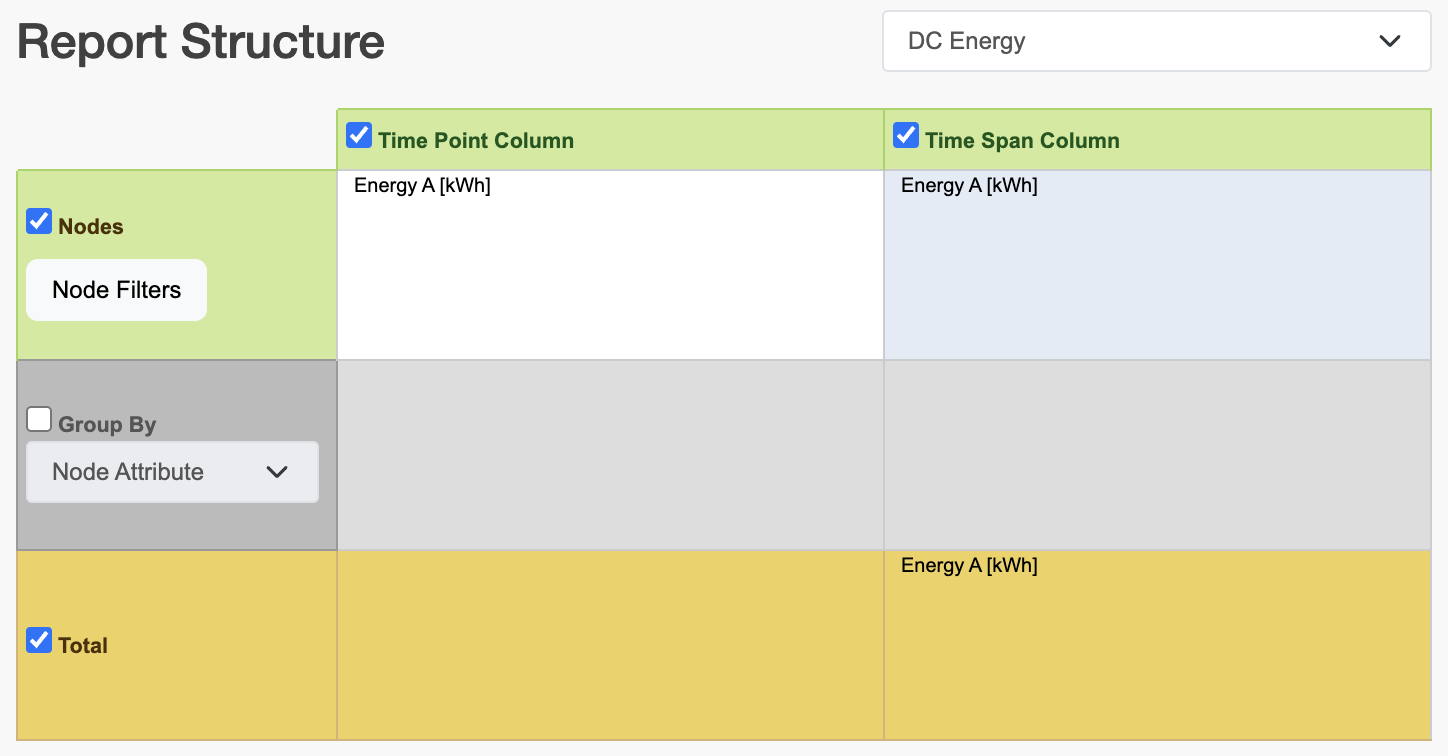

DC Energy

Provides:

• Energy by circuit

• Total energy for all circuits

Use Cases:

• Energy cost allocation

• Energy benchmarking

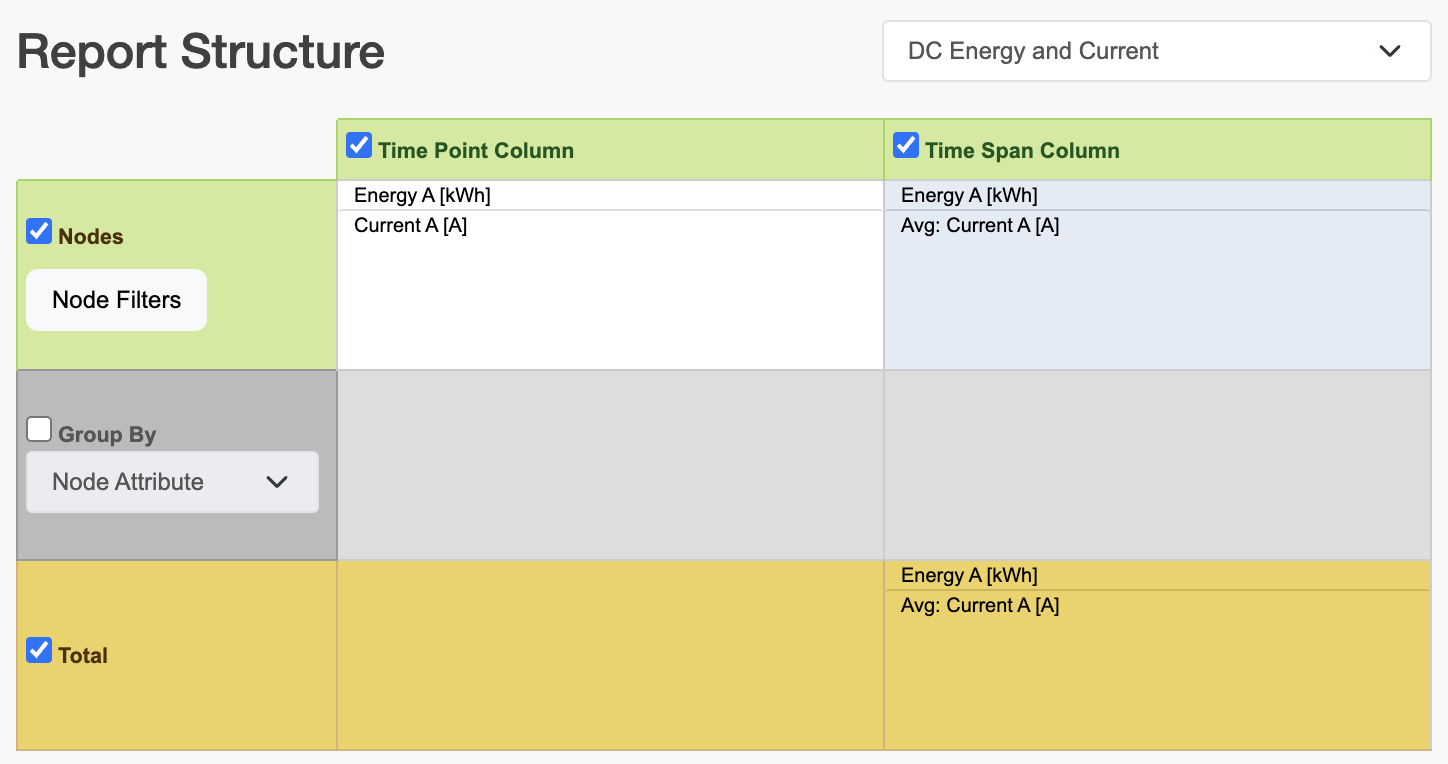

DC Energy and Current

Provides:

• Energy usage per circuit

• Average current per circuit

• Total energy usage

• Average total current

Use Cases:

• Energy cost allocation

• Energy benchmarking

Current Profile (Min/Max/Avg)

Provides:

• Average current draw per phase per circuit.

• Minimum current draw per phase per circuit.

• Maximum current draw per phase per circuit.

• Aggregate of Average current draw per phase.

Use Cases:

• Capacity planning

• Identifying idle power consumption (stranded)

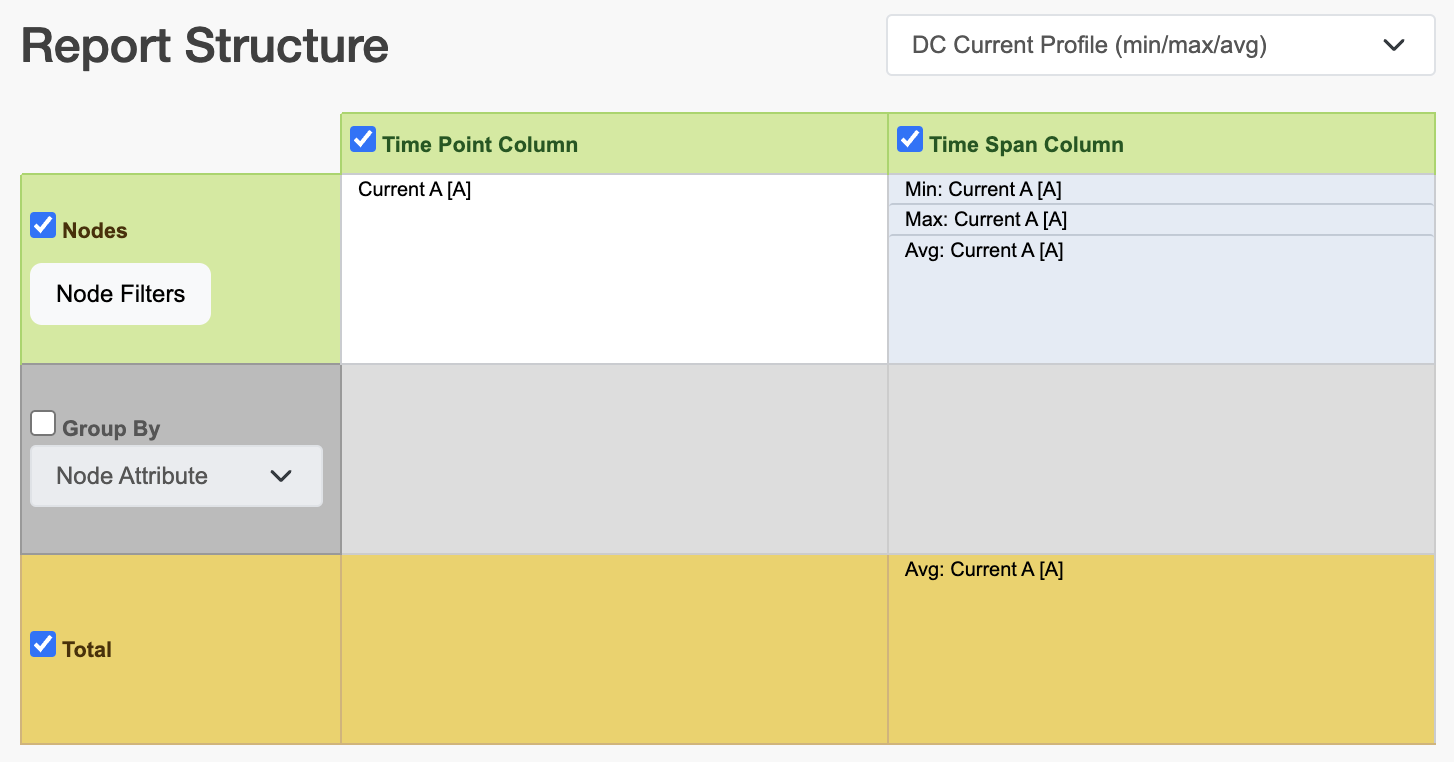

DC Current Profile (Min/Max/Avg)

Provides:

• Average current draw per phase per circuit.

• Minimum current draw per phase per circuit.

• Maximum current draw per phase per circuit.

• Aggregate total Average, Min, Max current draw.

Use Cases:

• Capacity planning

• Identifying idle power consumption (stranded)

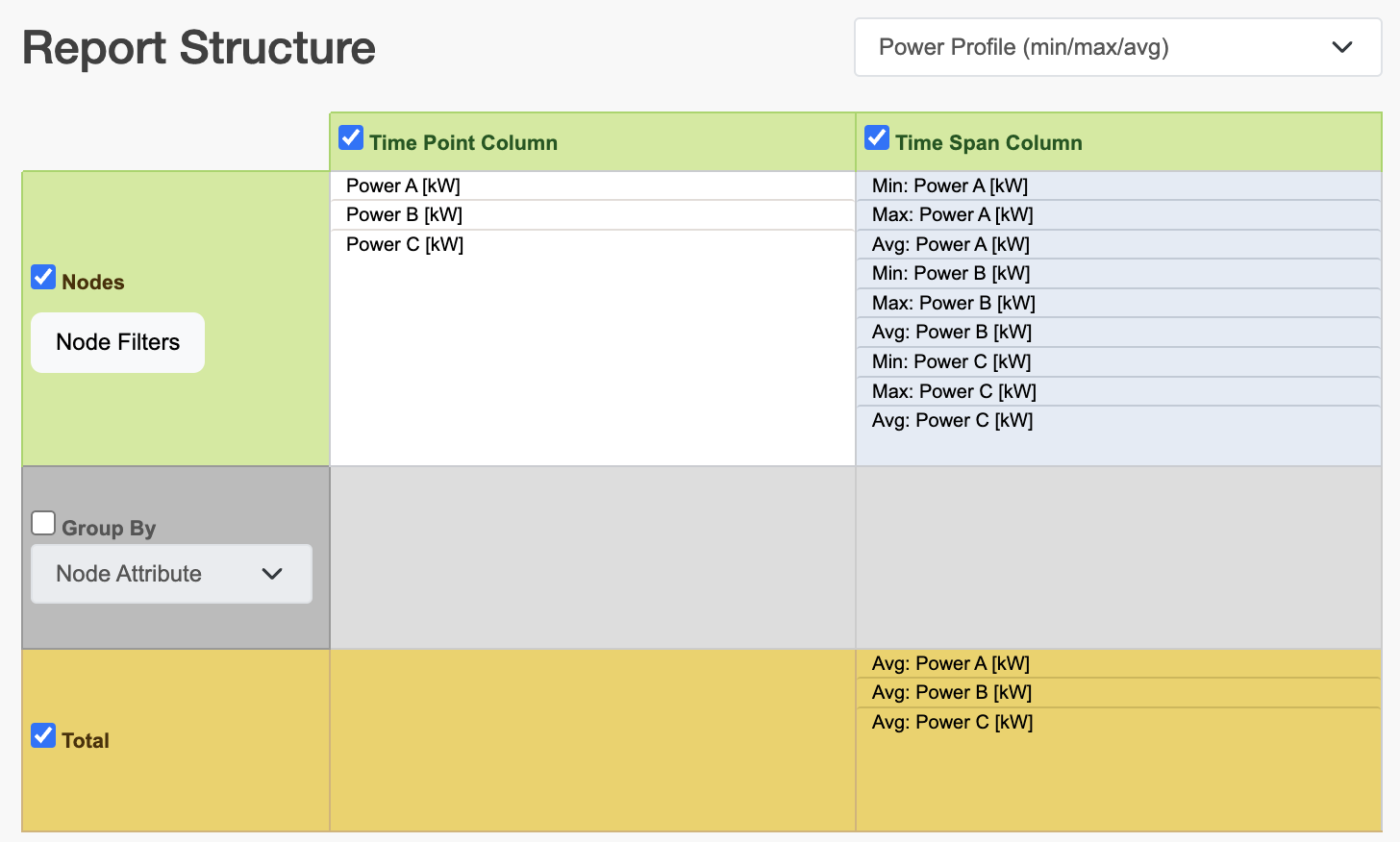

Power Profile (Min/Max/Avg)

Provides:

• Average demand (Watts) per phase per circuit.

• Minimum demand (Watts) per phase per circuit.

• Maximum demand (Watts) per phase per circuit.

• Aggregate Average demand per phase.

Use Cases:

• Capacity planning

• Identifying idle power consumption (stranded)

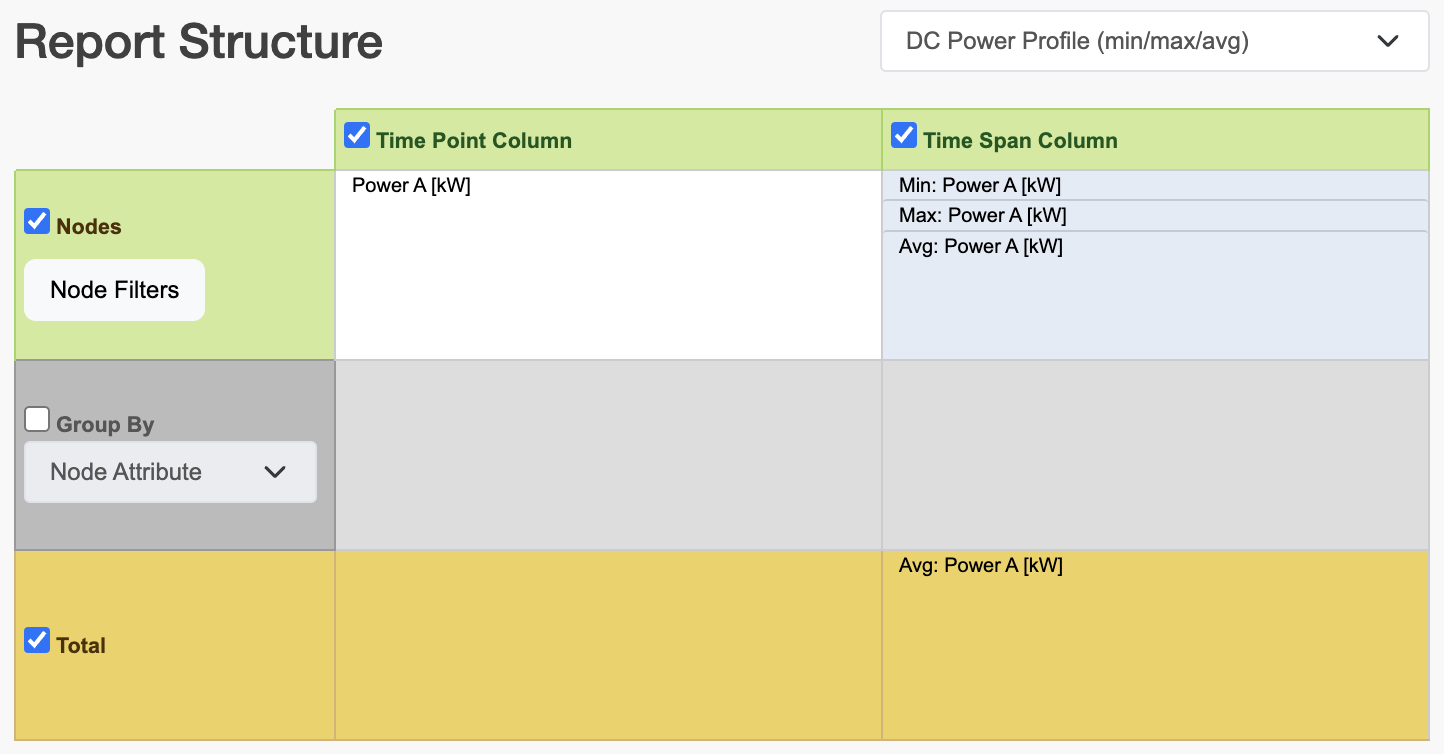

DC Power Profile (Min/Max/Avg)

Provides:

• Average demand (Watts) per circuit.

• Minimum demand (Watts) per circuit.

• Maximum demand (Watts) per circuit.

• Aggregate Average demand.

Use Cases:

• Capacity planning

• Identifying idle power consumption (stranded)

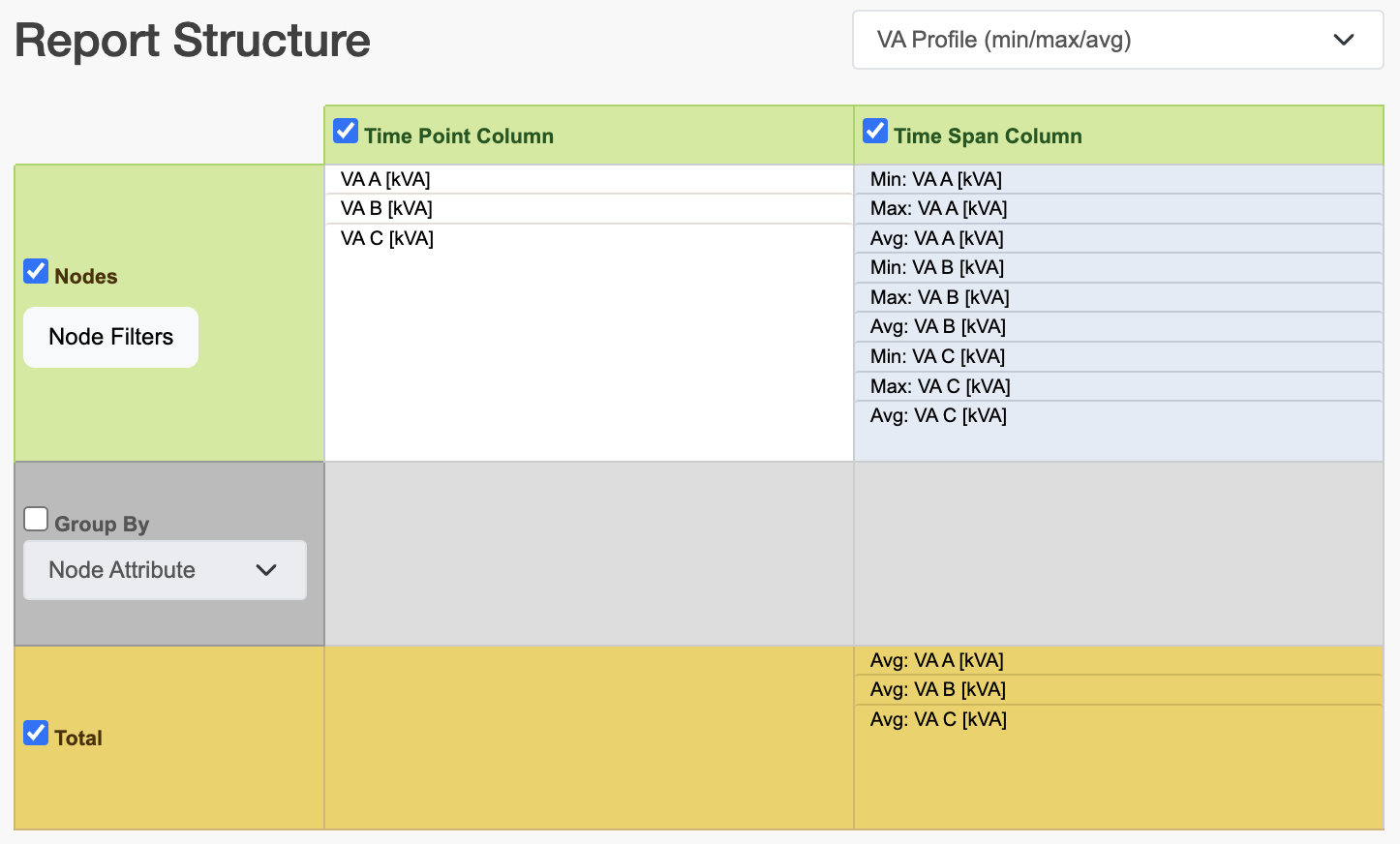

VA Profile (Min/Max/Avg)

Provides:

• Average, minimum and Maximum apparent power (VA) per phase per circuit.

• Minimum apparent power (VA) per phase per circuit.

• Maximum apparent power (VA) per phase per circuit.

• Aggregate average apparent power (VA) per phase.

Use Cases:

• Capacity planning

• Identifying idle power consumption ( stranded )
