BACnet - Basic Data Retrieval using YABE

Prerequisites

• EG4 Ethernet Gateway licensed and configured for BACnet

• E302 Environmental node reporting to the EG4

• YABE (https://sourceforge.net/projects/yetanotherbacnetexplorer/ )

Gateway configuration

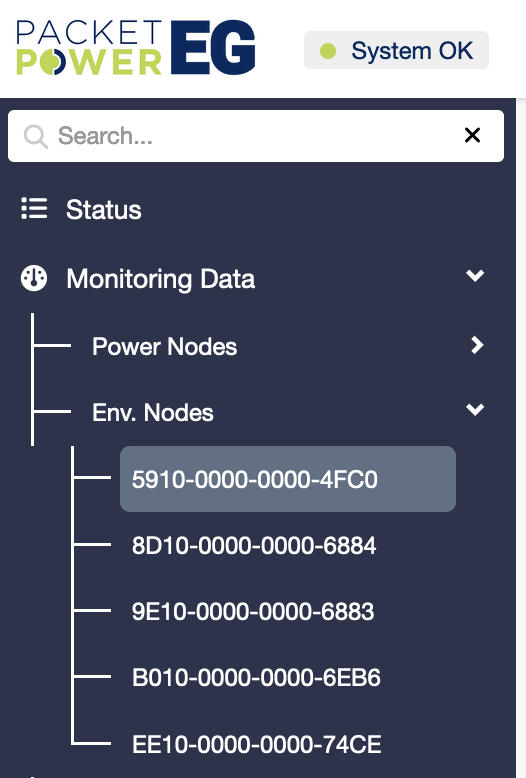

Verify Node is active and reporting Data.

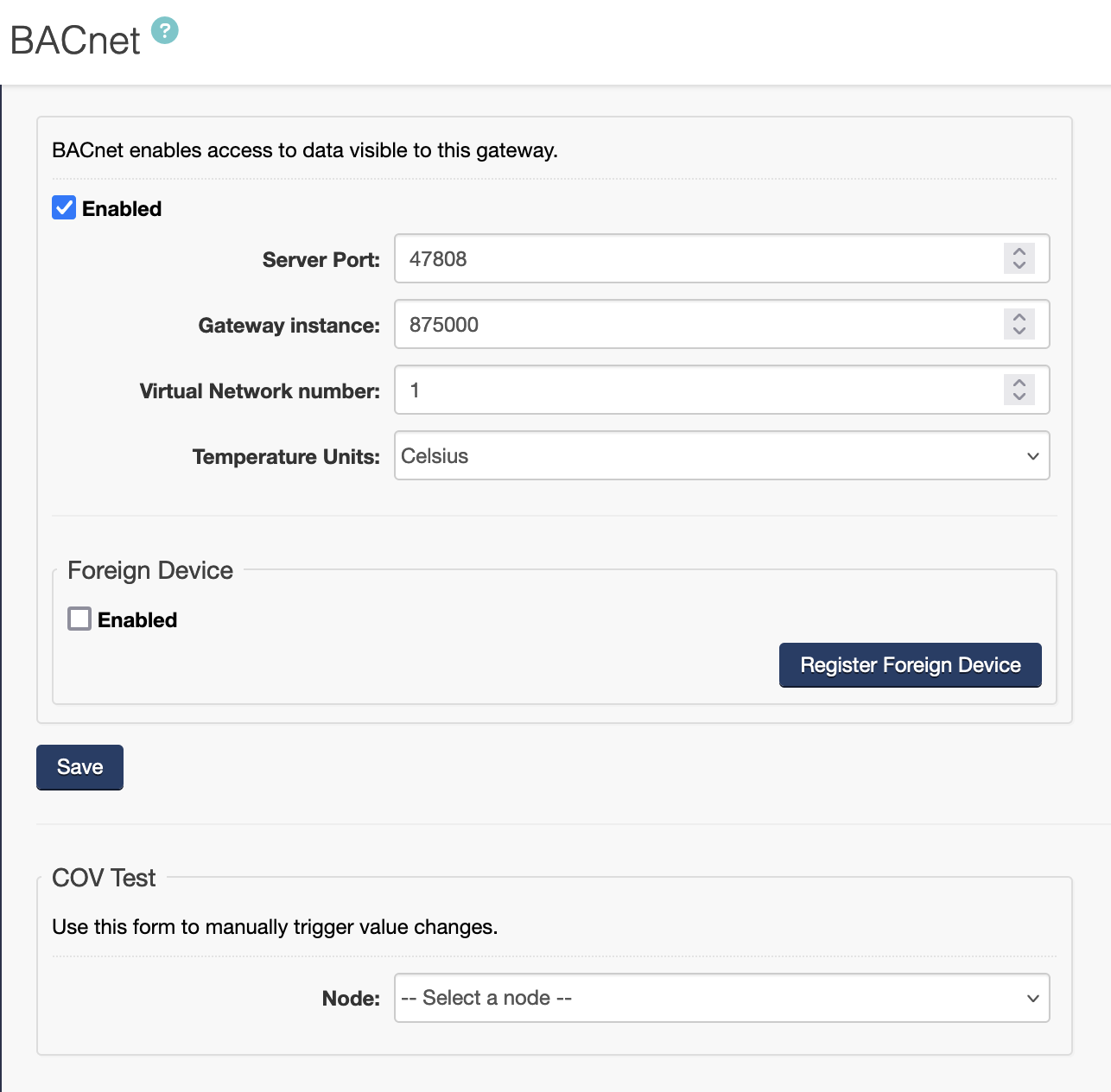

Verify your BACnet Configuration under Data Destinations → BACnet

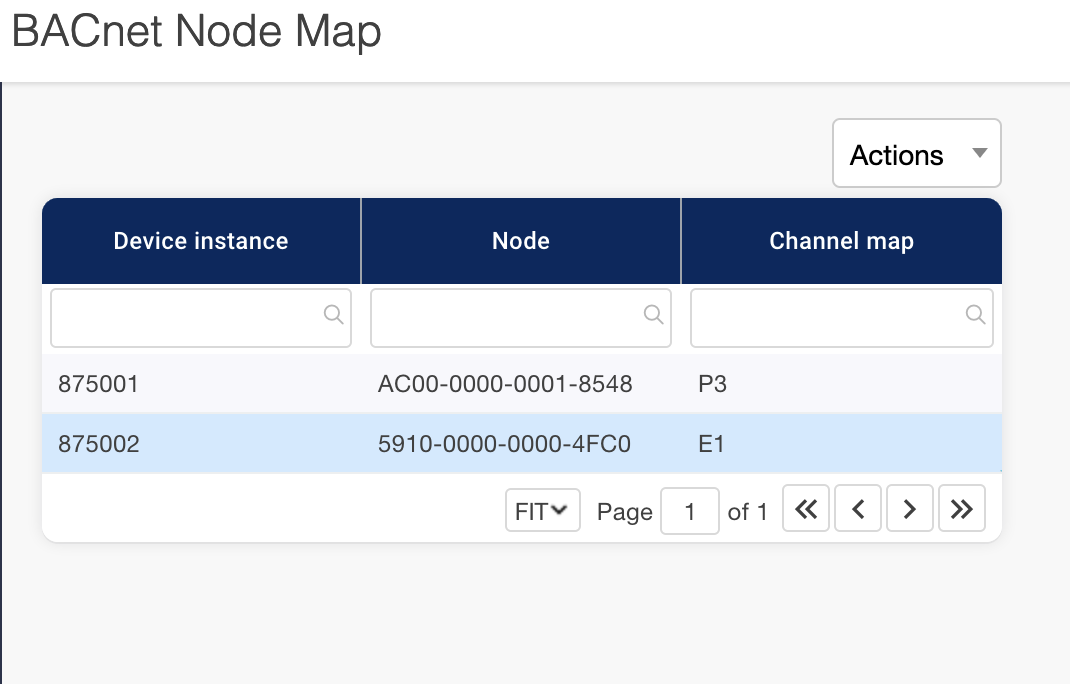

Verify your BACnet node mapping under Data Destinations → BACnet → Nodes

YABE test

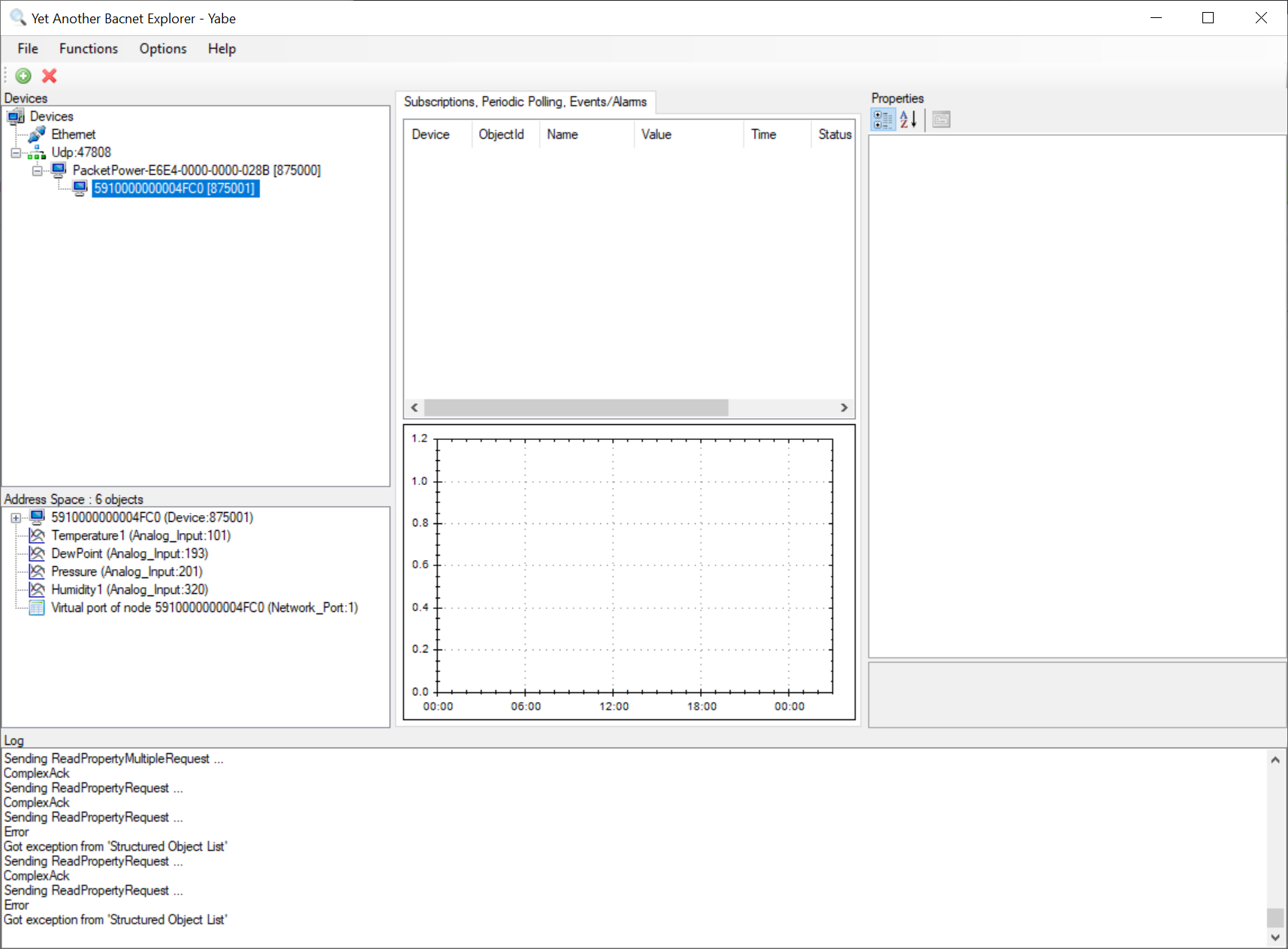

Install Yabe and issue a WhoIs request on the same network as the gateway. The gateway and the virtual device corresponding to the monitoring node should be detected. Click on the device to display all readings mapped for that device.
