Gateway Models

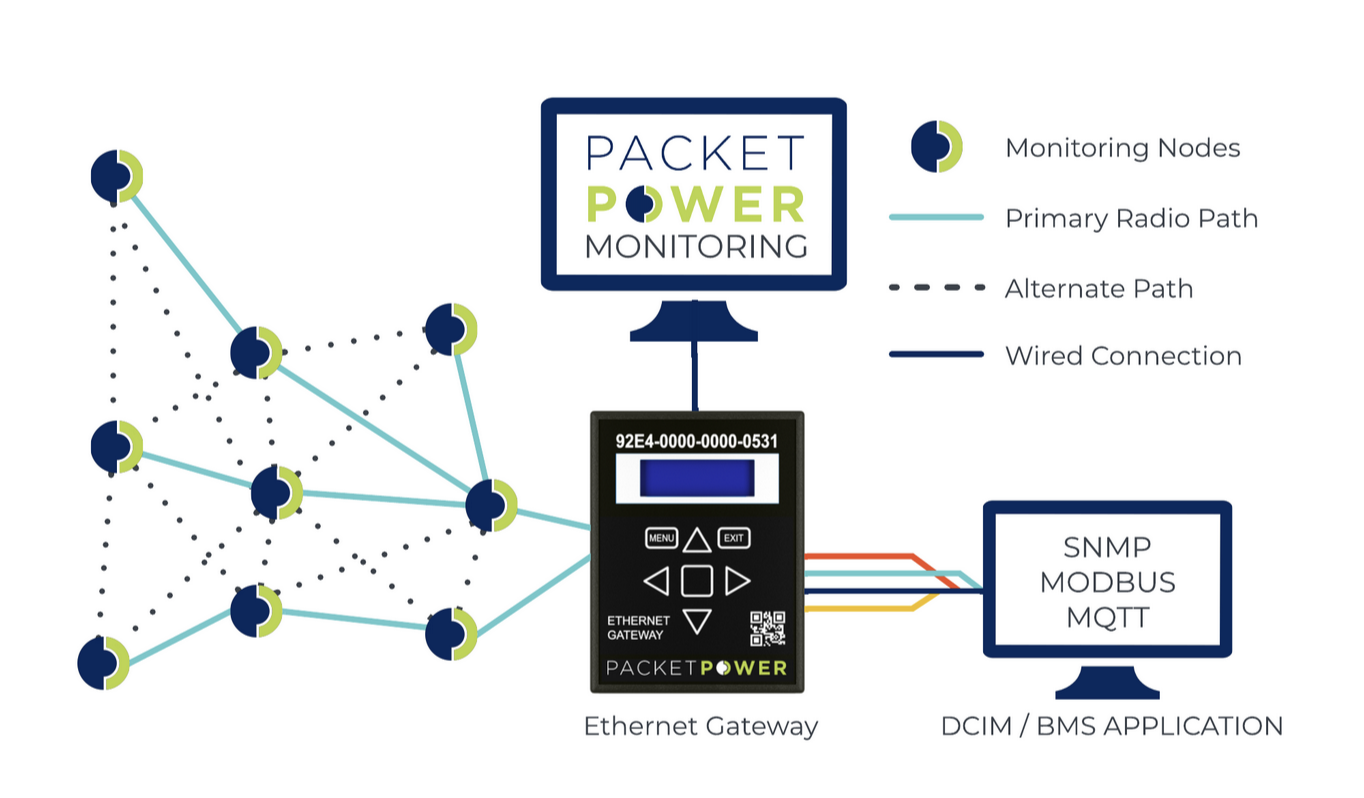

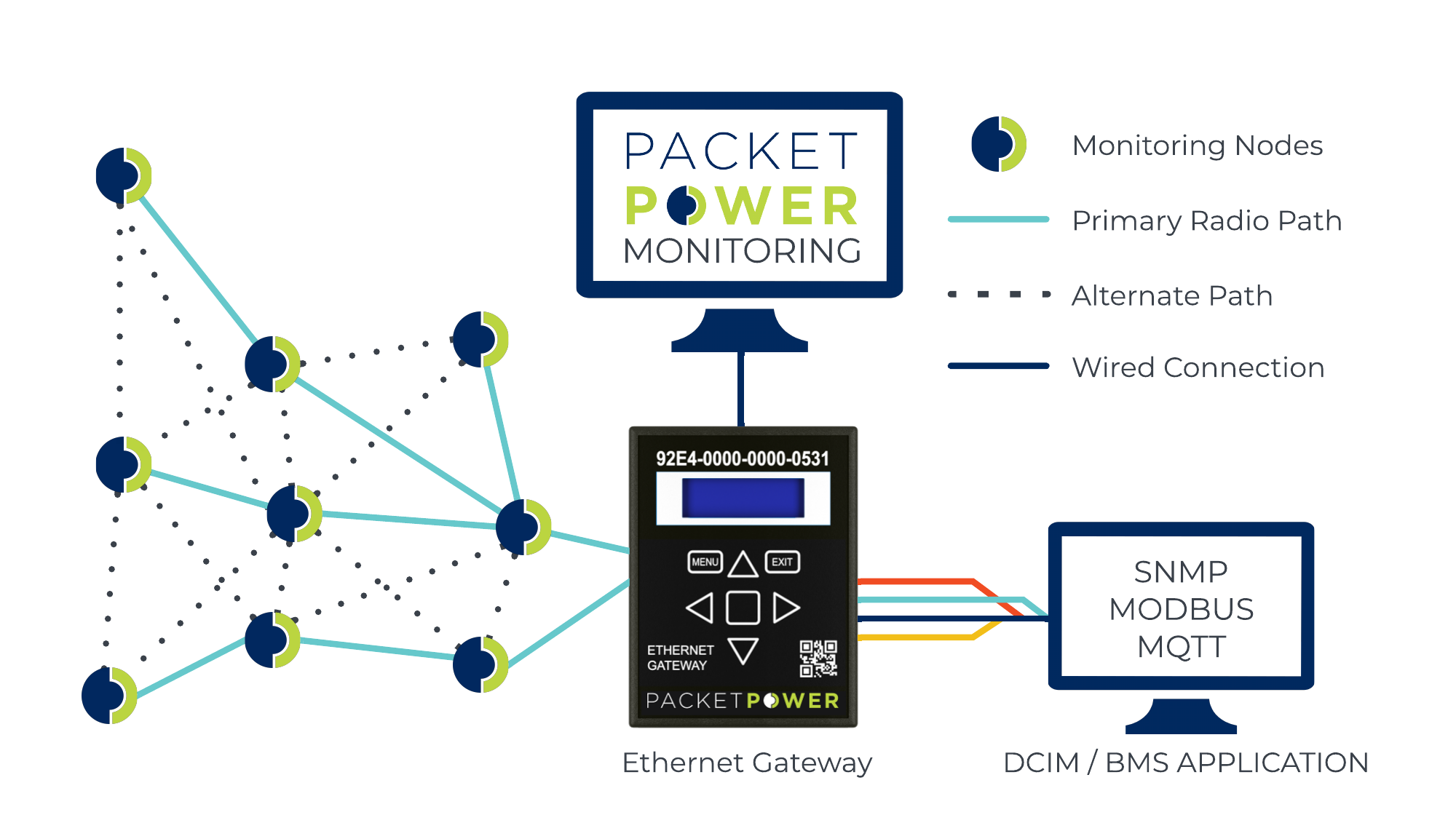

Packet Power Gateways support SNMP, Modbus TCP/IP, MQTT, BACnet/IP, and Ethernet/IP protocols. Models are available for small deployments with limited device counts.

Model #

EMX1

Additional Protocol2

Nodes Supported3

Master / Peer Config4

GW04-000E

(tick)

-

100

GW04-000L

(tick)

-

30

GW04-00BE

(tick)

BACnet/IP

100

(tick)

GW04-00BL

(tick)

BACnet/IP

30

(tick)

GW04-00EE

(tick)

Ethernet/IP

100

(tick)

GW04-00EL

(tick)

Ethernet/IP

30

(tick)

GW04-00ME

(tick)

Modbus TCP/IP

100

(tick)

GW04-00ML

(tick)

Modbus TCP/IP

30

(tick)

GW04-00QE

(tick)

MQTT

100

(tick)

GW04-00QL

(tick)

MQTT

30

(tick)

GW04-00SE

(tick)

SNMP

100

(tick)

GW04-00SL

(tick)

SNMP

30

(tick)

Notes for Ethernet Gateways

  1. All Models support integration with Packet Powers EMX Energy Portal Monitoring Software.

  1. Models with additional protocol integration also communicate to EMX simultaneously.

  2. Models ending in “L” provide information on up to 30 Packet Power wireless monitors (power and environmental units combines); models ending in “E” provide information on up to 100 monitors per gateway for optimal network performance.

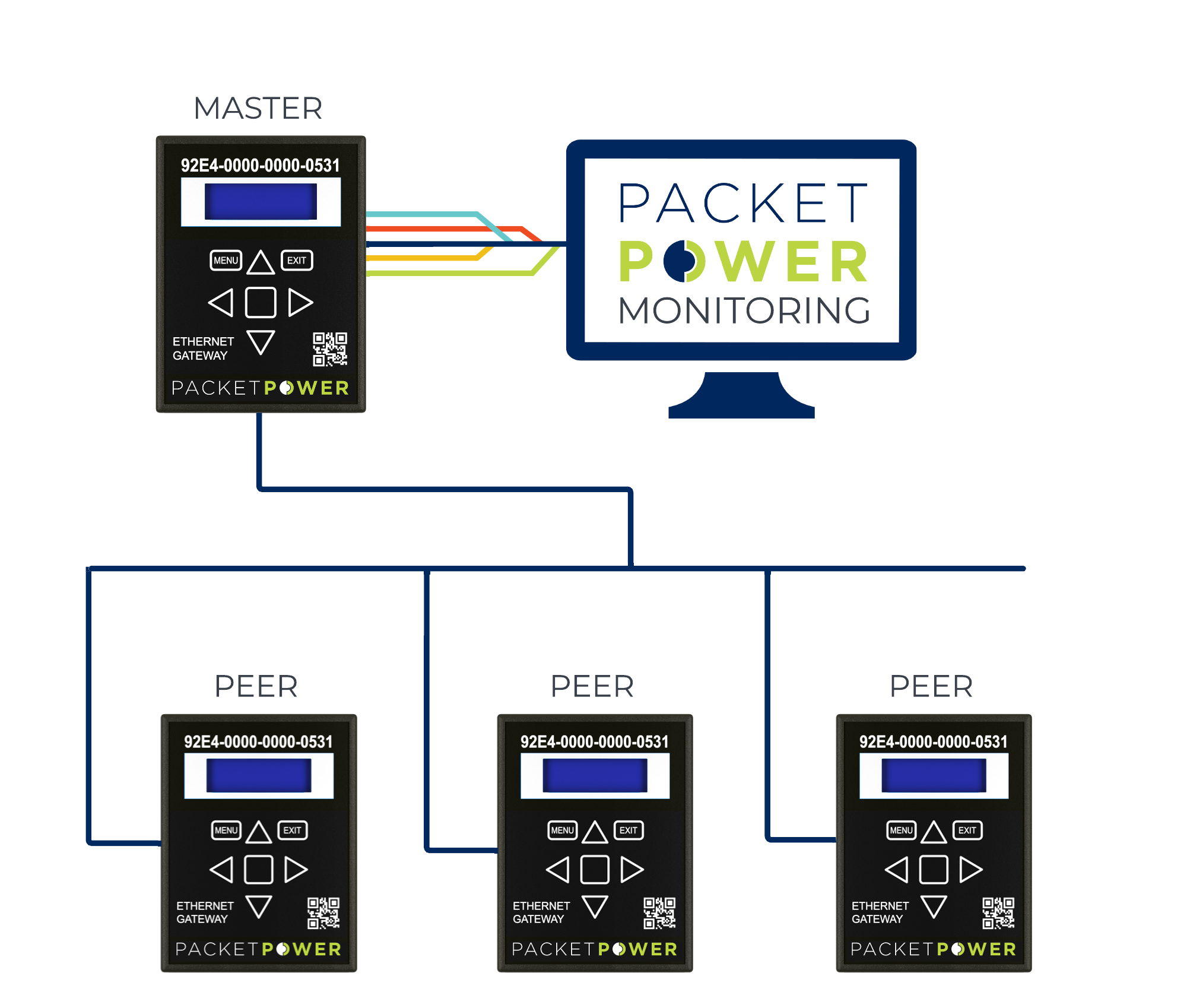

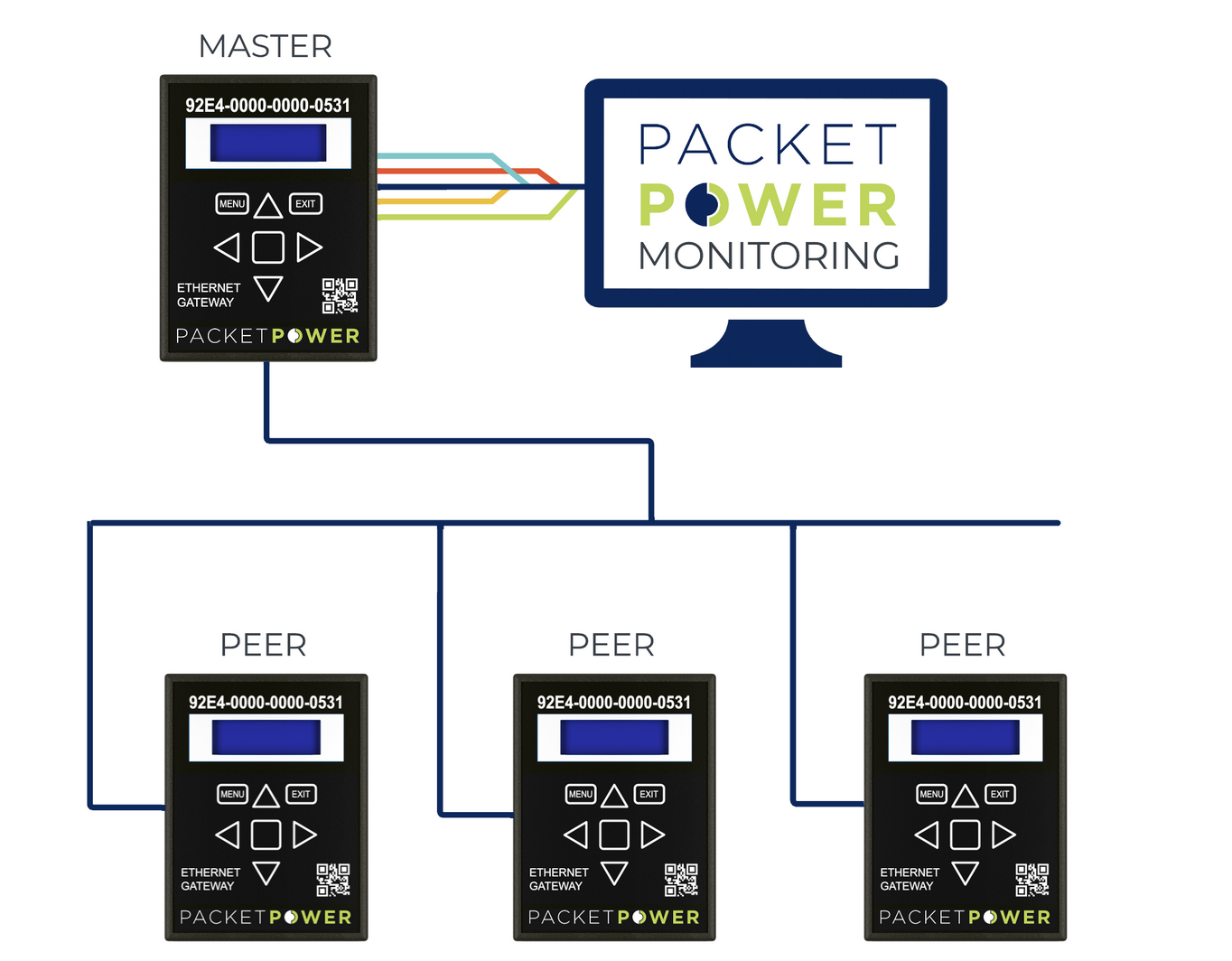

  3. Master/Peer configuration is used to allow a DCIM or BMS application to communicate with only one gateway (the master) that is able to provide all data from the other gateways in a location (it’s peers).
