Liebert (Vertiv) PDUs (Power Strips)

Supported Devices

MPHB1123
Other Liebert MPH PDUs should also work

Required WNC Firmware

36.14 or newer

Manufacturers documentation

This site is not intended to provide a full guide to the management interface on Liebert (Vertiv) devices. The following resources will be useful for the WNC configuration.

Vertiv™ MPH2™ MPHB1625 Product Page

Vertiv™ MPH2™ Rack PDUInstaller/UserGuide

Vertiv™ RPC2™ Communications Module User Manual

Required PDU configuration

The device must be configured before connecting the WNC. Consult the manufacturers guide on the default network settings. You can either manually set these back to defaults, or hard reset the device. To reset to the device:

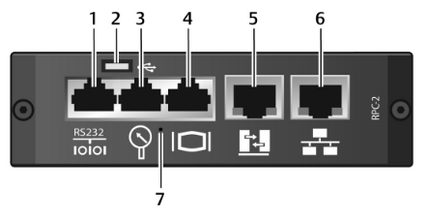

Use a paperclip or other tool to press the reset button (7, in the image below)
Press the reset button five times, one second apart.
After a short time, the network port status light turns off briefly, indicating the module is restarting

Refer to the Vertiv™ RPC2™ Communications Module User Manual (link above) for more information.

WNC Connections

Connect one end of an Ethernet cable to the NET port (6) on the PDU control panel.

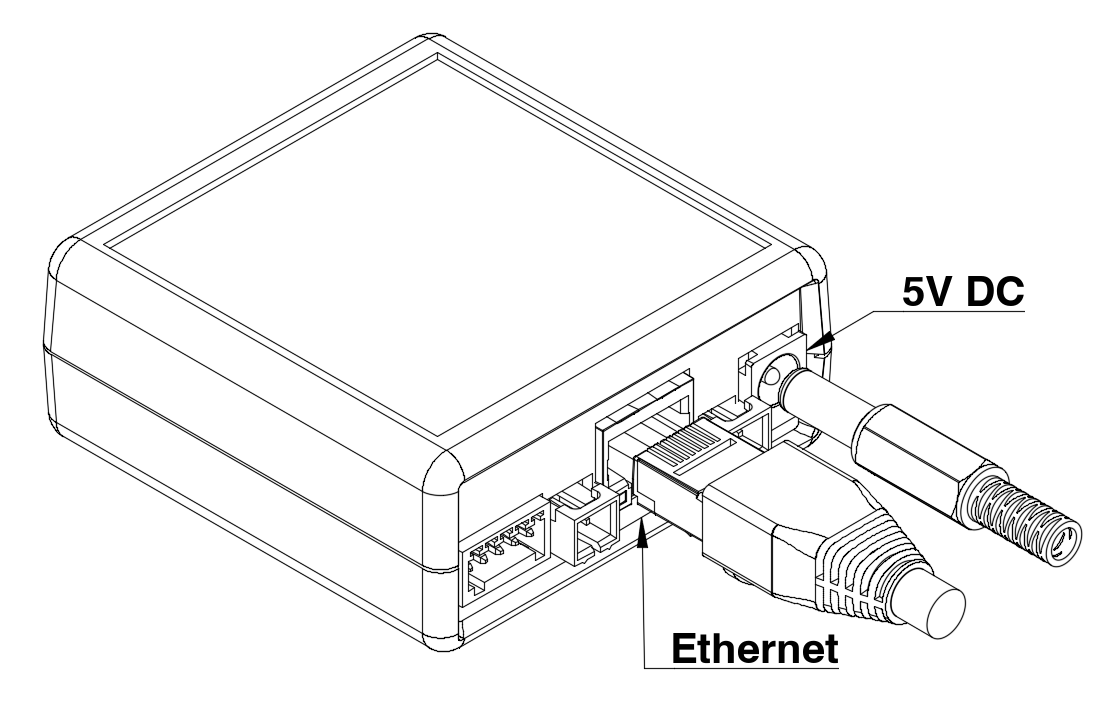

On the rear of the WNC, connect the other end of the Ethernet cable and the 5V DC power supply barrel plug.

SNMP Readings Reported

SNMP OID	Channel	Description
1.3.6.1.4.1.476.1.42.3.8.30.40.1.19.1.1.1	Voltage A	PDU phase A voltage
1.3.6.1.4.1.476.1.42.3.8.30.40.1.19.1.1.2	Voltage B	PDU phase B voltage
1.3.6.1.4.1.476.1.42.3.8.30.40.1.19.1.1.3	Voltage C	PDU phase C voltage
1.3.6.1.4.1.476.1.42.3.8.30.40.1.22.1.1.1	Current A	PDU phase A current
1.3.6.1.4.1.476.1.42.3.8.30.40.1.22.1.1.2	Current B	PDU phase B current
1.3.6.1.4.1.476.1.42.3.8.30.40.1.22.1.1.3	Current C	PDU phase C current
1.3.6.1.4.1.476.1.42.3.8.30.40.1.63.1.1.1	Power A	PDU phase A power
1.3.6.1.4.1.476.1.42.3.8.30.40.1.63.1.1.2	Power B	PDU phase B power
1.3.6.1.4.1.476.1.42.3.8.30.40.1.63.1.1.3	Power C	PDU phase C power
1.3.6.1.4.1.476.1.42.3.8.30.20.1.50.1.1	Total Energy	PDU total energy
