Monitored Object Metrics
Metrics are parameters (readings) obtained from a monitoring node responsible for collecting them.

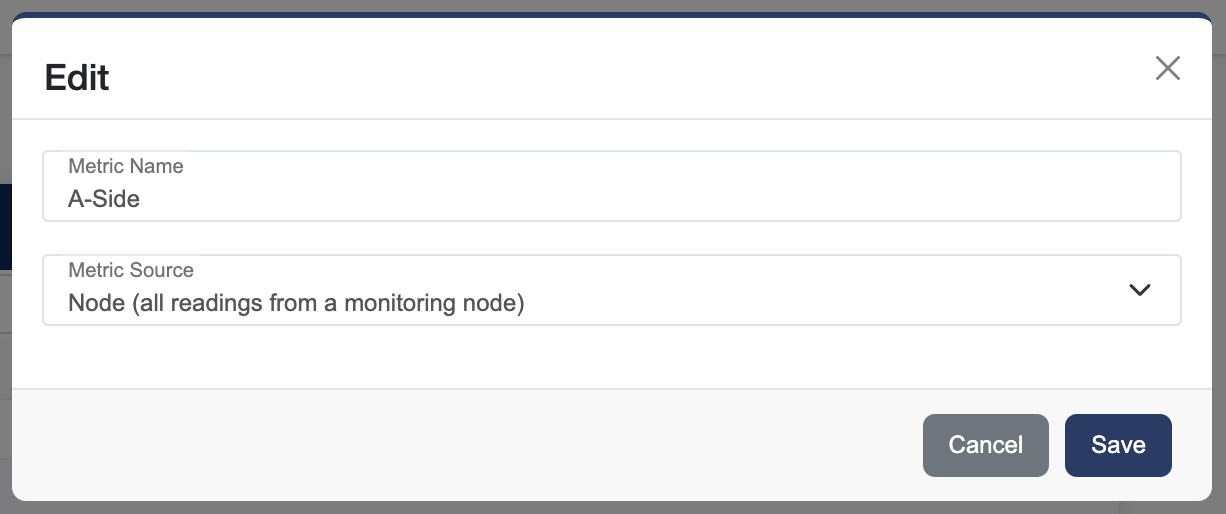

Node Metric Source
Examples:
LoadA: total load on the A-side of a cabinet (of FeedA.Current, FeedA.Power etc.)
LoadB: total load on the B-side of a cabinet
![Screenshot 2024-04-16 at 1.09.27 PM.png](../../__attachments/3045064709/Screenshot%202024-04-16%20at%201.09.27%20PM.png?inst-v=7e17f21b-2642-4004-aeb2-9e5acb56eecc)

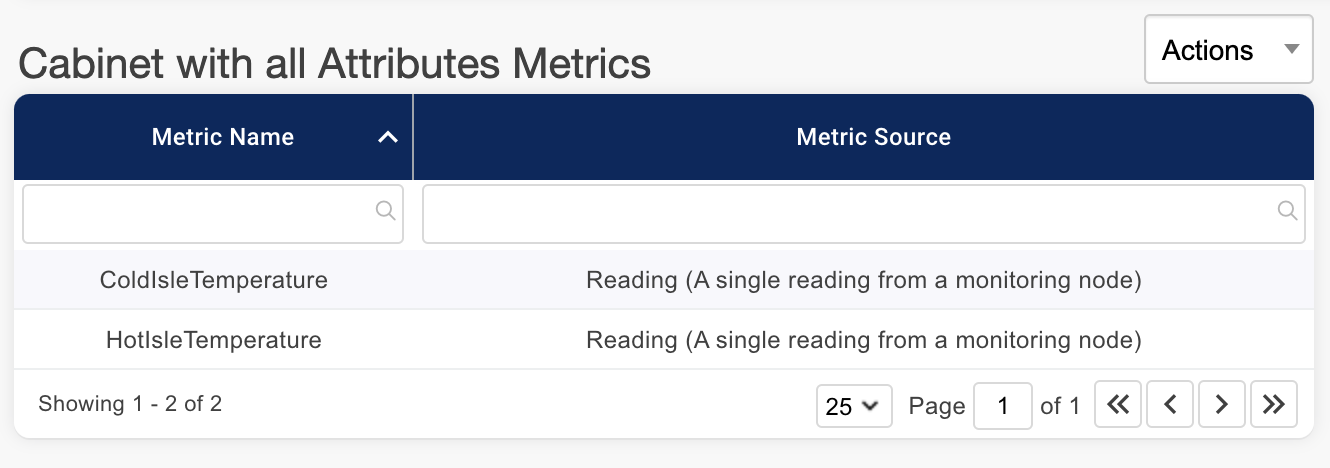

Reading Metric Source
Metrics are linked to a specific EMX node ID and an EMX reading channel name that is expected to provide their value.
Examples:
ColdIsleTemperature:
{"guid": "5910000000004FC0", "channel": "Temperature1"}
![Screenshot 2024-04-16 at 1.07.10 PM.png](../../__attachments/3045064709/Screenshot%202024-04-16%20at%201.07.10%20PM.png?inst-v=7e17f21b-2642-4004-aeb2-9e5acb56eecc)

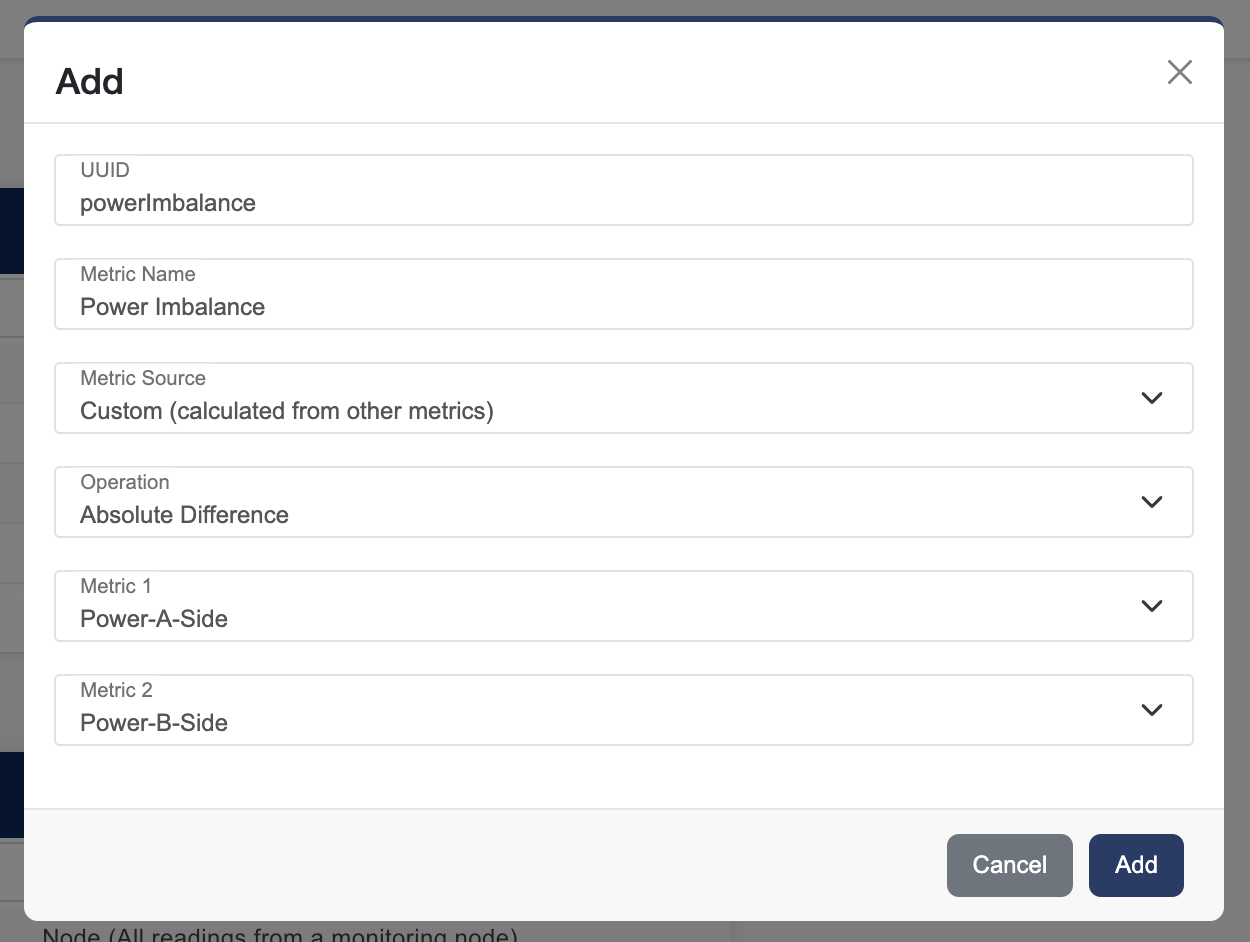

Custom Metric Source
Metrics can also be derived from other metrics, e.g. by adding or subtracting other metrics.
Example:
PowerImbalance: Calculated as the difference between LoadA and LoadB metrics of a cabinet.
![Screenshot 2024-04-16 at 12.00.56 PM.png](../../__attachments/3045064709/Screenshot%202024-04-16%20at%2012.00.56%20PM.png?inst-v=7e17f21b-2642-4004-aeb2-9e5acb56eecc)
