Measurement
|
Measurements |
V, A, Ah, VA, W, Wh, Hz, PF |
|---|---|
|
Accuracy |
± 1.0% |
|
Input Voltage |
S models: 100 - 277 AC R models: 100- 480V AC |
|
Current Range |
Up to 100 |
|
Circuit Types |
Single- and three-phase |
|
Frequency |
50/60 Hz |
Communications
|
Operating Frequency |
860 to 930 MHz and 2.4 GHz (frequencies vary by region) |
|---|---|
|
Wireless Network Protocol |
load-balancing mesh |
|
Wired Network Protocols |
HTIPS to Packet Power EMX running locally or as cloud service; SNMP V1V2c/V3; Modbus, TCP/IP; Ethernet/IP; BACnet/iP |
|
Firmware Updates |
Wireless |
|
Typical Transmission Range |
10 to 30 meters indoors between any two devices in mesh network. |
|
Antenna |
Fully enclosed, fixed configuration. |
|
Monitoring Unit to Gateway Ratio |
100 cables per gateway with unlimited gateways per site. |
|
Multi-Site Support |
Yes |
|
Encryption |
HTTPS |
|
Local Display |
Volts, Amps, and Watts |
Environmental and Mechanical
|
Operating Environment |
O' to 75°C (32° to 167°F):5% to 95% non-condensing |
|---|---|
|
Water and Dust Resistance |
Not Rated |
|
Size and Weight ( for standard cable length ) |
|
|
S models under 164 |
15O cm (60 in); 0.45 kg (1.1b) |
|
S models 164 and above |
120 cm (48 in): 0.75 - 10 kg (1.5 - 2 lbs) |
|
R models |
120 cm (48 in); 1.5 - 3.0 kg (3.5 - 7 lbs) |
|
Power usage |
0.6W |
|
Certifications |
UL/ANSI 61010-1; CAN/CSA-C22.2 No. 61010-1 (ETL); FCC Cass B; CE (IEC/EN 61010-1:2001. ETSI EN 300 220-2, ETSI EN 301 489-3, IEC/EN 61326-1); ICASA; AS/NZA 4268:2008 |
Models
|
Voltage |
Amperage |
|---|---|
|
1Ø 120V AC |
10 amps or under |
|
1Ø 120V AC |
15 amps or under |
|
1Ø 200 to 240V AC |
15 amps or under |
|
1Ø 200 to 240V AC |
16 amps or under |
|
1Ø 120V AC |
20 amps |
|
1Ø 200 to 240V AC |
20 amps |
|
1Ø 200 to 240V AC |
20 amps |
|
1Ø 120V AC |
30 amps |
|
1Ø 208V AC |
30 amps |
|
1Ø 200 to 240V AC |
32 amps |
|
Voltage |
Amperage |
|---|---|
|
1Ø 120V AC |
50 amps |
|
1Ø 208 to 240V AC |
50 amps |
|
1Ø 200 to 240V AC |
60 amps |
|
1Ø 240V AC |
63 amps |
|
3Ø Wye 120V/208V AC |
20 amps |
|
3Ø Wye 120V/208V AC |
30 amps |
|
3Ø Wye 120V/208V AC |
50 amps |
|
3Ø Wye 120V/208V AC |
60 amps |
|
3Ø Delta 120V/208V AC |
30 amps |
|
3Ø Delta 120V/208V AC |
60 amps |
|
3Ø Wye either 240/415V AC or 200/346V AC |
16 amps |
|
3Ø Wye either 240/415V AC or 200/346V AC |
32 amps |
|
3Ø Wye either 240/415V AC or 200/346V AC |
63 amps |
Connector Types
|
Model |
NEMA |
IEC |
Other |
|---|---|---|---|
|

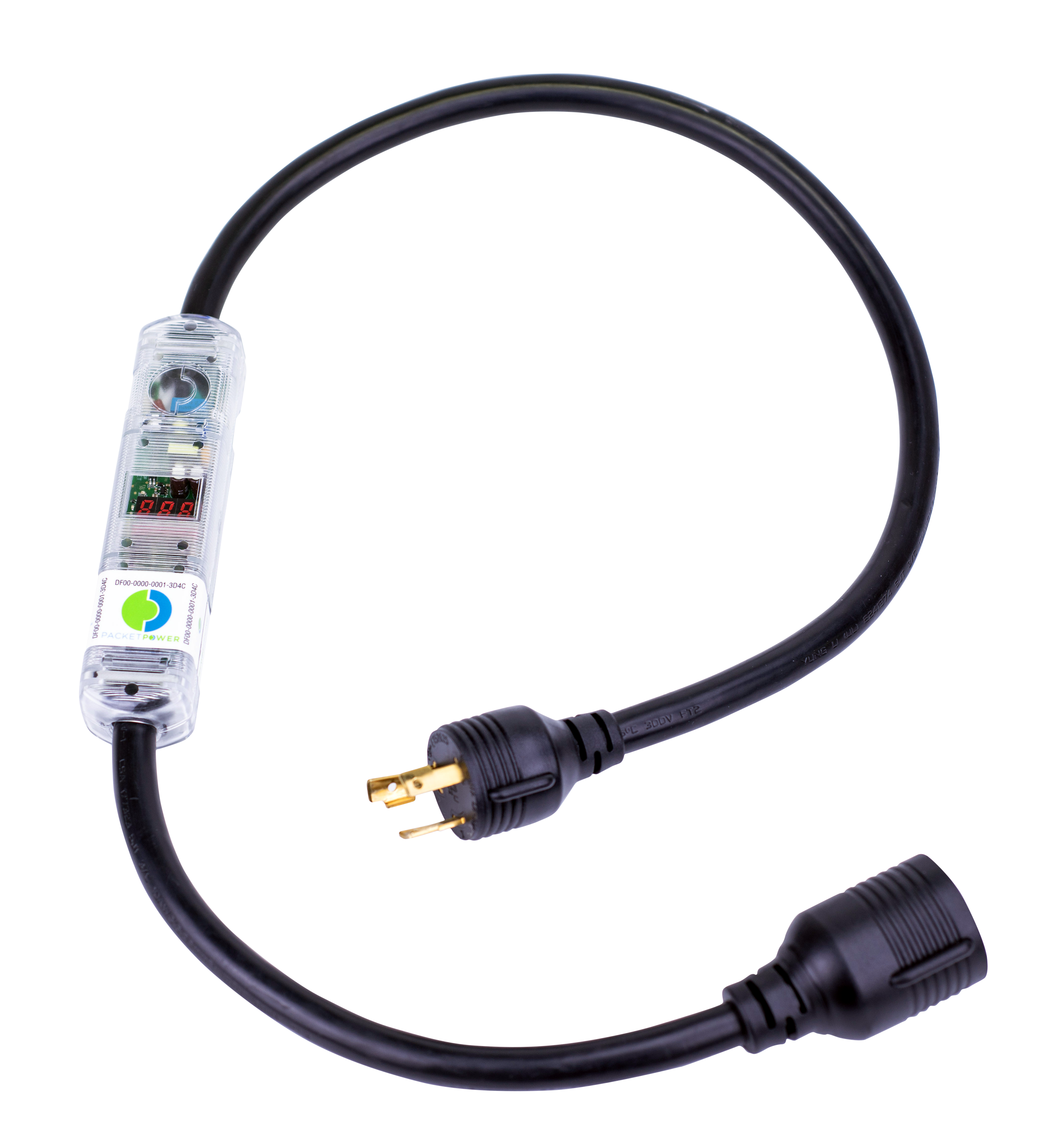

S (single-phase) |
5/15/L5-15, 5-20/L5-20, L5-30, 6-15/L6-15, 6-20/L6-20, L6-30, L7-15, L7-20, L7-30 |
60320 C13/C14, 60320 C19/20, 60309 2P+E 6h |
Schuko CEE7-7, AS/NZA 3112 2000, BS 1363A (UK), BS 546A (India, South Africa) |
|

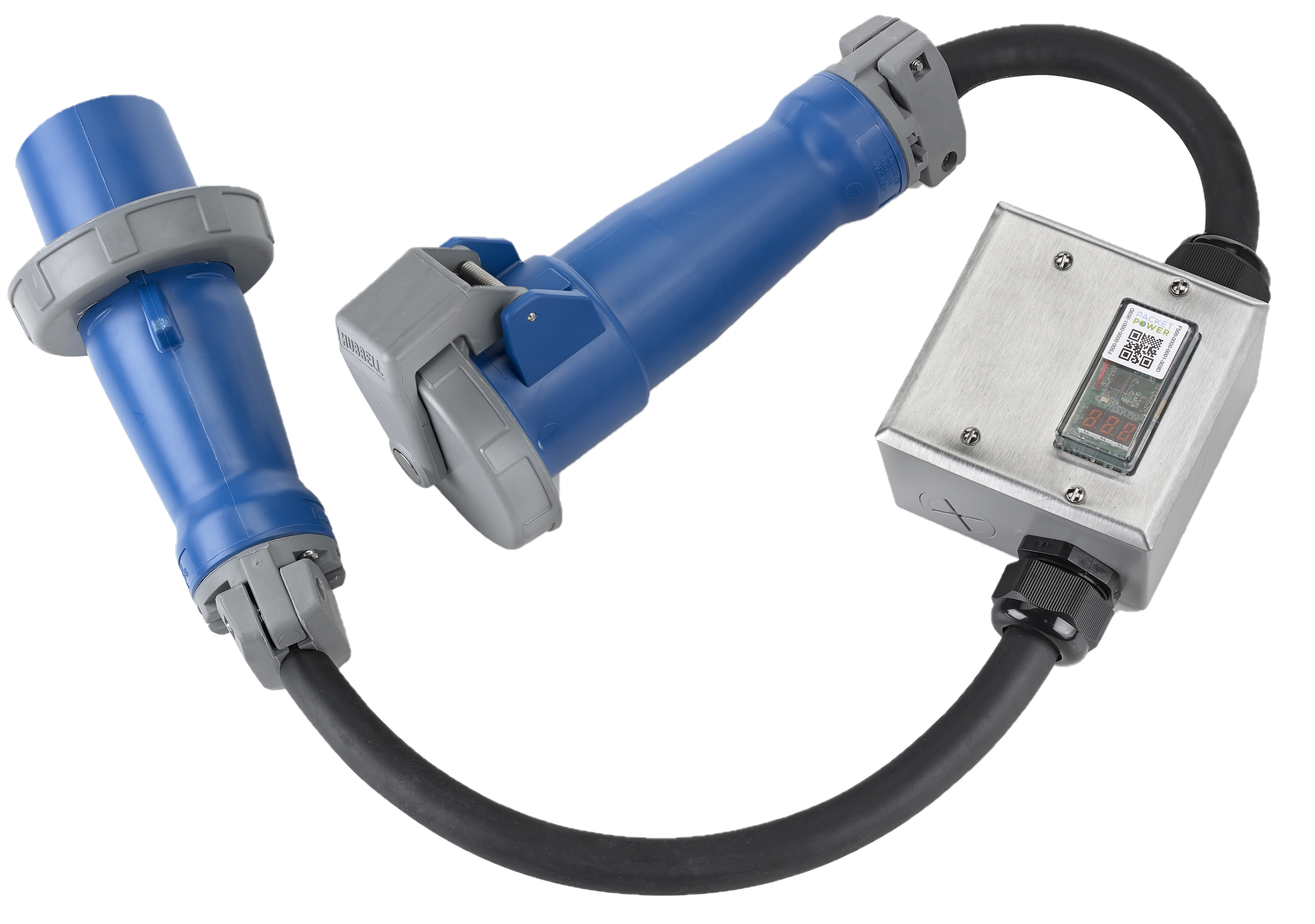

R (single-phase) |
|
60309 2P+E 6h, 360_6W |
CS8265/8264, 3720/3913, 3750/3933, 3720U-1/3913U-1,3720U-2/3913U-2, 9_23U2, 9_23U0, 9_33U0, 9_53U2, 9_63U2 |
|
R (split-phase) |
L14-20, L14-30, L14-50 |
|
|
|
R (three-phase Wye) |
L21-20, L21-30, L22-20, L22-30 |
60309 3P+N+E 6hr, 60309 3P+N+E 9hr, 60390 3P+N+E 6hr, 516_6W, 532_6W, 530_6W, 560_6W, 563_6W |
|
|
R(three-phase Delta) |
L-15-20, L15-30 |
420_9W, 430_9W, 460_9W, 420_7W, 430_7W, 460_7W |
CS8365/8364, Russell Stoll, IBM D/3760, 3934, 7428, 9_54U2, 9_64U2 |
Notes:
Custom connectors are available.
All cables also available in a whip format (no connectors).
“_” in a connector indicates available as P, C, or R: example 360_6W is available with 360P6W, 360C6W, or 360R6W
