Temperature Probe Kits
Temperature probes kits are pre-configured to make installation easy for E306 and E312 monitors, regardless of your rack configuration. Each kit contains probes of the proper length for monitoring the specified number of cabinets.
Kits are available for monitoring from one to six cabinets, with up to six probes per rack. Probes are labelled to indicate their length and location. Consult the diagrams below for your specific cabinet.
6 Probe Kits (E306 Monitor)

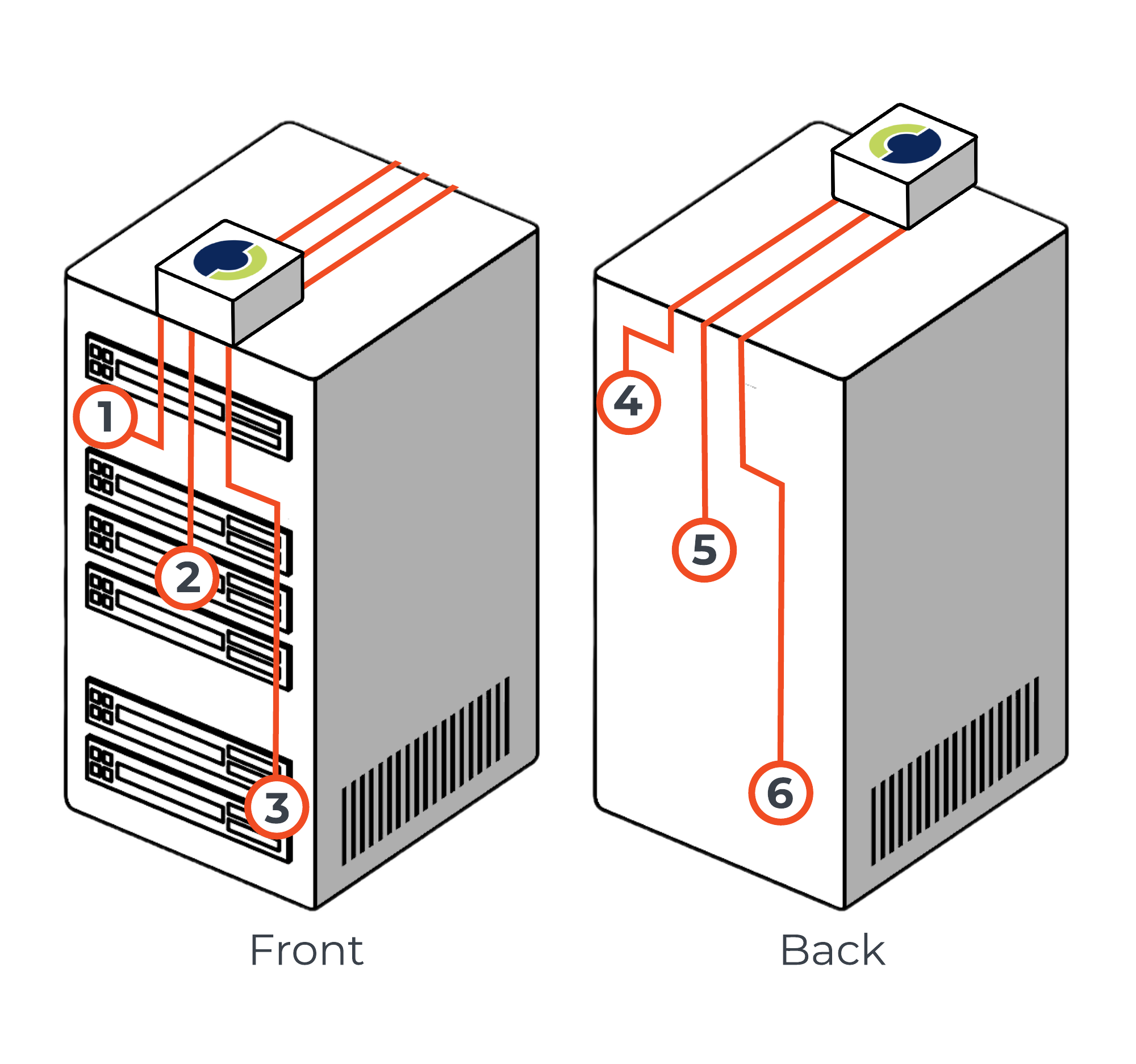

6 Probes per Rack 1 Rack
Kit: TP03-06x1
![](../../__attachments/2924544994/Screenshot%202024-08-23%20at%2010.56.29%E2%80%AFAM.png?inst-v=01775ae0-e217-4512-b14d-a4b0dd4465bb)

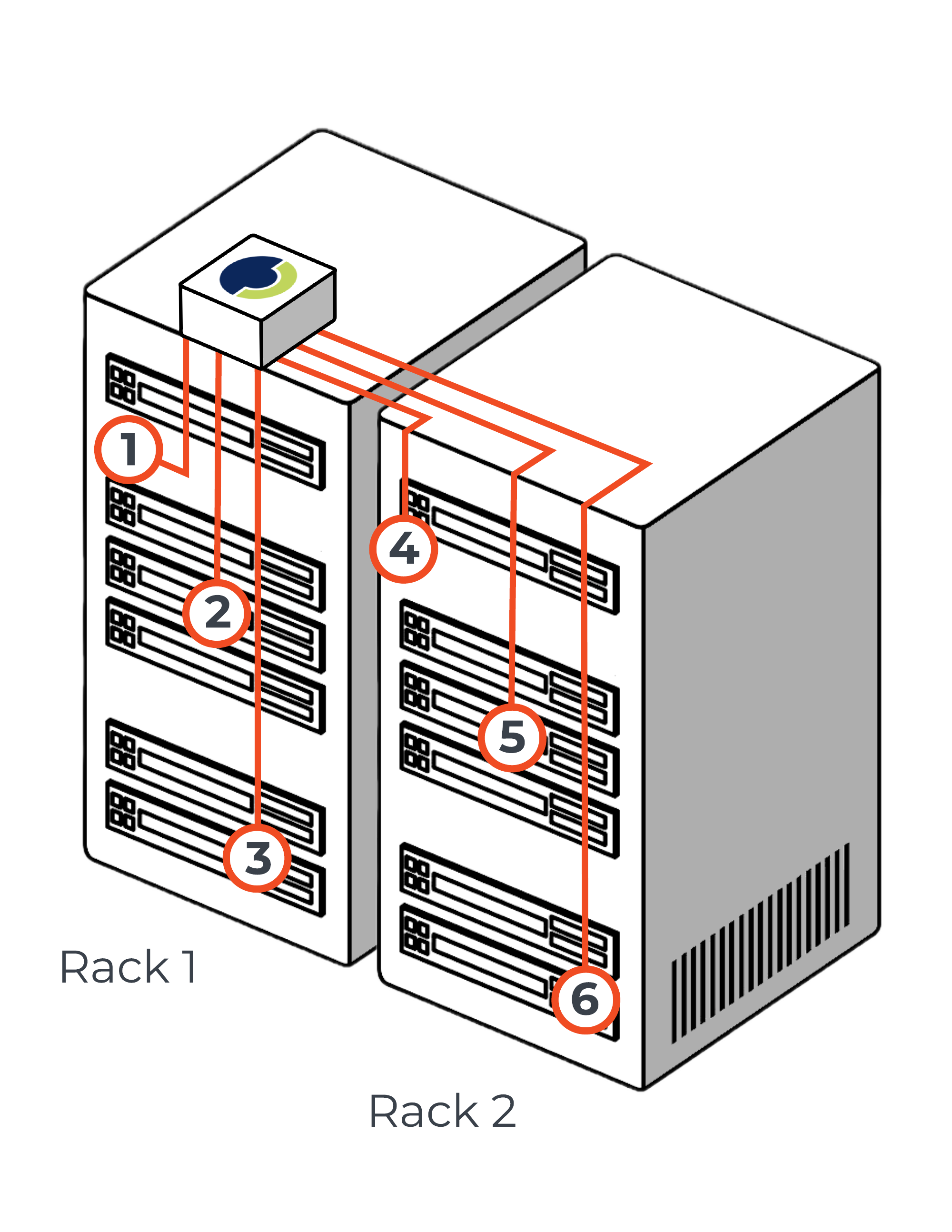

3 Probes per Rack 2 Racks
Kit: TP03-03x2
![](../../__attachments/2924544994/Screenshot%202024-08-23%20at%2010.57.16%E2%80%AFAM.png?inst-v=01775ae0-e217-4512-b14d-a4b0dd4465bb)

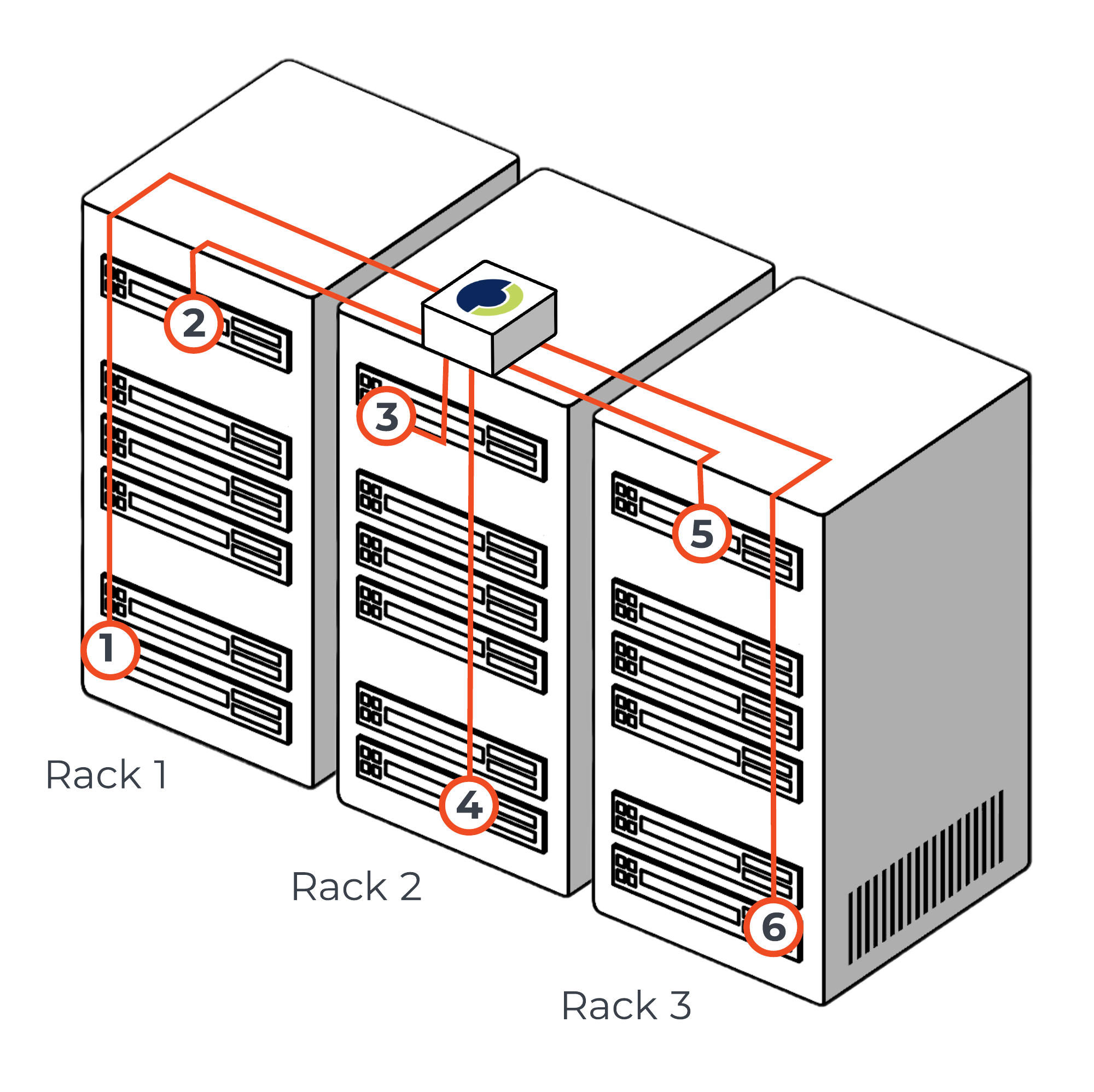

2 Probes Per Rack 3 Racks
Kit: TP03-02x3
![](../../__attachments/2924544994/Screenshot%202024-08-23%20at%2010.57.54%E2%80%AFAM.png?inst-v=01775ae0-e217-4512-b14d-a4b0dd4465bb)

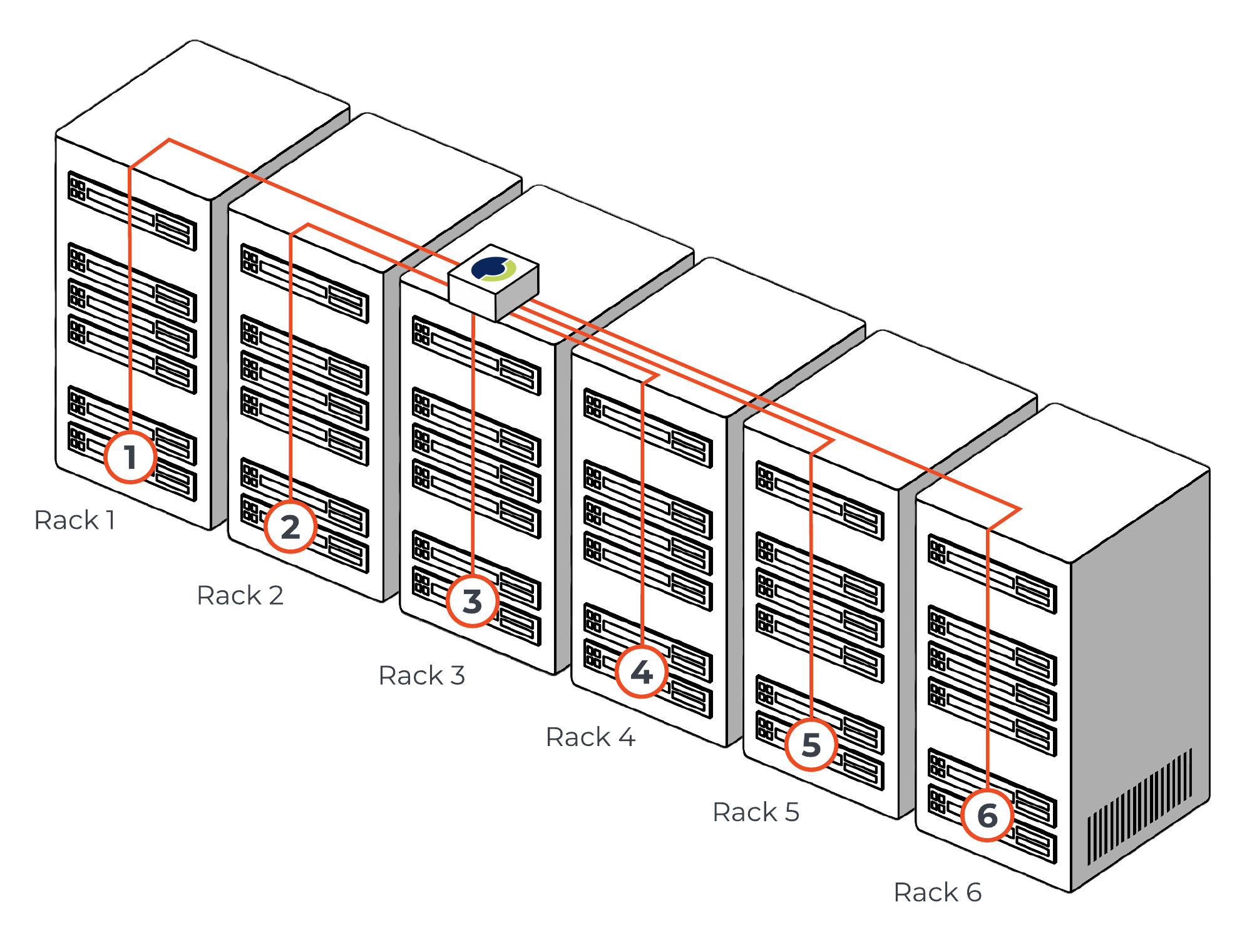

1 Probe per Rack 6 Racks
Kit: TP03-01x6
![](../../__attachments/2924544994/Screenshot%202024-08-23%20at%2010.58.32%E2%80%AFAM.png?inst-v=01775ae0-e217-4512-b14d-a4b0dd4465bb)
