Environmental Monitoring

Packet Power's Environmental Monitors provide an easy to-implement wireless environmental monitoring solution. Monitors take 1-12 readings of temperature or dry contact inputs and some include humidity and/or differential pressure sensors (see the model references in the chart below).

Environmental Monitor Models

Model

External Temp. Probes

Internal Temp. Points

Power Source

Humidity

Dry Contact or Leak Detection2

Differential Pressure

E300-H000

0

1

Battery

(tick)

E302-H000

2

1

Battery

(tick)

E306-H000

6

0

AC / POE1

(tick)

(tick)

E306-P000

6

0

AC / POE1

(tick)

(tick)

(tick)

E312-H000

12

0

Battery / AC / POE1

(tick)

     1 POE requires a splitter and 5V POE source. Splitters are available from Packet Power

    2 Each external temperature port can be configured as a dry contact or leak detection port.

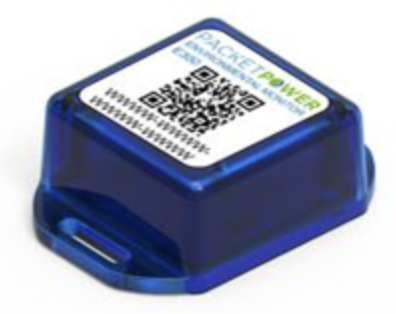

E300

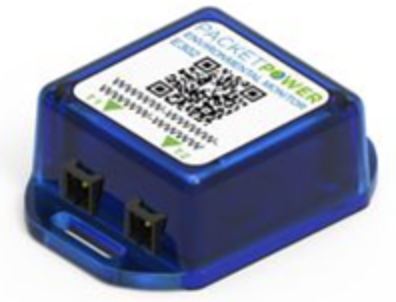

E302

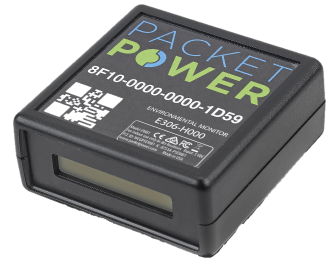

E306

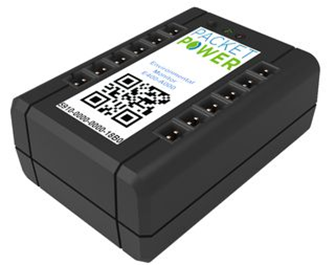

E312

E300 and E302

E306 and E312

Temperature

Humidity

Differential Pressure

Leak Detection / Dry Contact
