Legacy BACnet - Basic Data Retrieval using YABE
Prerequisites
EG4 Ethernet Gateway licensed and configured for BACnet
E302 Environmental node reporting to the EG4
YABE (https://sourceforge.net/projects/yetanotherbacnetexplorer/ )
Gateway configuration

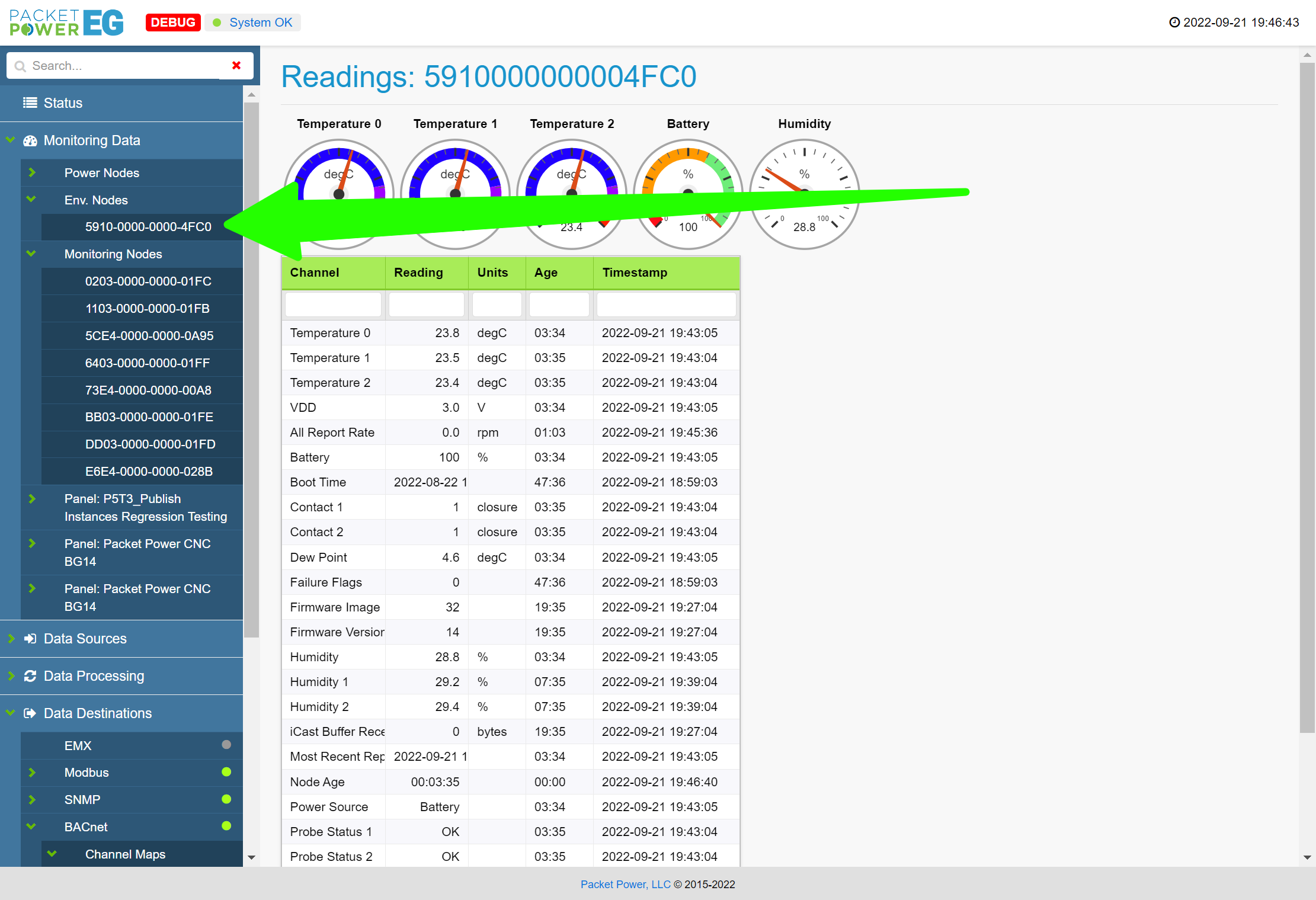

Verify that the node is reporting data

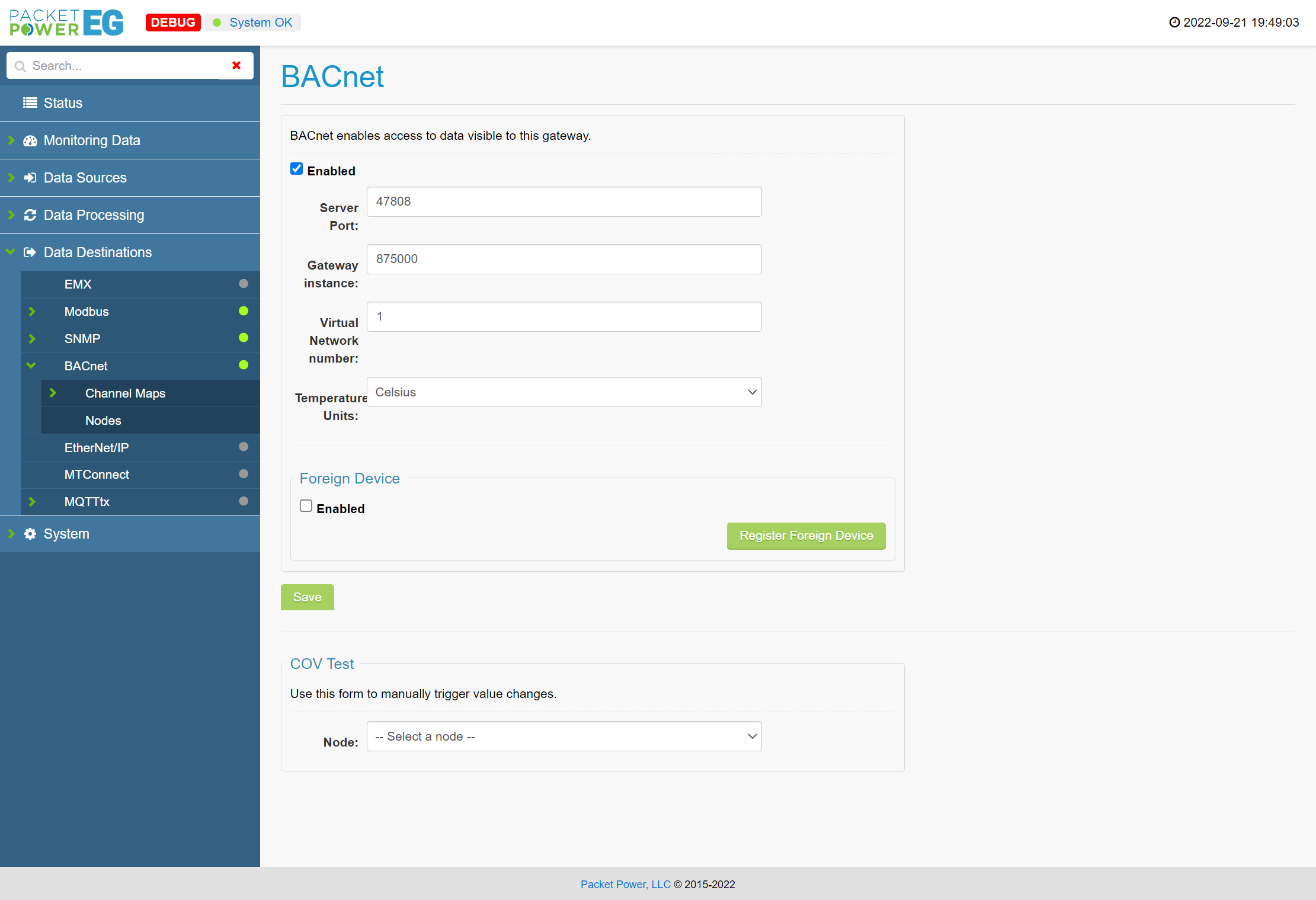

Verify BACnet configuration

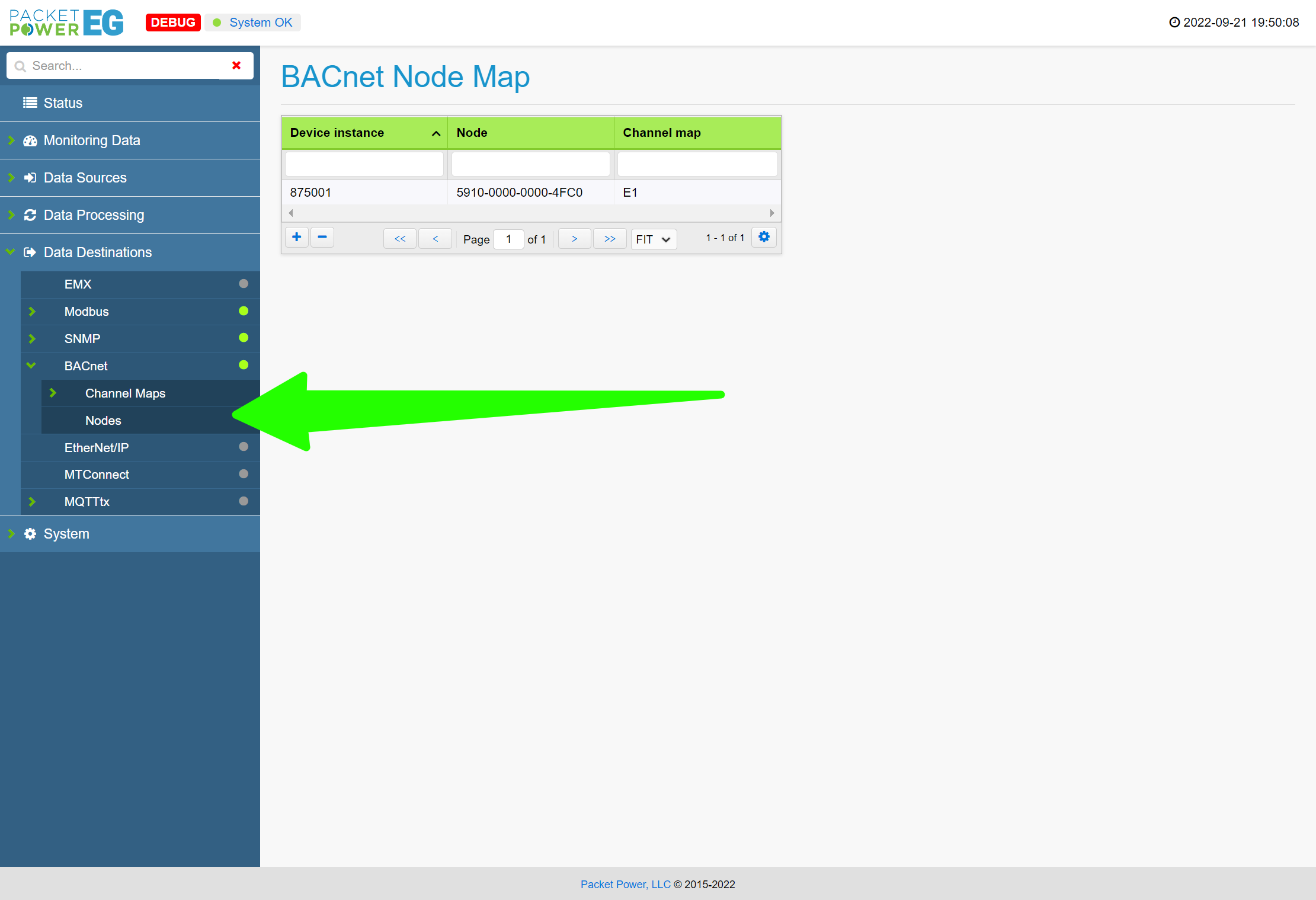

Verify BACnet node mapping

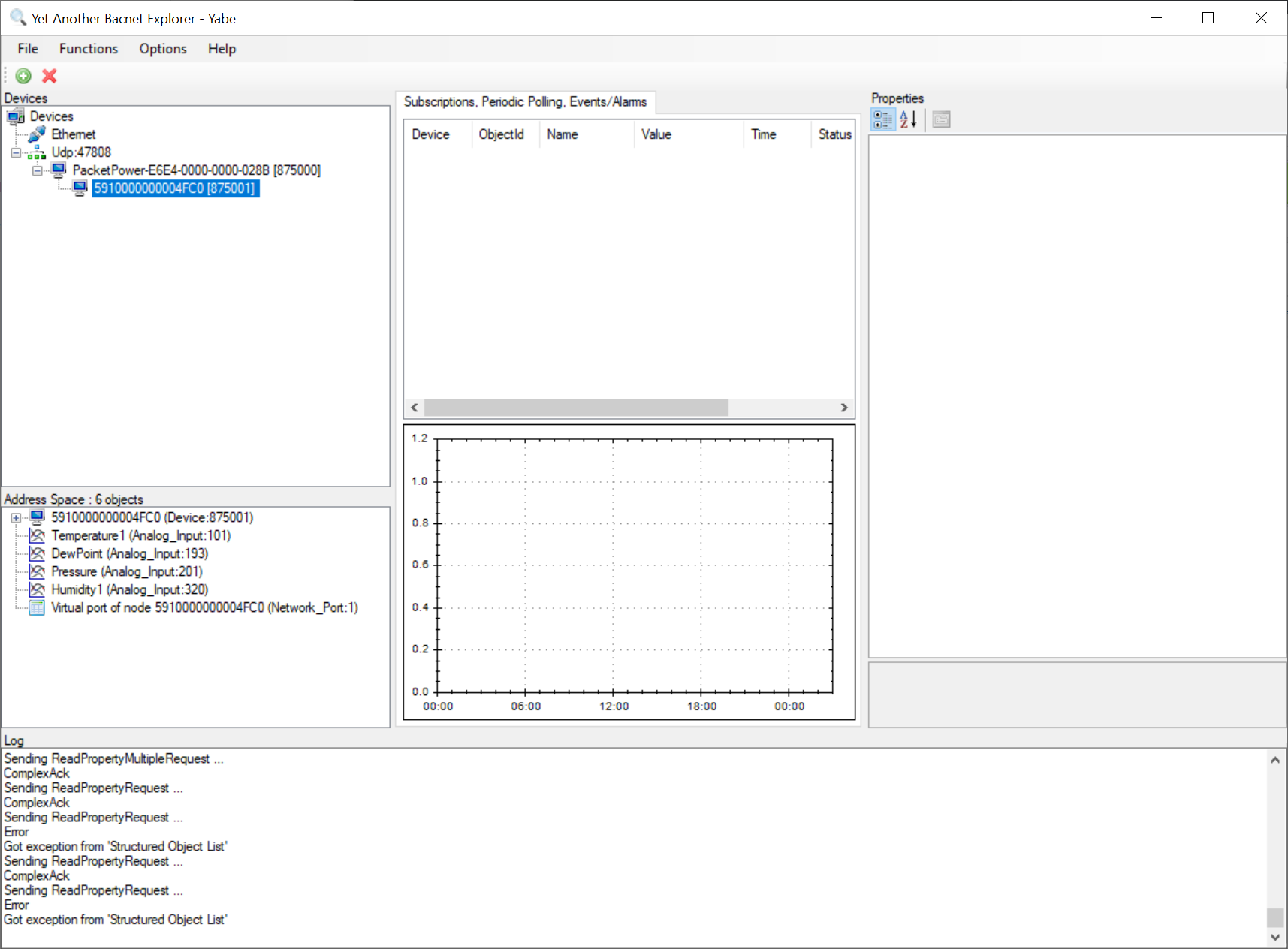

YABE test
Install Yabe and issue a WhoIs request on the same network as the gateway. The gateway and the virtual device corresponding to the monitoring node should be detected. Click on the device to display all readings mapped for that device.
