Legacy Navigation & Configuration

Use the Gateway's touch sensitive surface to navigate the menu. Scroll to the bottom of this page if your Gateway has a joystick.

Basic Navigation

Power on the device.

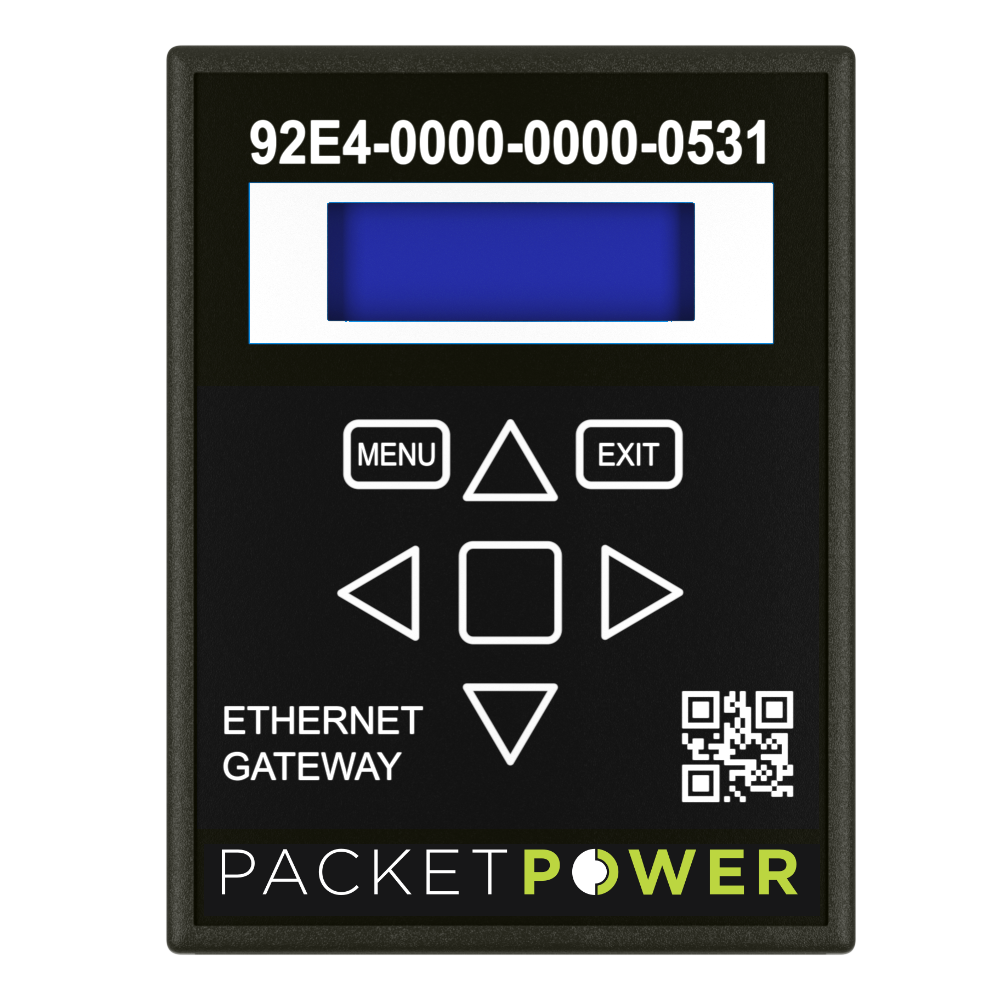

Unlock the touchpad by tapping MENU three times.

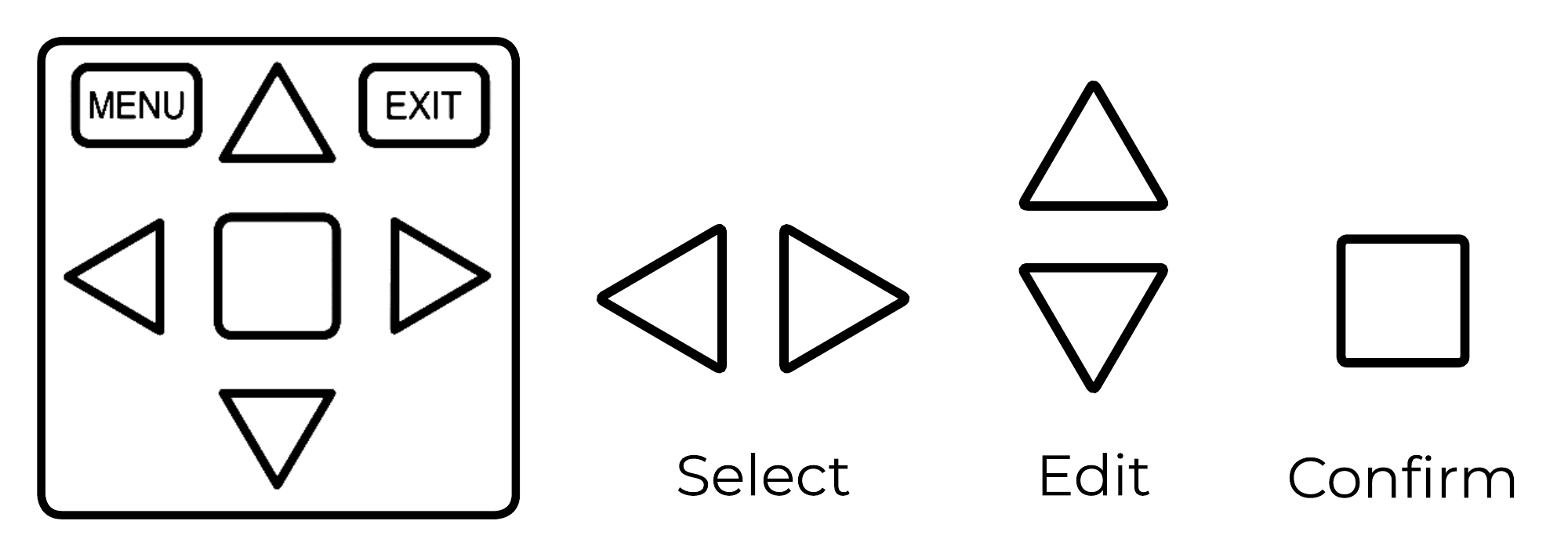

Navigate the menu by tapping an arrow on the touchpad in the appropriate direction.

Save a selection by tapping the center square.

Lock the touchpad by tapping EXIT.

Note:  The touchpad automatically locks after 10 seconds of inactivity.

Caution: Never unplug the Gateway without selecting the shutdown function first.

The Gateway must be connected to a functional network through a router to obtain an IP address. Connection to a PC may work for IP address configuration but not in cases due to PC configurations.

Network connection codes are listed below:

Network Status Messages

No network = connection failed

No cable = no cable in Ethernet port

No service = cable connected but not assigning service

No primary = network, but not on Ethernet

Private net = network without internet access

Internet = network with internet access

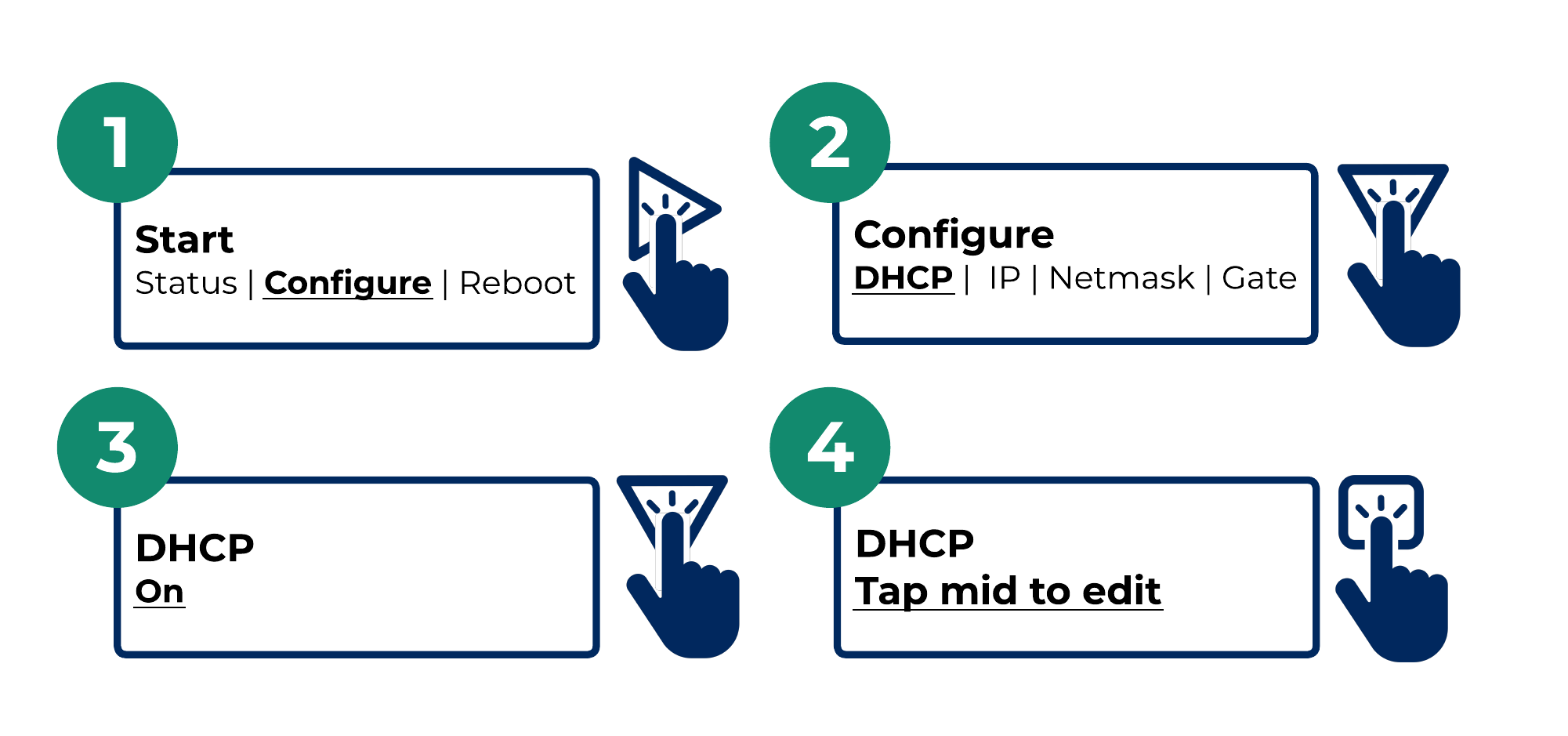

To use DHCP addressing (Gateway obtains a DHCP address from the network) select DHCP addressing (default) or turn off DHCP if using a static IP address.

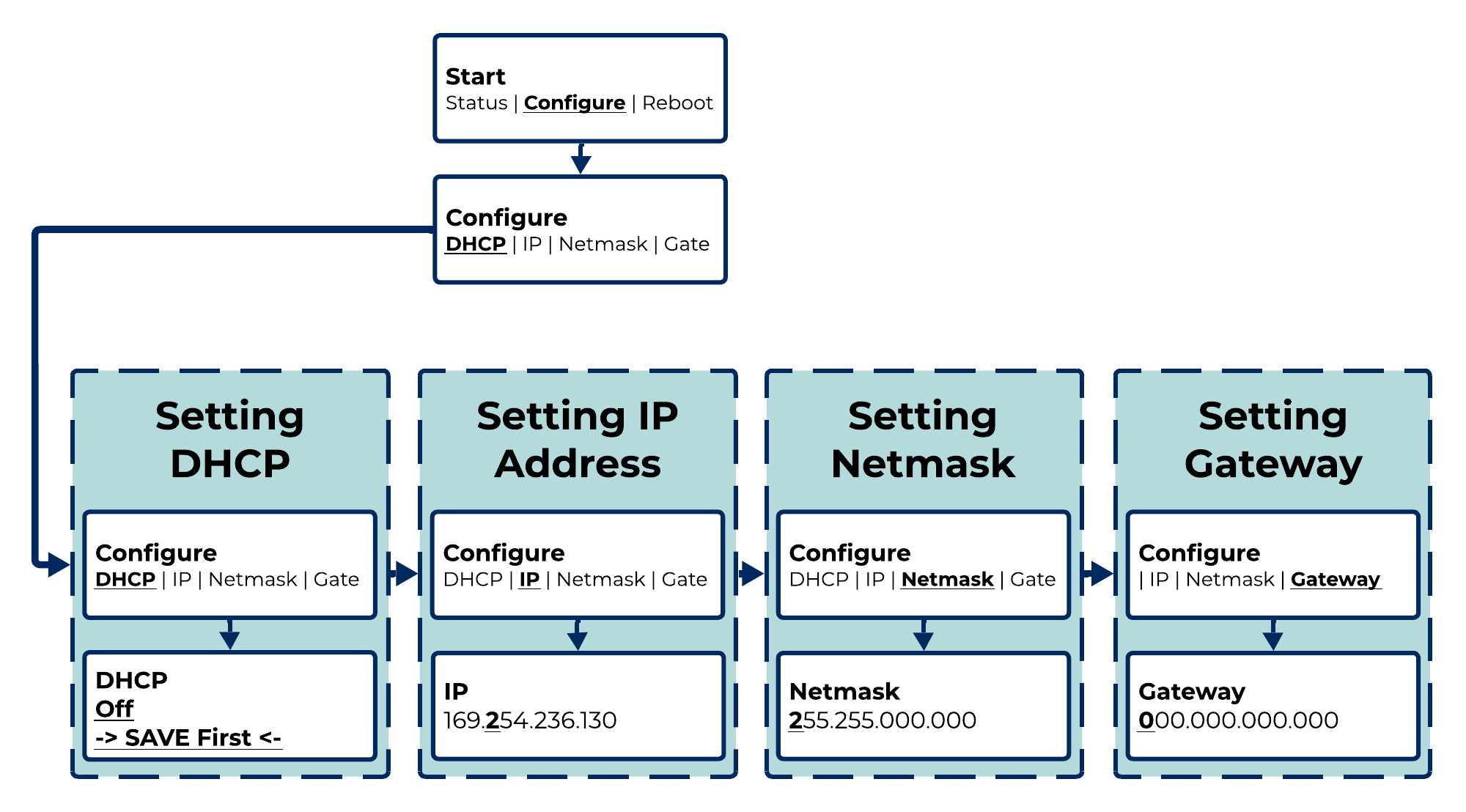

To assign an IP address: Make sure DHCP is turned off, enter the IP address, netmask and gateway addresses.

A temporary IP address can be assigned and modified once you have access to the Gateway using the Gateway console.

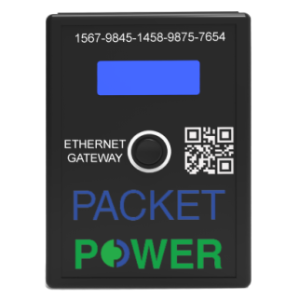

Joystick Gateway Navigation

If you have a Version 4 Gateway with a joystick, use the joystick to navigate the menu; push the joystick to enter a selection.

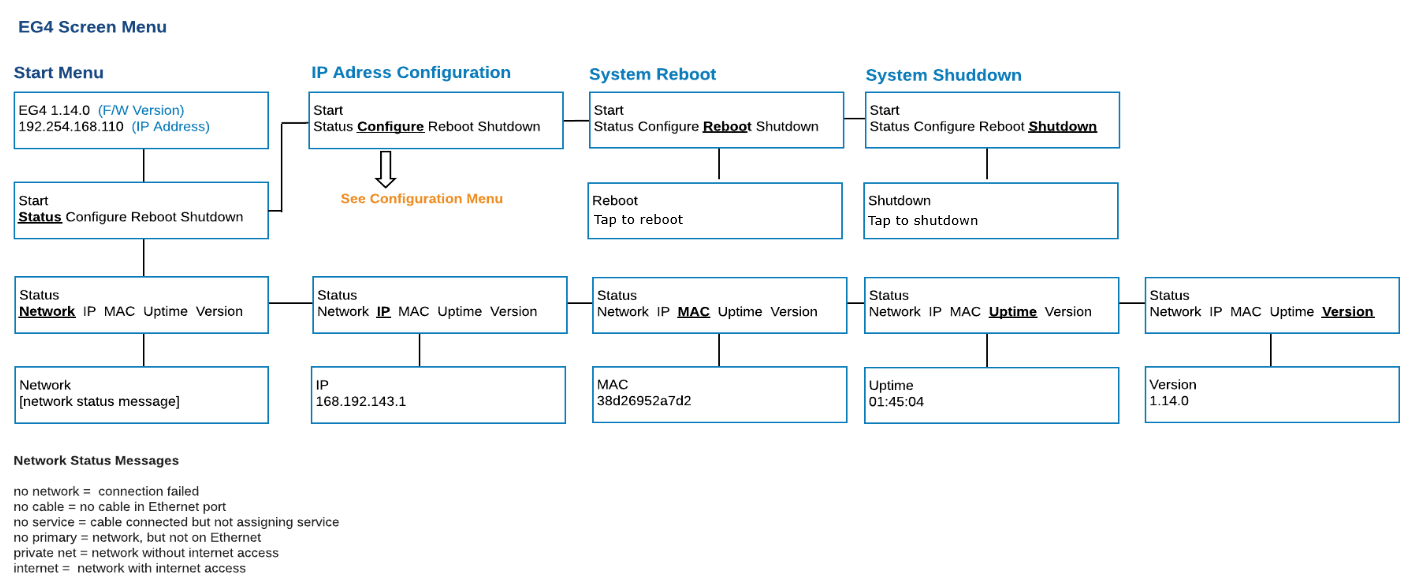

Gateway Menu Map
