Legacy Console - Status

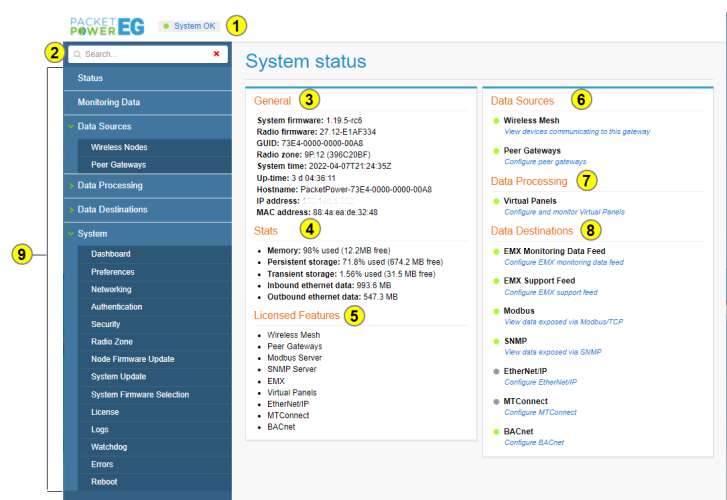

The Status page provides a general overview of all critical Gateway functions as well as links to key sections required for configuration.

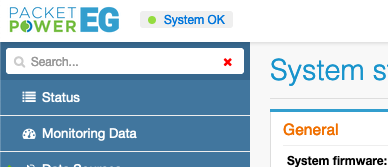

  1. System Status Indicator: Indicates if Gateway is properly communicating with nodes and the network.

🟢 Green: System OK

🟡 Yellow: System problems

🔴 Red: System not operational

Screenshot 2023-12-14 at 10.41.27 AM.png

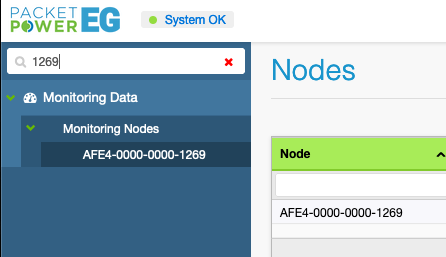

  1. Search: Allows searching for any Gateway related item. For example, you can input the last four digits of a Node ID and relevant nodes will appear.

Screenshot 2023-12-14 at 10.42.25 AM.png

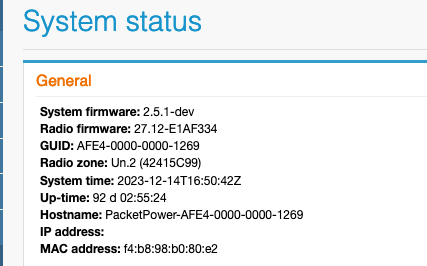

  1. General: Provides all data relating to the Gateway communications settings.

Screenshot 2023-12-14 at 10.44.13 AM.png

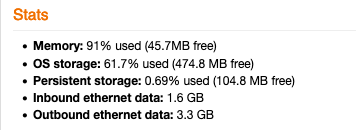

  1. Stats: Gateway disk statistics

Screenshot 2023-12-14 at 10.45.05 AM.png


  1. Licensed Features: Indicates which features are licensed for use with this Gateway. For adding licenses See: Legacy Console - System

Screenshot 2023-12-14 at 10.45.26 AM.png

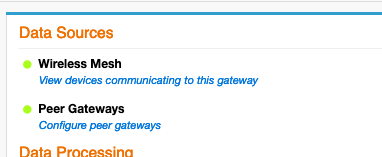

  1. Data Sources: Indicates from where the Gateway is acquiring data. This can be via wireless monitoring nodes or through other Peer Gateways. For More Info see: Legacy Console - Data Sources

Screenshot 2023-12-14 at 10.46.53 AM.png

  1. Data Processing: This function is used for virtual circuit mapping. It allows users to assign breaker types and locations when using multi-circuit monitoring features such as Branch Circuit Monitoring. For more see: Legacy Console - Data Processing Contact sales@packetpower.com if you'd like to learn more about virtual circuit mapping.

  2. Data Destinations: Configures data for export from the Gateway to Modbus TCP/IP, SNMP and the EMX Portal (cloud or local implementations). Fore more see: Legacy Console - Data Destinations

  3. Menu: Provides access to various Gateway settings and tools.
