Data Processing (Virtual Panels)

The “Virtual Panel” application for branch circuit panelboards and other multi-circuit devices makes it possible to configure EMX and Modbus registers to match the circuit mix in your panel. This means that each circuit breaker will be depicted as a one-, two- or three-pole circuit along with its pole location(s). This intuitive depiction makes it easier to identify circuits and their associated power usage in. This is a licensed feature that is only enabled on authorized Gateways. For details contact sales@packetpower.com.

Go to Virtual Panel Editor for step-by-step instructions on loading and editing panel maps to your master gateway.

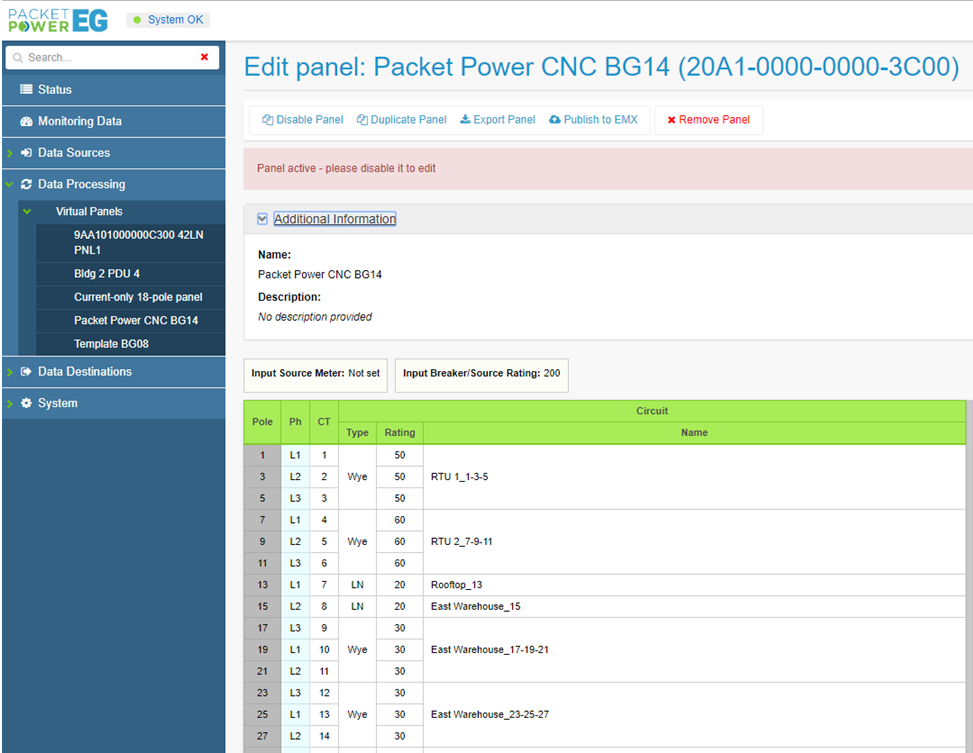

This is what a completed panel with data looks like in the Gateway's Data Processing section.

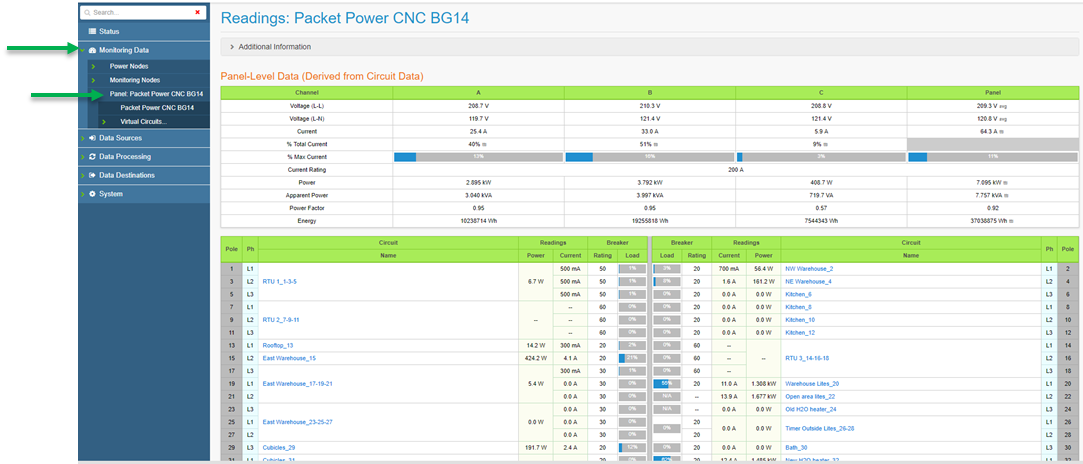

This is what a completed panel with data looks like in the Gateway's Monitoring Data section. The Virtual Panel feature allows Packet Power reading data to be displayed according to its actual circuit breaker allocation.  Go to View Panel Data in Gateway to learn more.
