Gateway dimensions & mounting

The Ethernet Gateway supports standard DIN-clip mounting. The gateway ships with a magnetic mount attached to the DIN-clip.

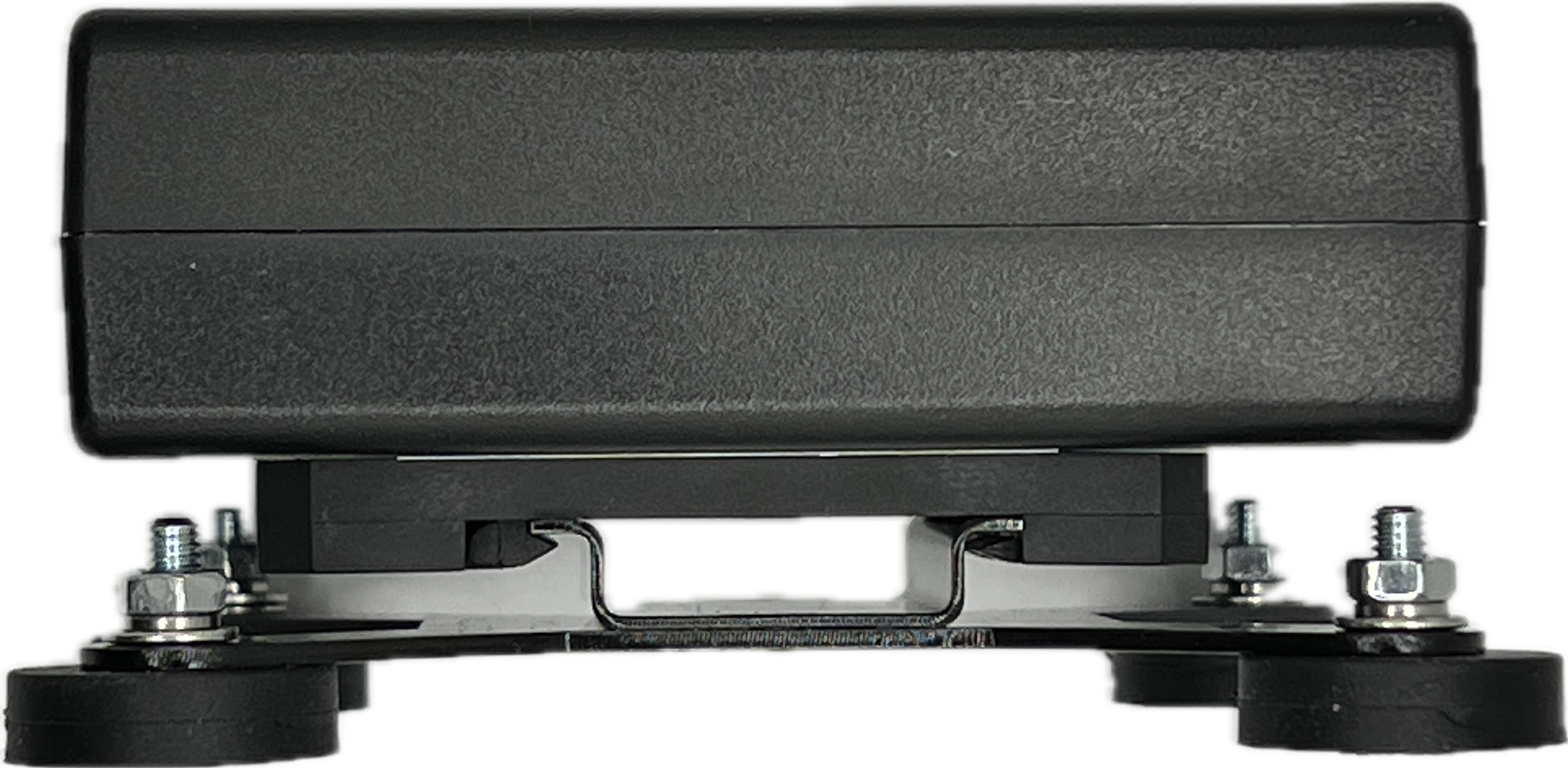

EG4 mounted - side view.png — Side view
Width: 95mm
Height: 50mm

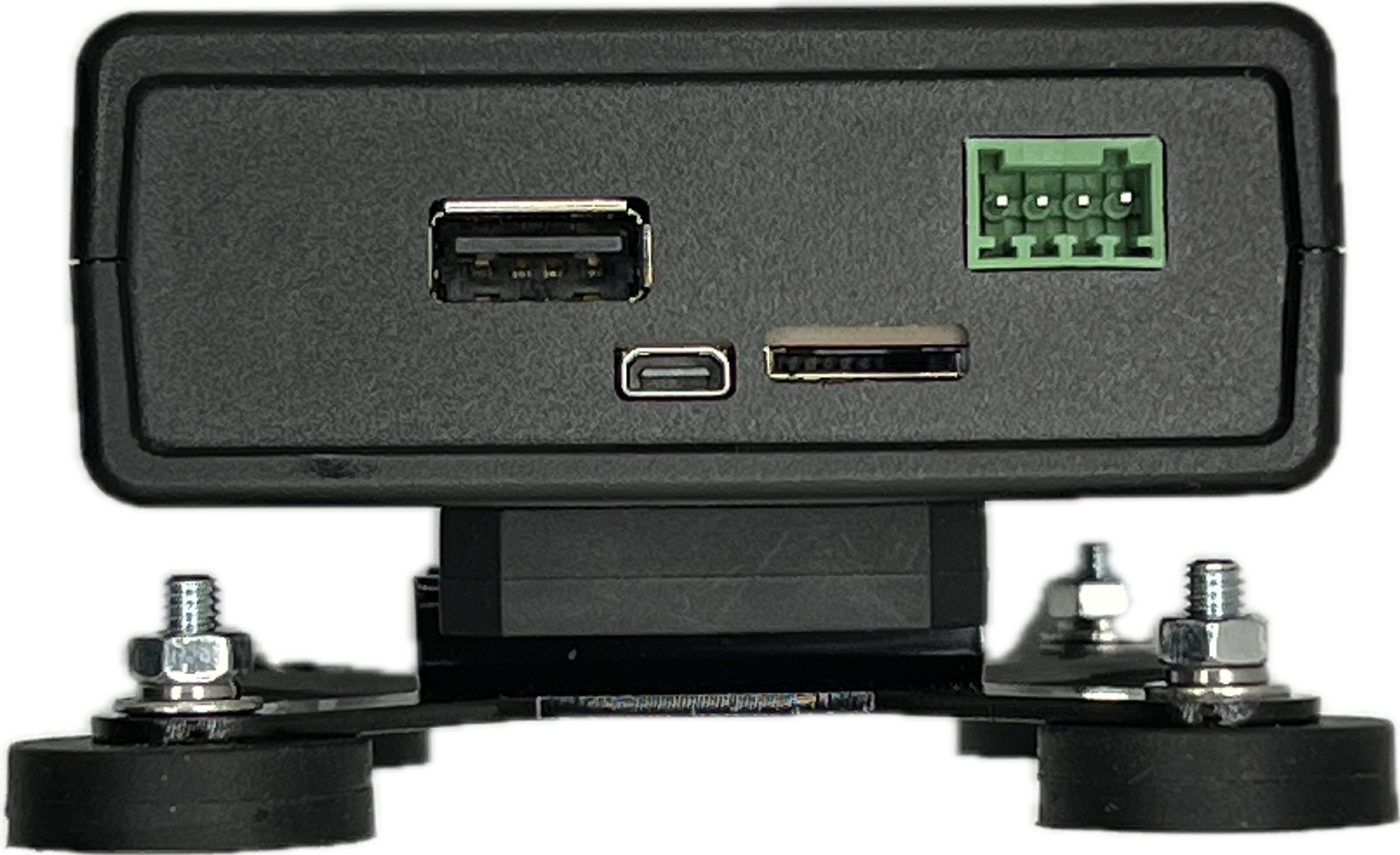

EG4 mounted - front view.png — Back view
Width: 77mm
Height: 50mm

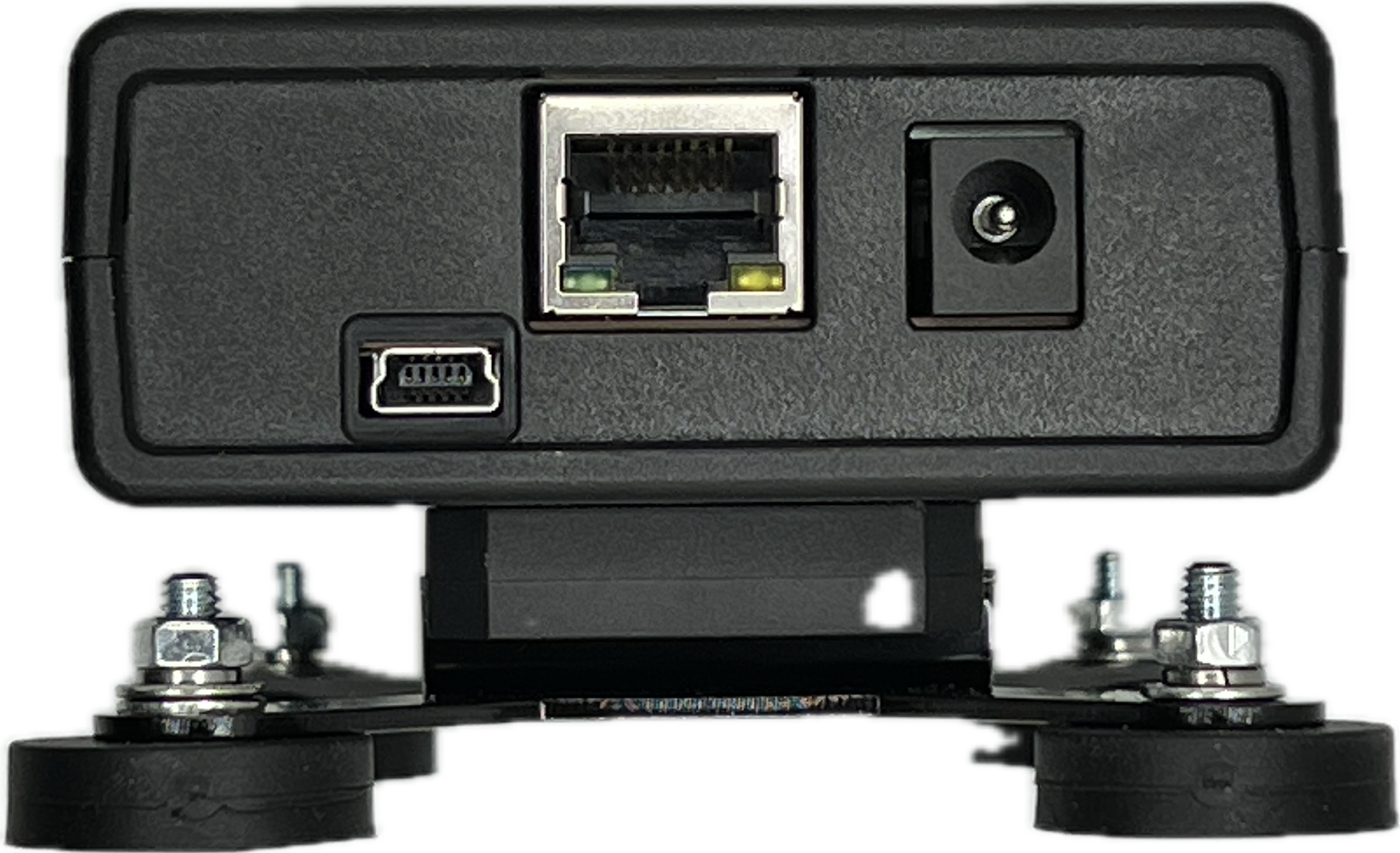

EG4 mounted - back view.png — Front view
Width: 77mm
Height: 50mm

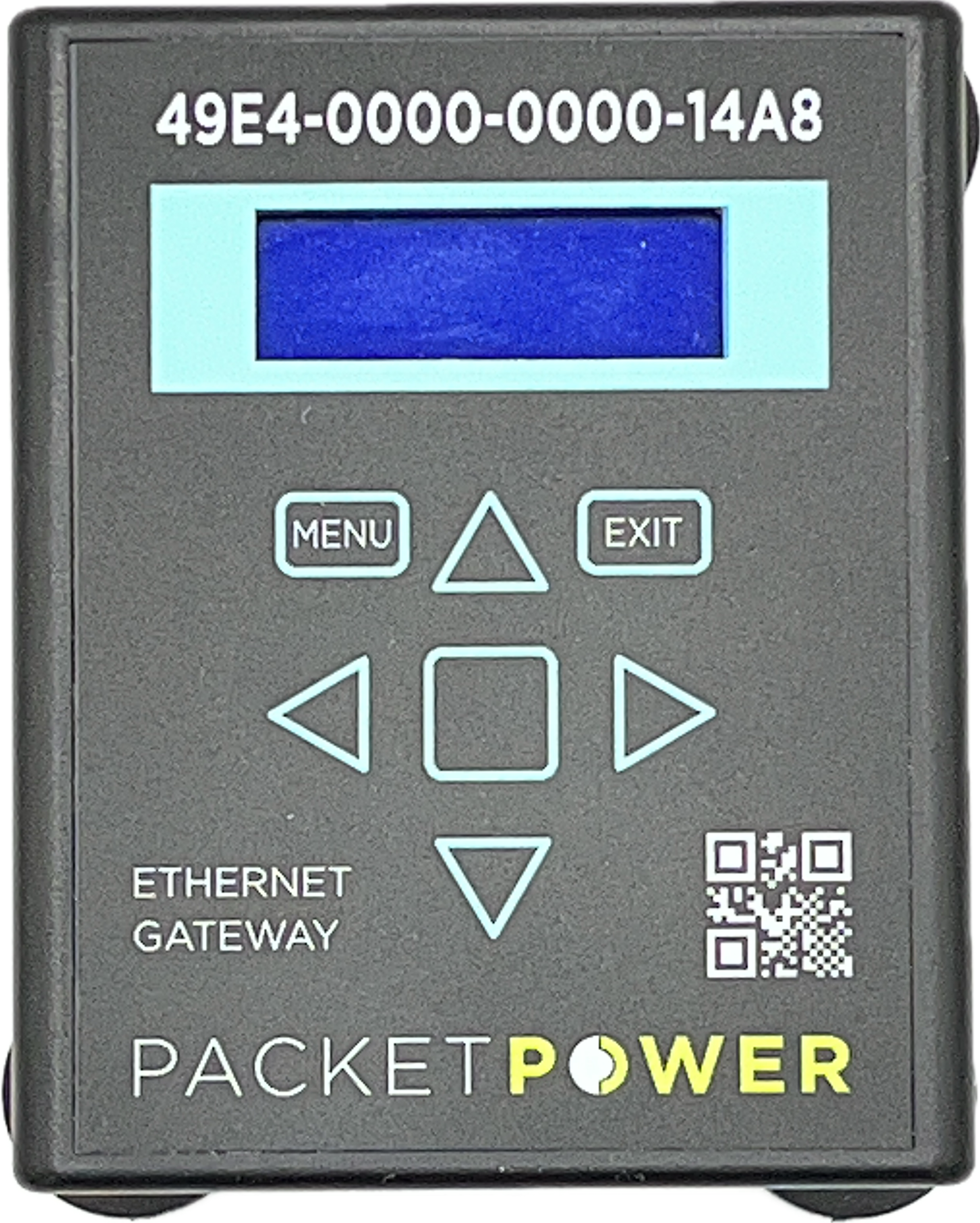

EG4 mounted - top view.png — Top view
Width: 77mm
Height: 95mm

The Gateway stand is screw-mountable via 5mm holes, spaced 62mm x 82mm

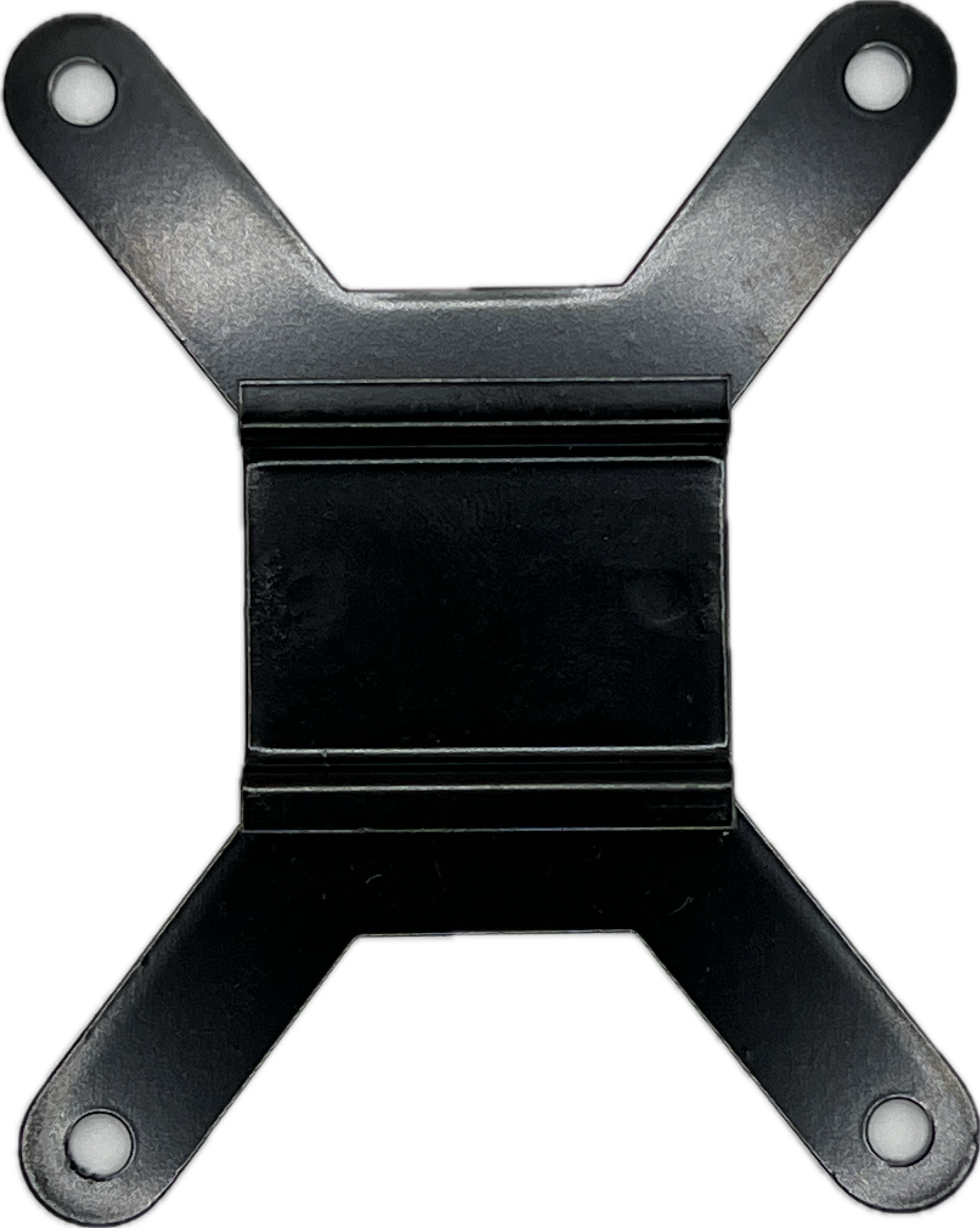

EG4 Mount no feet.png — Screw-mount (d=5mm)

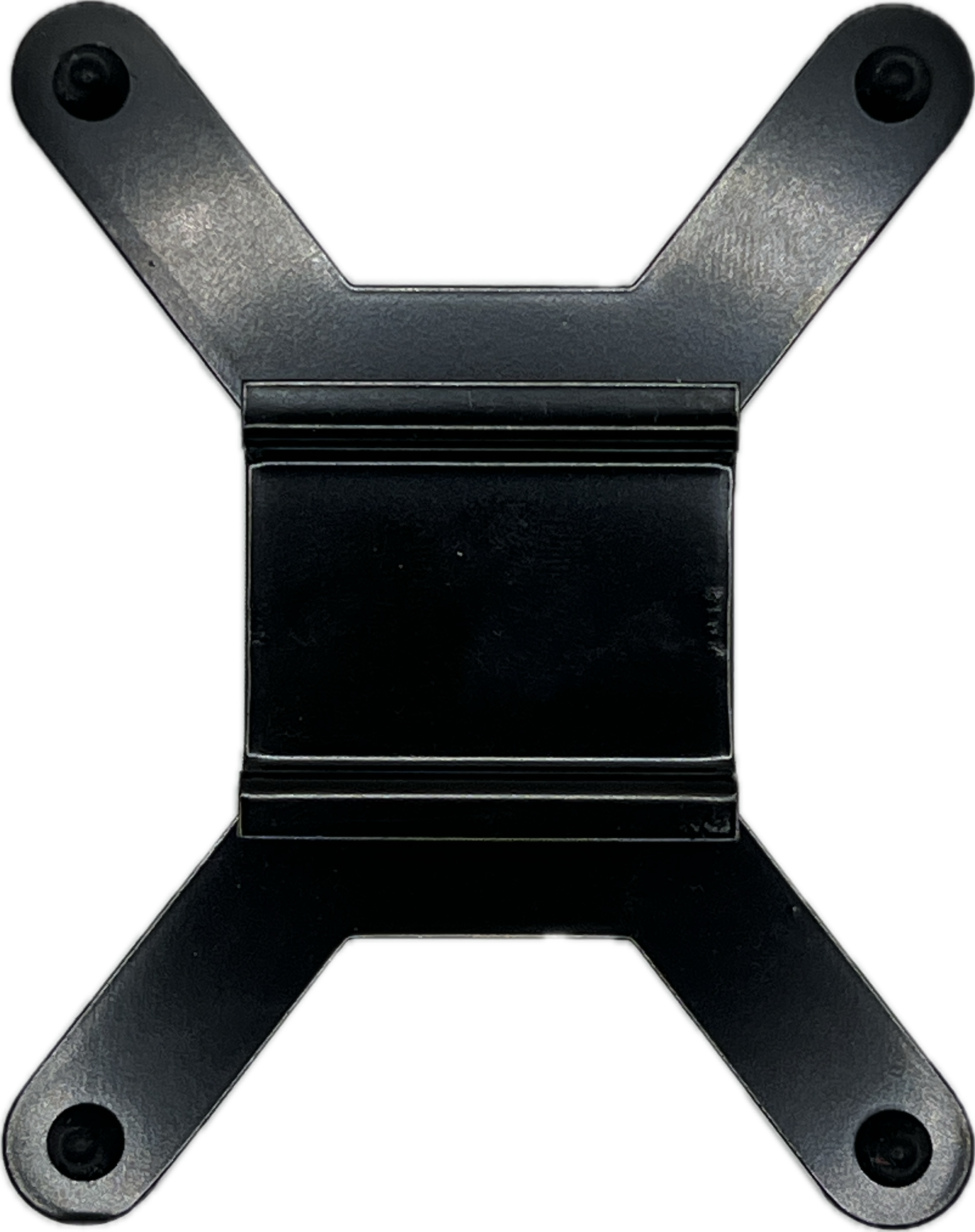

EG4 mount rubber feet.png — Rubber feet

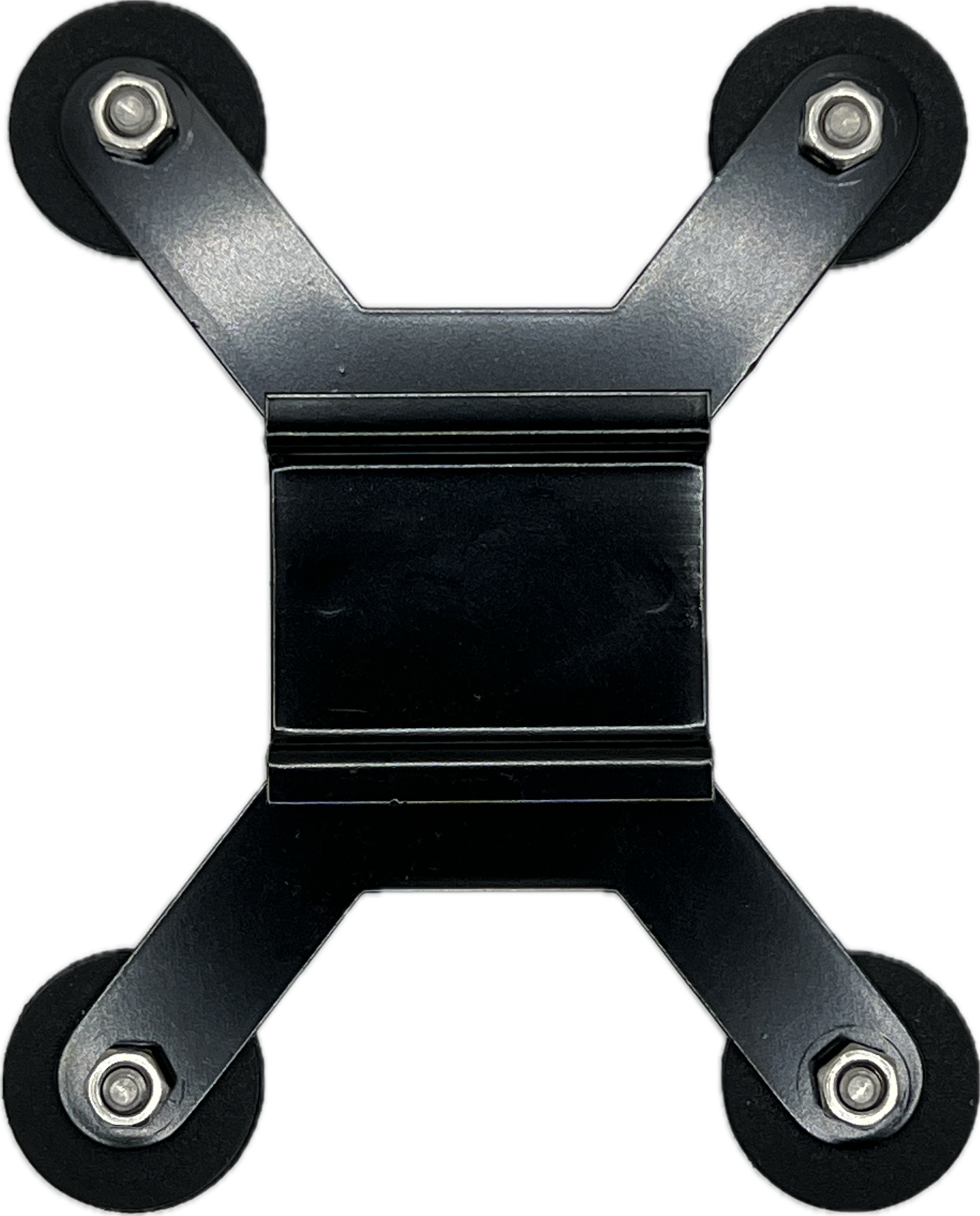

EG4 mount magnetic feet.png — Magnetic feet
