Single Meter Sub metering: 1-8 CTs

Packet Power’s single wireless meters can be ordered with just the meter ready for field configuration or fully configured and assembled with a choice of enclosures, power connections and current sensors. All components are purchased separately.

Configuration should be performed by qualified personnel only.

Single Meter Options

Packet Power offers the following single wireless power meters.

Model	Desired measurement	Source voltage	# of CTs
MP277	Full power	100-480/277V	1-8
MP480	Full power	480V, 600/347V	1-3

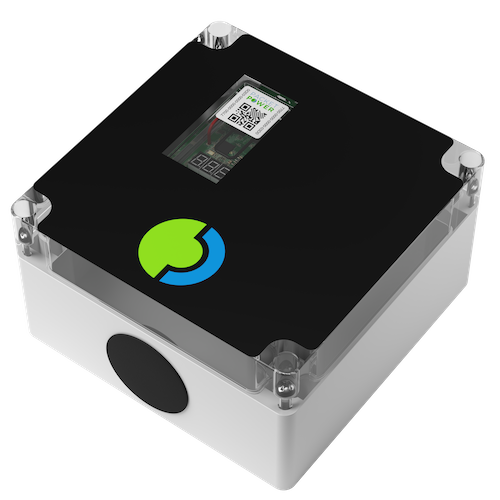

MP277

Single wireless power meter for input voltage of 100 - 480/277V.

MP277 Models	Maximum Full Power CTs	CT Output	Source Power Options
MP277-6MV	6	mV	120-240V AC 1Φ (LN) 200-230V AC 1Φ (LL) 277V AC 1Φ (LN) 200-230V AC Delta (LLL) 208/120V AC Wye 240/120V AC Split (LLN) 415/240V AC Wye 480/277V AC Wye
MP277-8MV	8	mV
MP277-8RO	8	Rogowski
MP277-3MA	3	mA
MP277-6MA	6	mA

View MP277 Data Sheet for detailed information on technical specifications, enclosure options, etc.

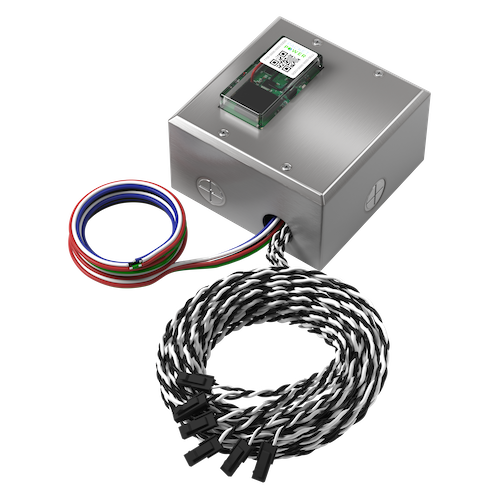

MP480

Single wireless power meter for input voltage of 480V or 600/377V.

MP480 Models

Maximum

Full Power CTs

CT Output

Source Power Options

MP480-3MV

3

mV

480V AC Delta

600/347V AC Wye

MP480-3RO

3

Rogowski

View MP480 Data Sheet for detailed information on technical specifications, enclosure options, etc.

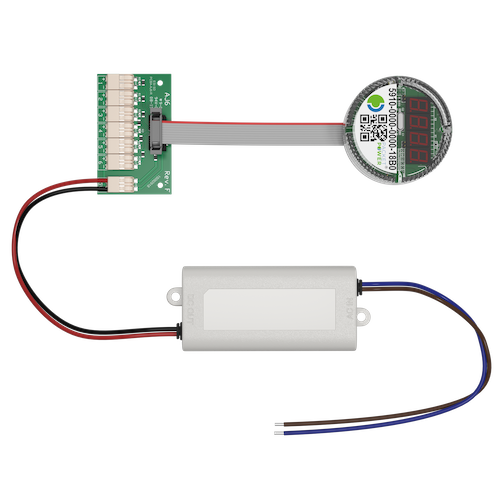

MC240

Single wireless current meter for input voltage of 100-240V. The MC240 includes the current meter, power source and CT interconnect ribbon cable.

MC240 Models

Maximum

Current only CTs

CT Output

Source Power Options

MC240-6MV

6

mV

100-240V AC 1Φ (LN)

200-230V AC 1Φ (LL)

MC240-6MA

6

mA

View MC240 Data Sheet for detailed information on technical specifications, enclosure options, etc.
