Branch Circuit Monitors: 30-198 CTs

Panel monitors are available in a range of enclosures, and the wiring approach required can vary depending on the enclosure, the current transformer, and the equipment to be monitored. Panel monitoring systems are intended to be installed by qualified personnel only.

Packet Power’s  branch circuit wireless devices support 32 to 198 CTs and can monitor panelboards, RPPs and PDUs from any vendor. Our largest devices can monitor four 42/48-pole side by side panels.

Monitors are built to customer specifications and ship fully configured for:

  • Voltage source, type, quantity, lead color and lead length

  • CT rating, quantity

  • CT lead type -- flexible wire harnesses or loose leads if desired

  • Wire exit location

  • Overcurrent protection

  • Measurement type - full power or current-only

Branch Circuit Monitor Configurations

Packet Power supports multiple generations of branch circuit monitors. The differences are how many CTs the power meter used can support. If in doubt, reference your device type through your Gateway console.

BGXX Branch Circuit Monitors (sold in 2020 or earlier)

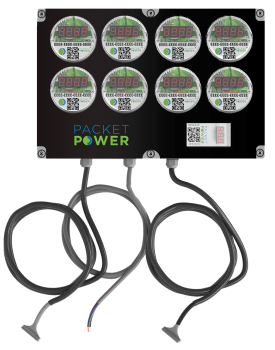

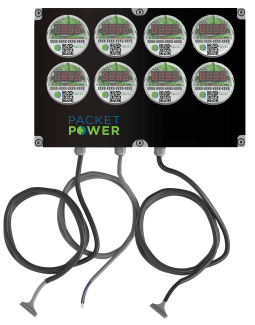

BG08

Current-only branch circuit monitor with optional full power monitoring of 3 infeed circuits

BG08-C480

Dimensions:  9.5 x 6.3 x 3.8 in  (241 x 160 x 96 mm)

CTs:  19-48 current only

BG08-P480

Dimensions:  10.4 x 7.2 x 3.8 in  (264 x 183 x 96 mm)

CTs:  19-48 current only

          1-3 full power

View BG08 Technical Specifications for detailed information on measurements, mounting options, wire exits, etc.

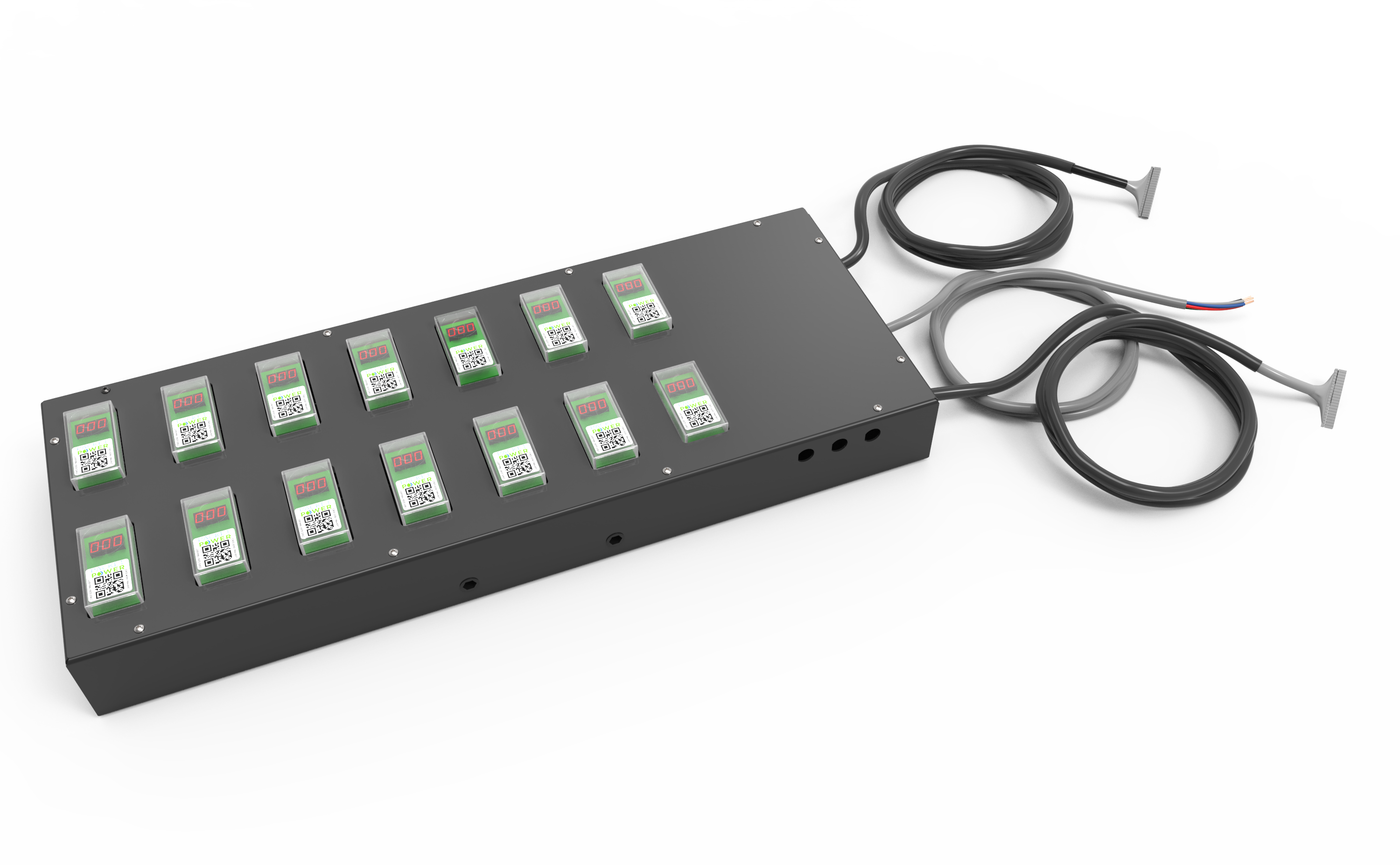

BG14

Full power branch circuit monitoring up to 42 CTs

View BG14 Technical Specifications for detailed information on measurements, mounting options, wire exits, etc.

BG32

Full power branch circuit monitoring up to 96 CTs

Dimensions:  17.5 x 11.9 x 4.5 in  (445 x 302 x 115 mm)

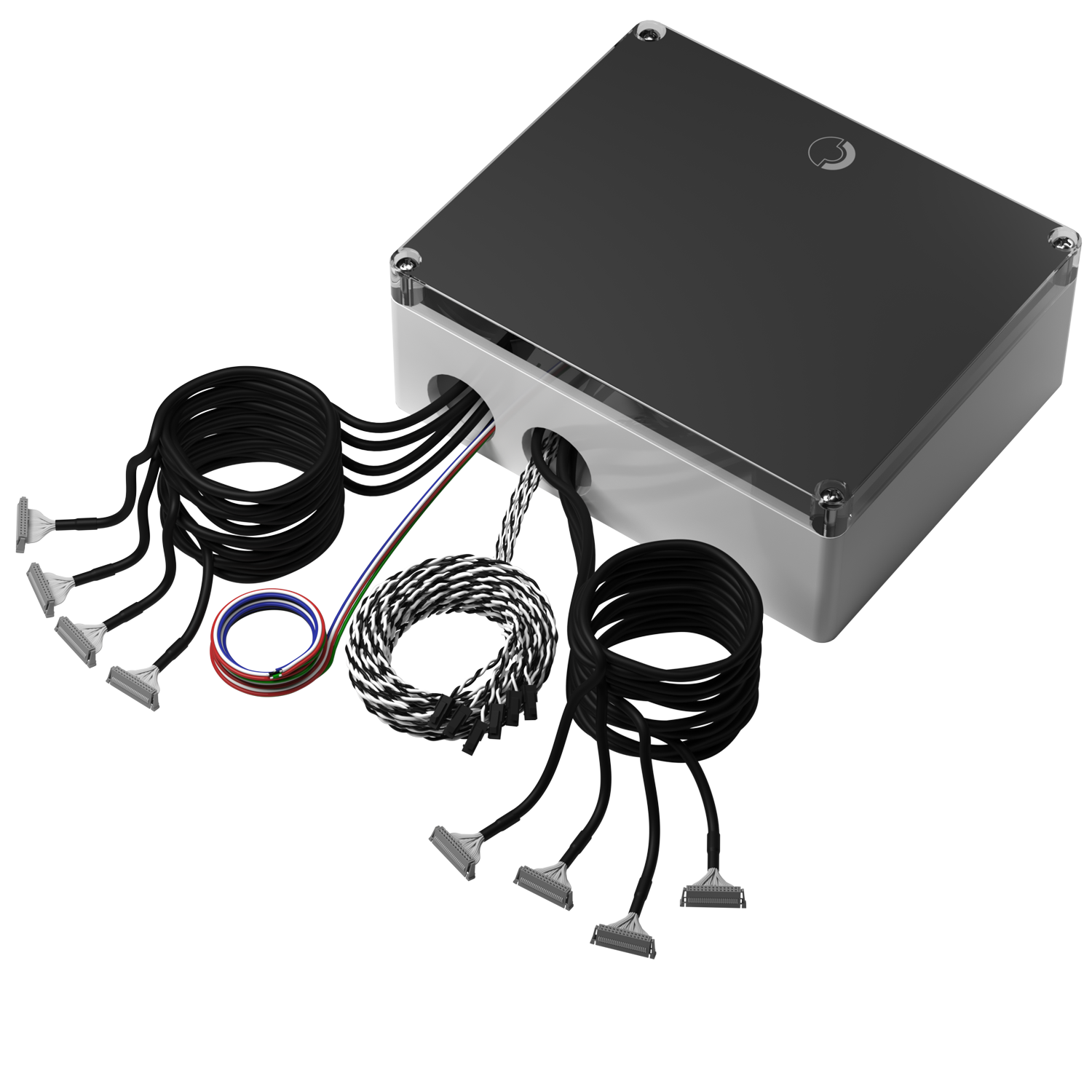

Shown with four CT harnesses

View BG32 Technical Specifications for detailed information on measurements, mounting options, wire exits, etc.

BGXX Branch Circuit Monitors (sold November 2020 or later)

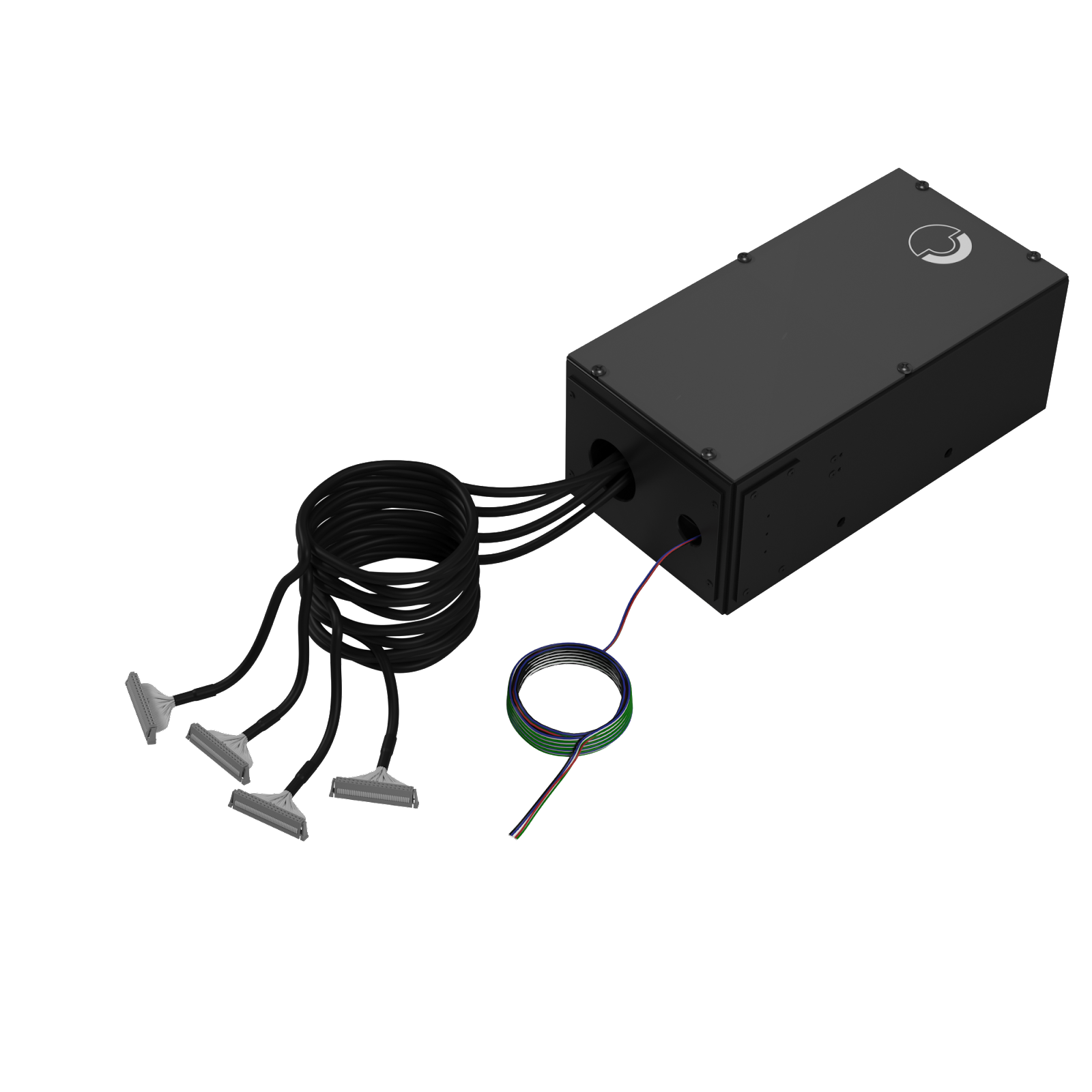

BGP64

Full power branch circuit monitoring for 32-64 CTs

The model most often used for 30-pole, 42-pole and 48-pole side-by-side panels

Dimensions:  12.2 x 6.3 x 4.5 in  (310 x 160 x 115 mm)

View BGP64 Data Sheet with system components, models, technical specifications and customization information.

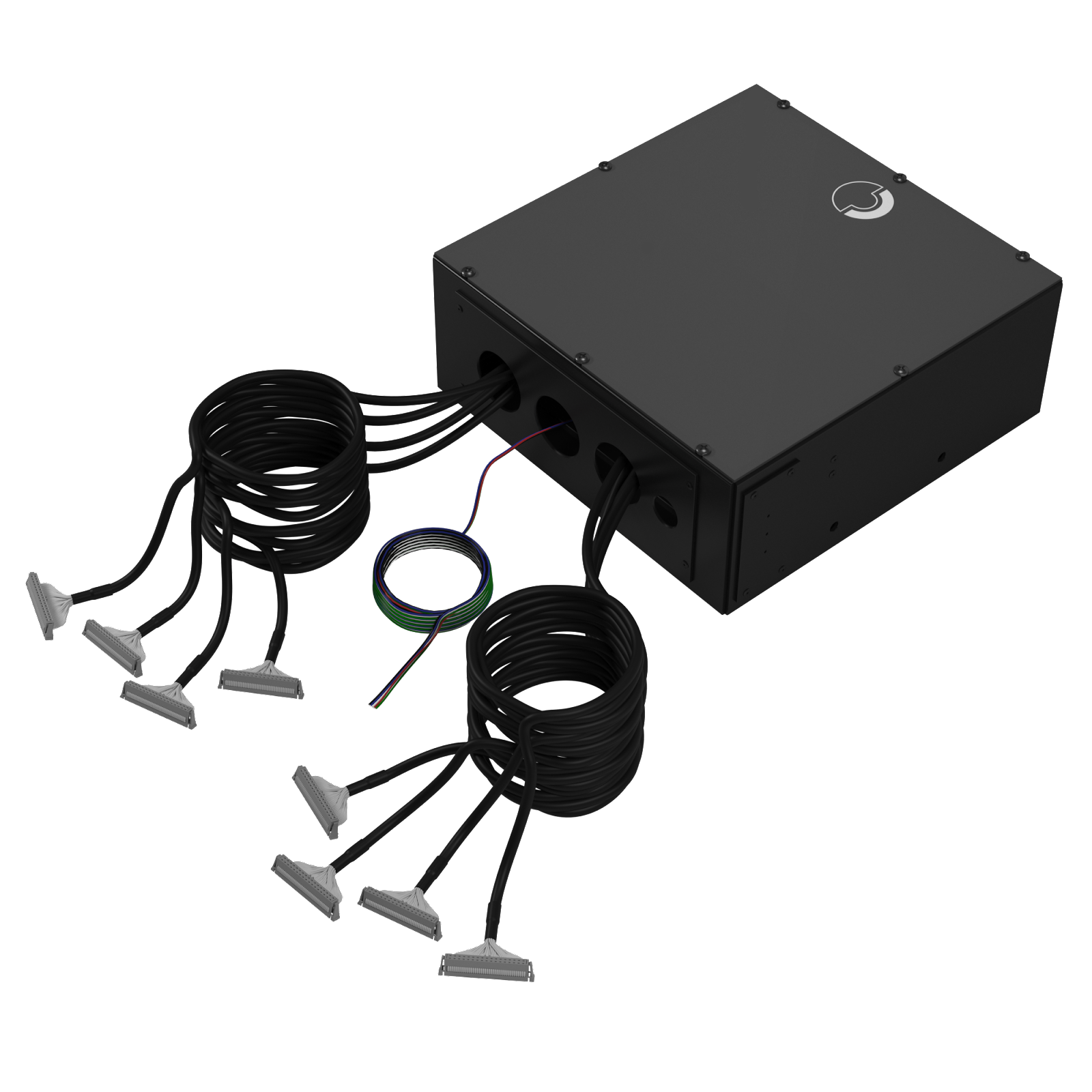

BGP128

Full power branch circuit monitoring for 65-128 CTs

The model most often used for 72-pole inline panels as well as two 42/48-pole side-by-side panels

Dimensions:  12.2 x 11.9 x 4.5 in  (310 x 302 x 115 mm)

View BGP128 Data Sheet with system components, models, technical specifications and customization information.

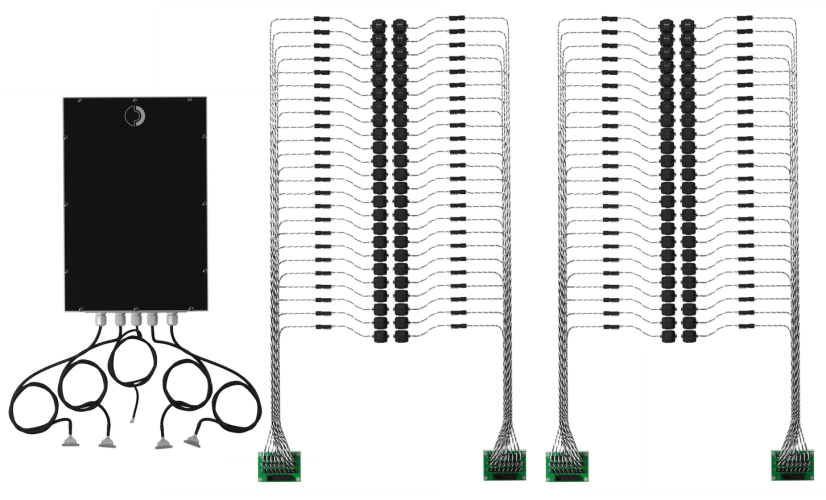

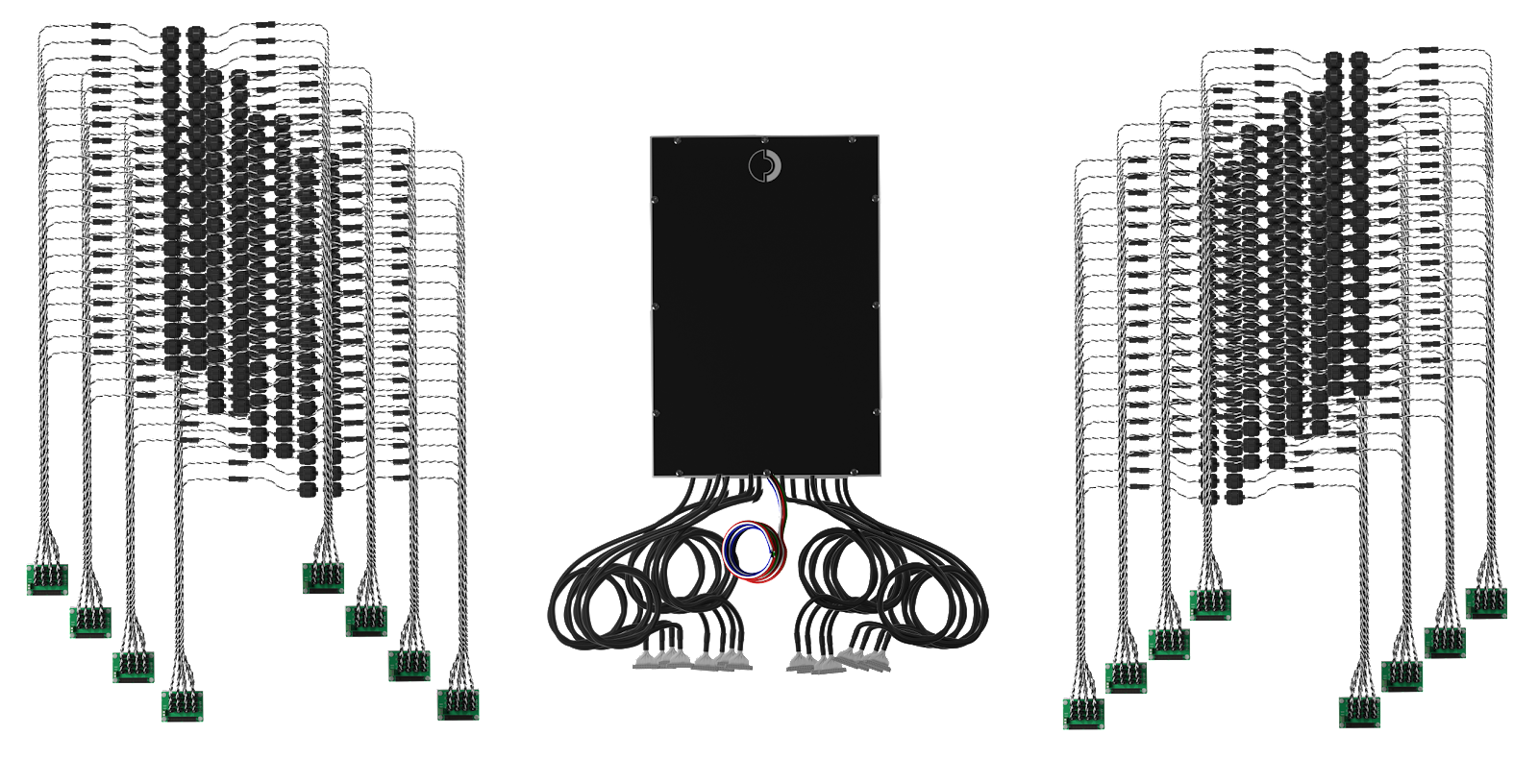

BGP192

Full power branch circuit monitoring for 129-192 CTs

The model most often used for three or four 42/48-pole side-by-side panels

Dimensions:  17.5 x 11.9 x 4.5 in  (445 x 302 x 115 mm)

View BGP192 Data Sheet with system components, models, technical specifications and customization information.

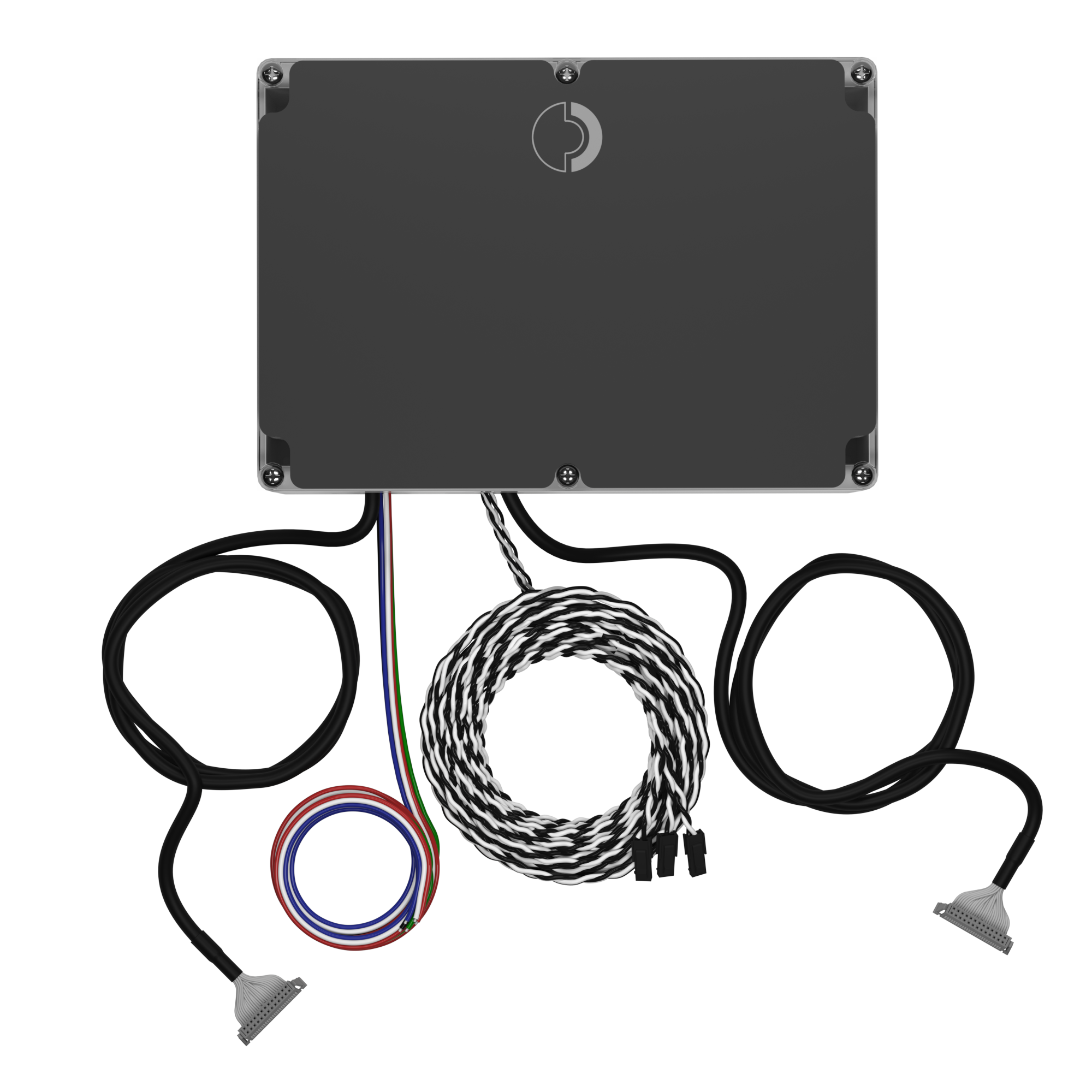

BGP51

Current only branch circuit monitoring for 24-48 CTs with optional full power monitoring for 3 infeed CTs

The model most often used to cost effectively track power for  42/48-pole side-by-side panels

Dimensions:  10.4 x 7.3 x 3.8 in  (265 x 185 x 96 mm)

View BGP51 Data Sheet with system components, models, technical specifications and customization information.

BGP198

Current only branch circuit monitoring for 96-192 CTs with optional full power monitoring for 6 infeed CTs

The model most often used to cost effectively track power for two or three 42/48-pole side-by-side panels

View BGP198 Data Sheet with system components, models, technical specifications and customization information.

Go to Multi-Circuit Monitoring (1-72 CTs) for information about Packet Power’s multi-circuit monitoring solutions for input feeds, select circuits on panelboards, existing switchgear, HVAC, generators and other high energy loads.
