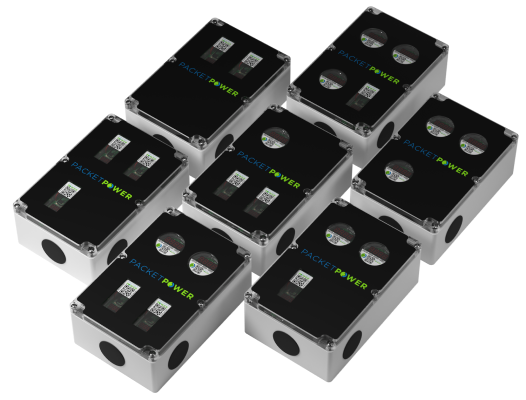

Multi-Circuit Monitors: 9-72 CTs

Multi-circuit monitors are available in a range of enclosures, and the wiring approach required can vary depending on the enclosure, the current transformer, and the equipment to be monitored. Multi-circuit monitoring systems are intended to be installed by qualified personnel only.

Packet Power’s multi-circuit wireless devices support 1 to 72 CTs and offer a mix of full power and current only monitoring. Monitors are built to customer specifications and ship fully configured for:

  • Voltage source, type, quantity, lead color and lead length

  • CT type, rating, quantity

  • CT lead type -- loose leads or flexible wire harnesses for some models

  • Wire exit location

  • Overcurrent protection

  • Measurement type - full power or current-only

See Branch Circuit Monitoring (32 - 198 CTs) for information about Packet Power’s branch circuit monitoring solutions for panelboards, RPPs and PDUs. Packet Power offers a wide range of split-core and solid-core Current Transformers (CTs) as well as flexible Rogowski coil sensors. View our list of Current Transformers.

Multi-Circuit Monitor Configurations

Packet Power supports multiple generations of multi-circuit monitors. If in doubt about your monitor, simply look at the power meter display. The BGSXX models also ship with CT ribbon cables and CT interconnect boards.

BGSXX Models (100 - 480/277V AC Input Voltage)

Launched November 2020, these monitors have a similar form factor to the BGXX monitors but they support a higher number of CTs per enclosure. (OLED display + includes CT ribbon cable and interconnect boards)

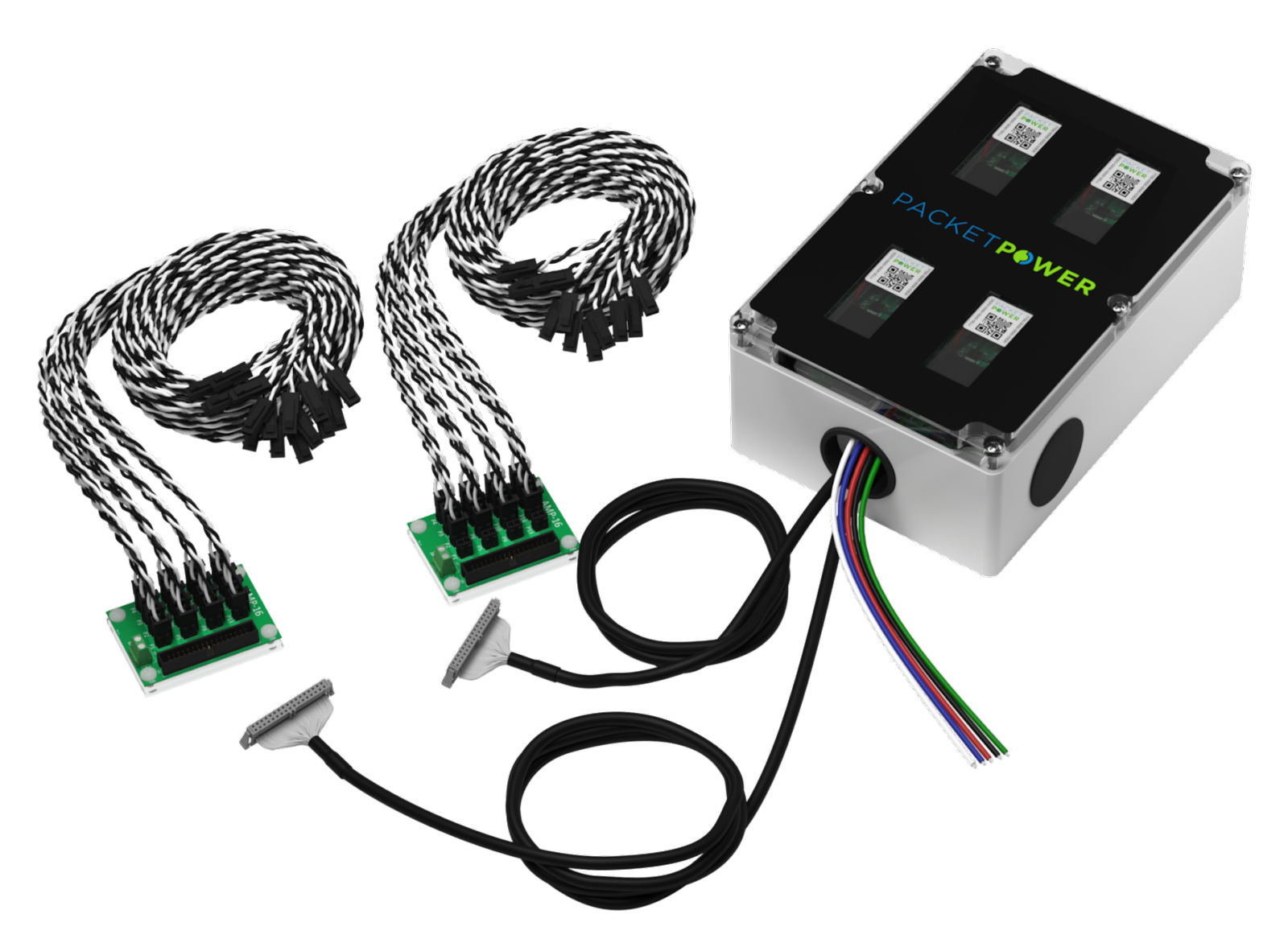

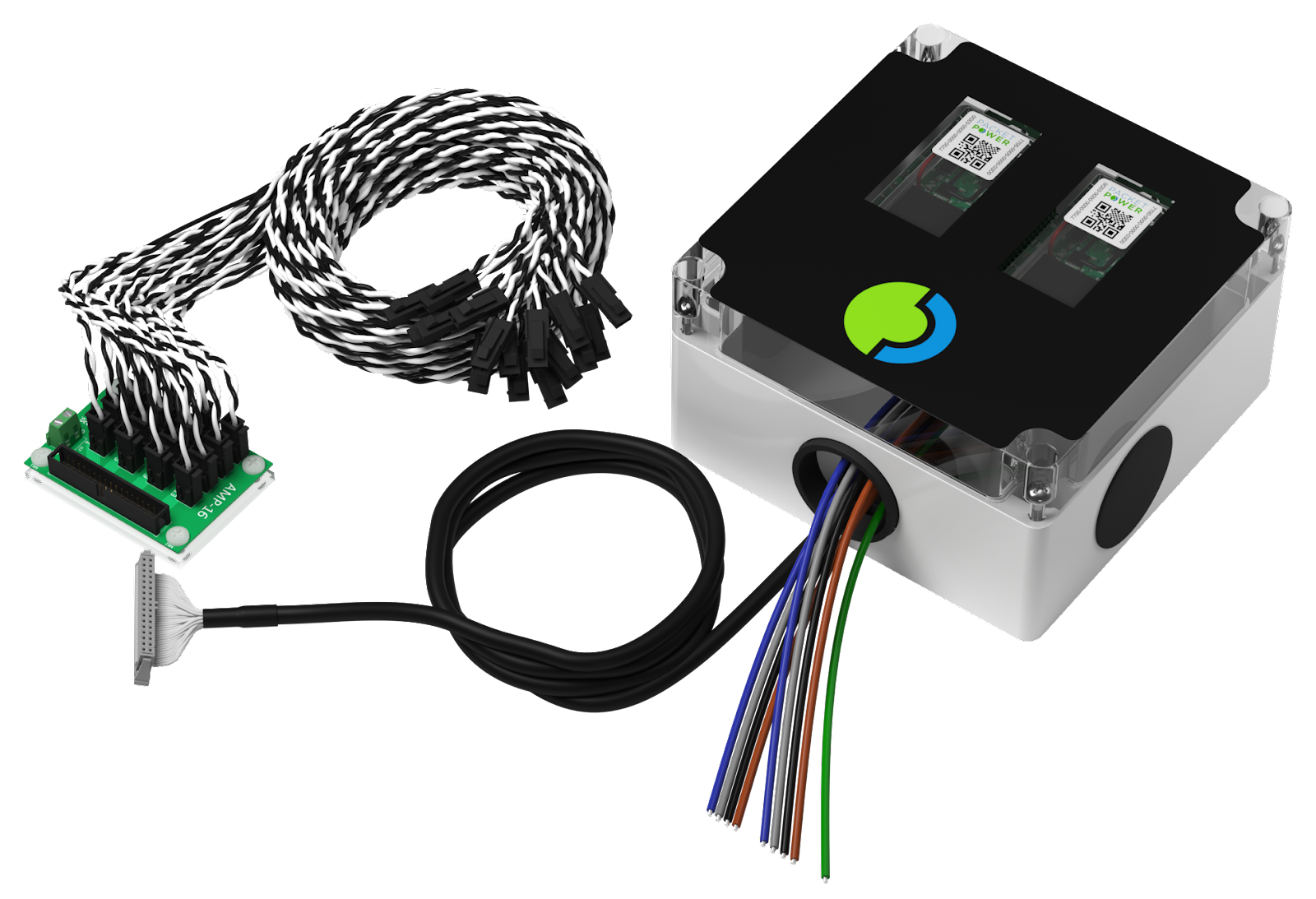

BGSXX OLED Model

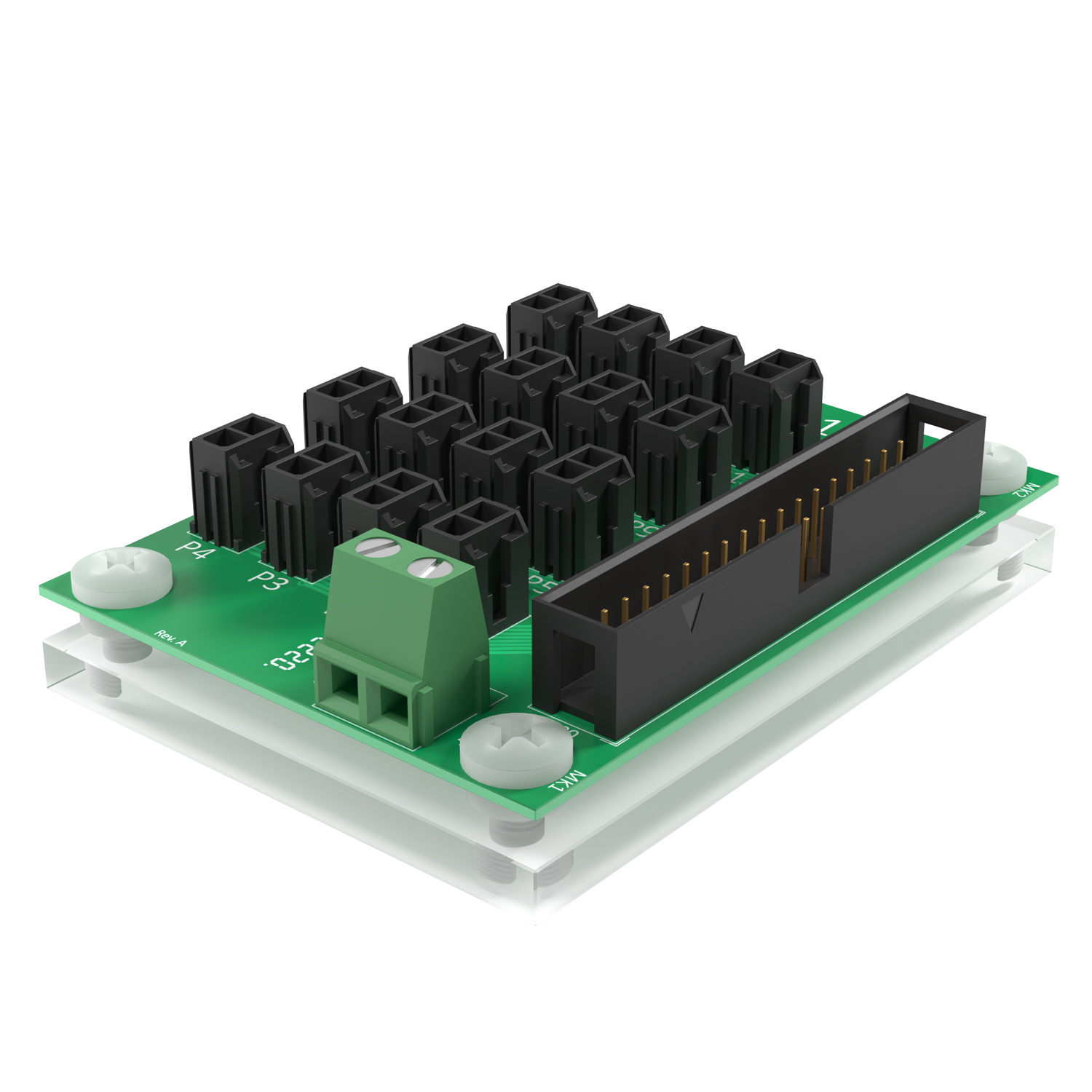

CT Interconnect Board

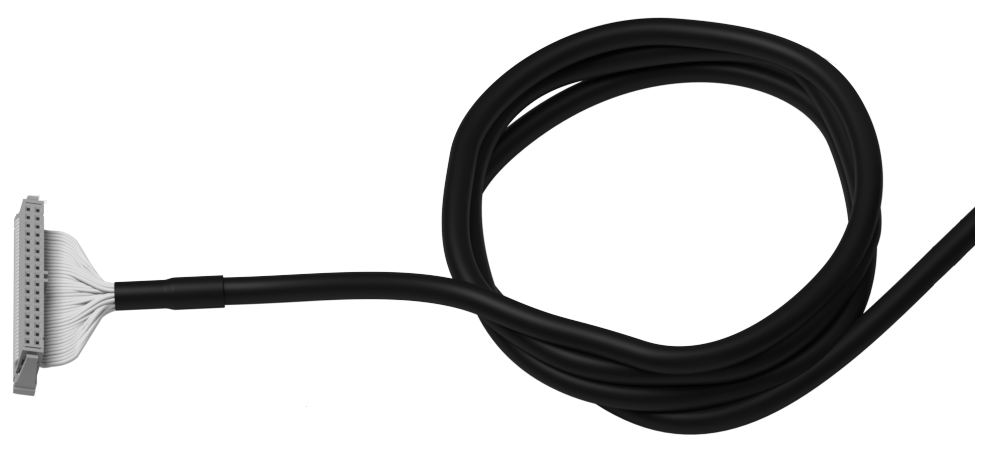

CT Ribbon Cable

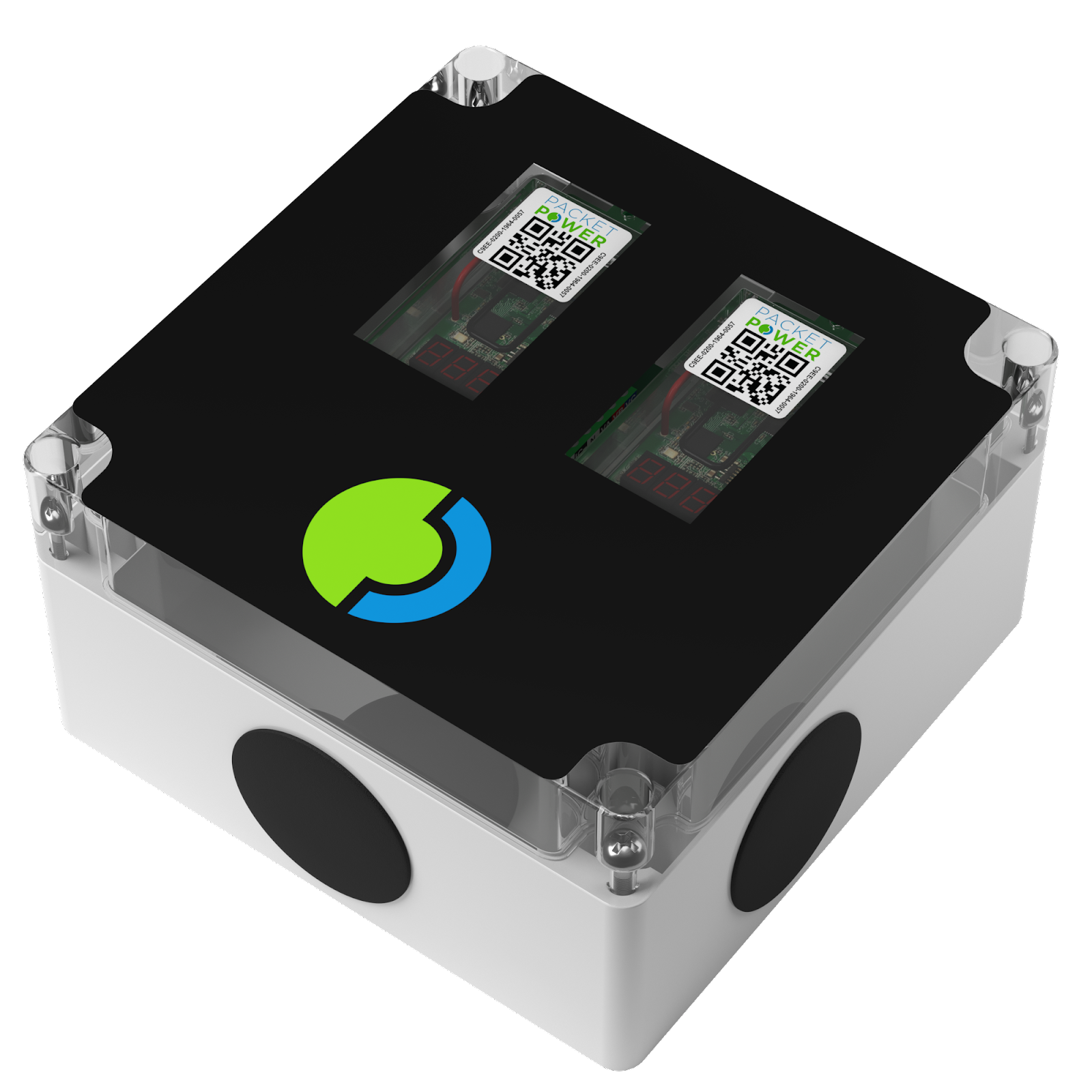

BGS16

CTs:  Up to 16

Dimensions:  6.3 x 6.3 x 3.6 in  (160 x 160 x 92 mm)

CT Interconnect Boards: 1

View BGS16 Data Sheet for detailed information on models, components, technical specifications, mounting options, wire exits, etc.

View BGS16 Installation and Operations Manual for detailed information on installation and operations.

BGS32

CTs:  Up to 32

Dimensions:  9.5 x 6.3 x 3.8 in  (241 x 160 x 96 mm)

CT Interconnect Boards: 2

View BGS32 Data Sheet for detailed information on models, components, technical specifications, mounting options, wire exits, etc.

View BGS32 Installation and Operations Manual for detailed information on installation and operations.

BGS72



CTs:  Up to 72

Dimensions:  14 x 12 x 2.5 in  (356 x 305 x 64 mm)

CT Interconnect Boards: 3 - 5

View BGS72 Data Sheet for detailed information on models, components, technical specifications, mounting options, wire exits, etc.

View BGS72 Installation and Operations Manual for detailed information on installation and operations.

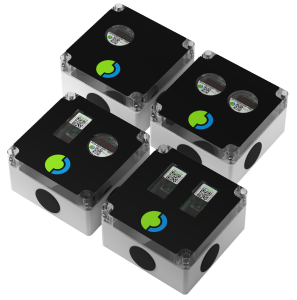

BGSXXH Multi-Circuit Monitors  (480V and 600/377V AC Input Voltage)

These multi-circuit monitors leverage a high voltage power meter with a display similar to the BGXX multi-circuit monitors. They do not include CT interconnect boards and cables.

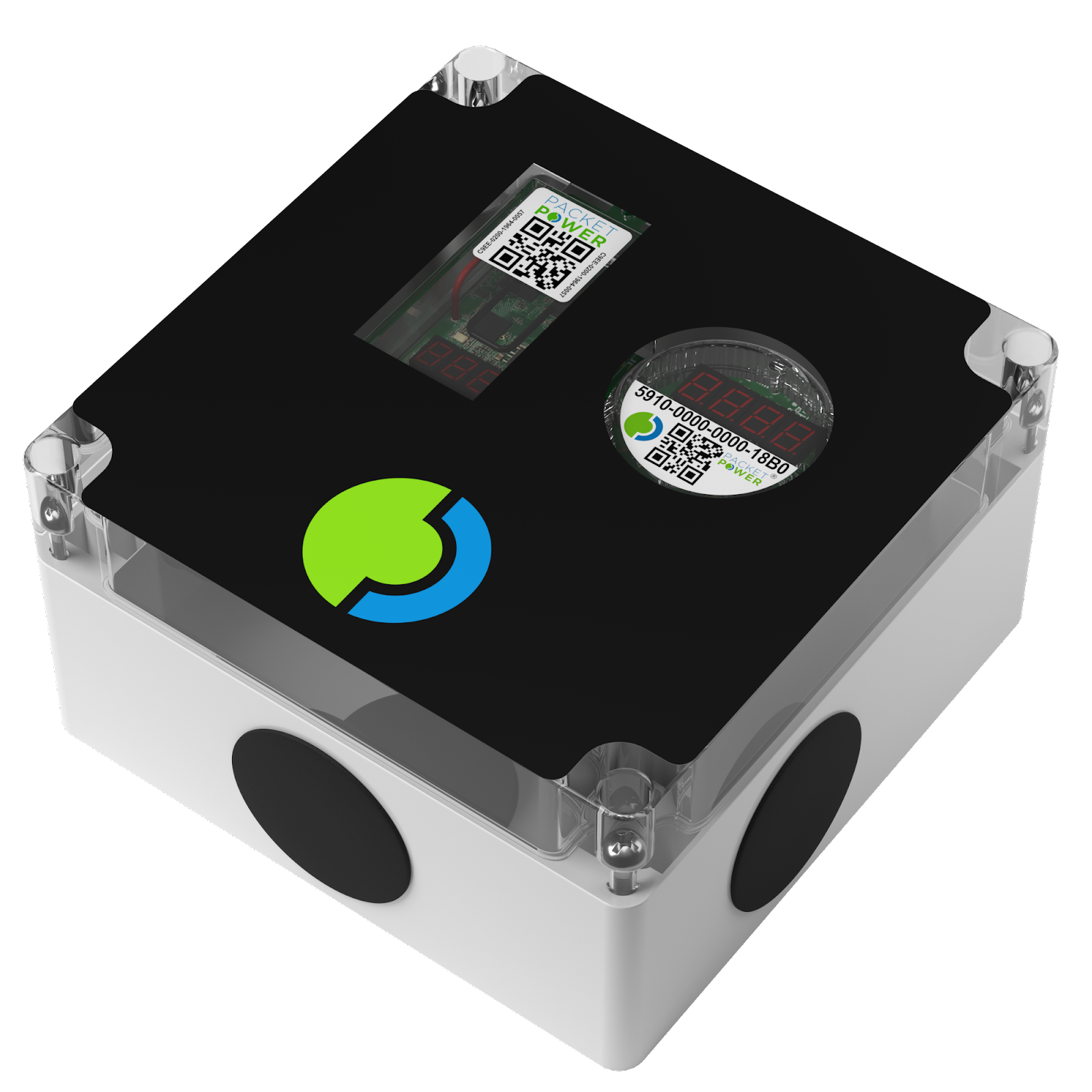

BGS9H

CTs:  Up to 9

Dimensions: 6.3 x 6.3 x 3.6 in  (160 x 160 x 92 mm)

View BGS9H Data Sheet for detailed information on models, components, technical specifications, mounting options, wire exits, etc.

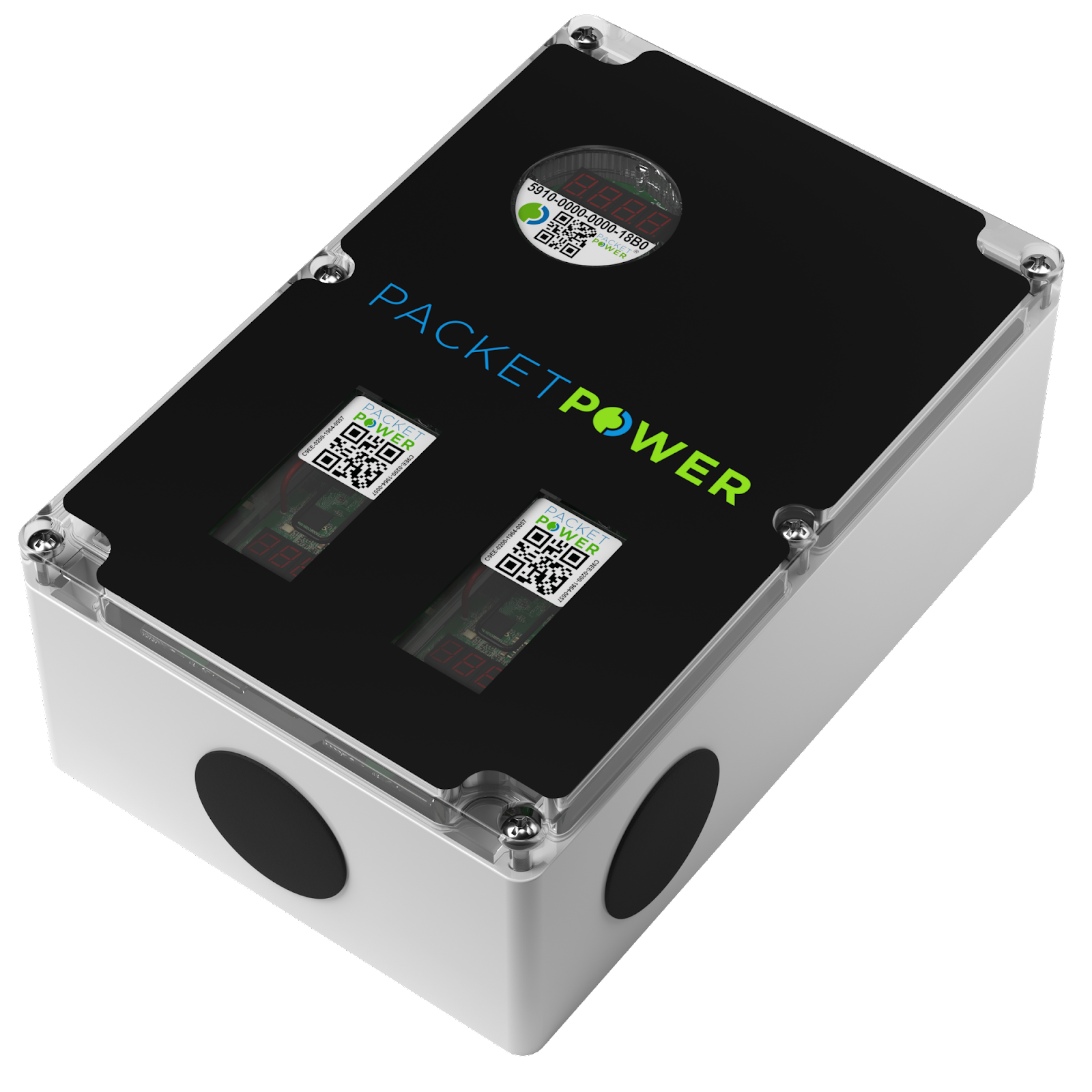

BGS15H

CTs:  Up to 15

Dimensions: 9.5 x 6.3 x 3.8 in  (241 x 160 x 96 mm)

View BGS15H Data Sheet for detailed information on models, components, technical specifications, mounting options, wire exits, etc.

BGS18H

CTs:  Up to 18

Dimensions:  10 x 12 x 2.5 in  (254 x 305 x 64 mm)

View BGS18H Data Sheet for detailed information on models, components, technical specifications, mounting options, wire exits, etc.

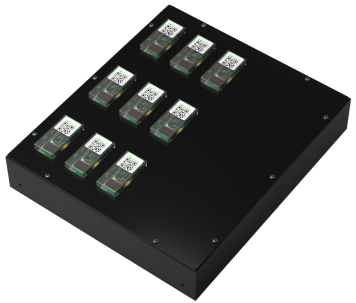

BGS27H

CTs:  Up to 27

Dimensions:  14 x 12 x 2.5 in  (356 x 305 x 64 mm)

View BGS27H Data Sheet for detailed information on models, components, technical specifications, mounting options, wire exits, etc.


BGXX Models (Red LED Display)

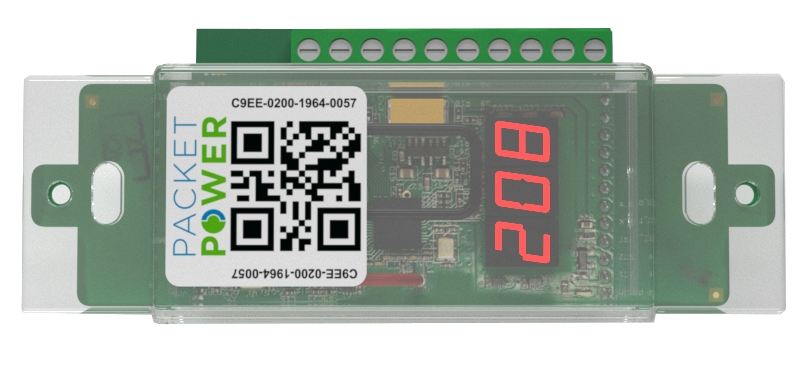

BGXX Model

BGO2

CTs:  1-12

Dimensions: 6.3 x 6.3 x 3.6 in  (160 x 160 x 92 mm)

View BG02 Technical Specifications for detailed information on measurements, mounting options, wire exits, etc.

View BG02 Quick Start Guide for installation instructions.

BGO4

CTs:  2-21

Dimensions:  9.5 x 6.3 x 3.8 in  (241 x 160 x 96 mm)

View  BG04 Technical Specifications for detailed information on measurements, mounting options, wire exits, etc.

View BG04 Quick Start Guide for installation instructions.

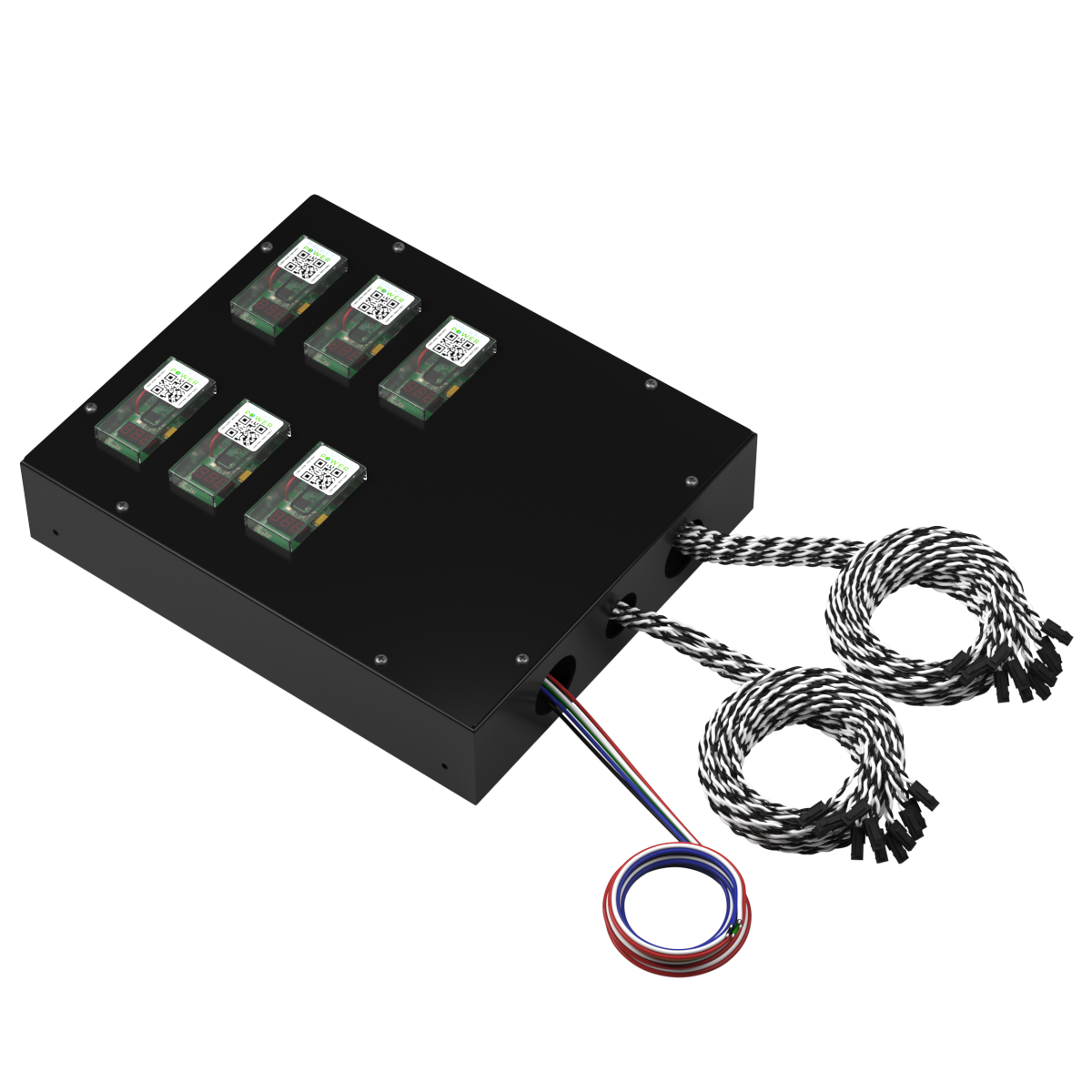

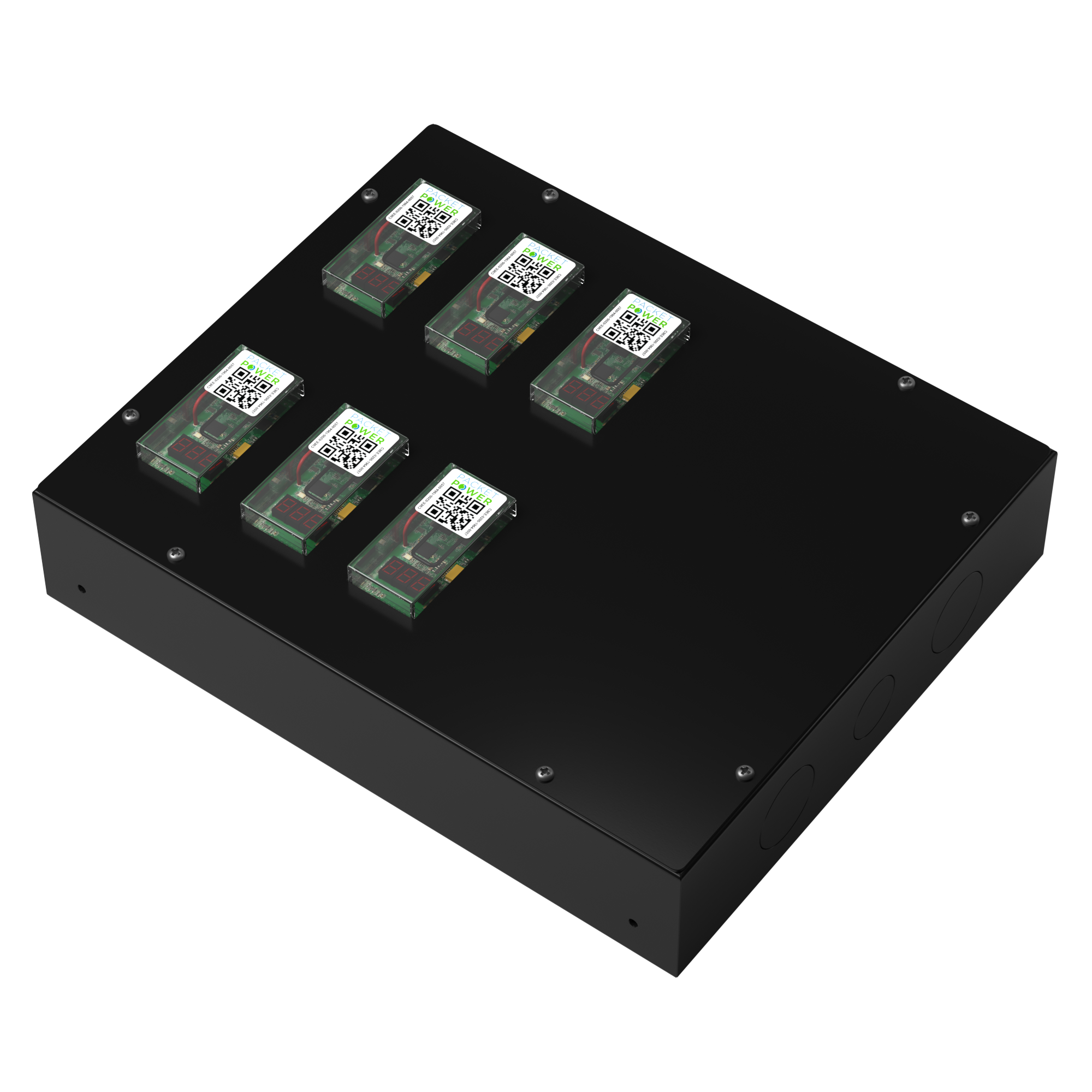

BGO6

CTs:  4-18

Dimensions:  10 x 12 x 2.5 in  (254 x 305 x 64 mm)

View BG06 Technical Specifications for detailed information on measurements, mounting options, wire exits, etc.

BGO9

CTs:  7-27

Dimensions:  14 x 12 x 2.5 in  (356 x 305 x 64 mm)

View BG09 Technical Specifications for detailed information on measurements, mounting options, wire exits, etc.
