Accessing MIB files

MIB files can be downloaded directly from the Gateway Console.

See: SNMP for Wireless Gateways for more instructions on downloading MIBs

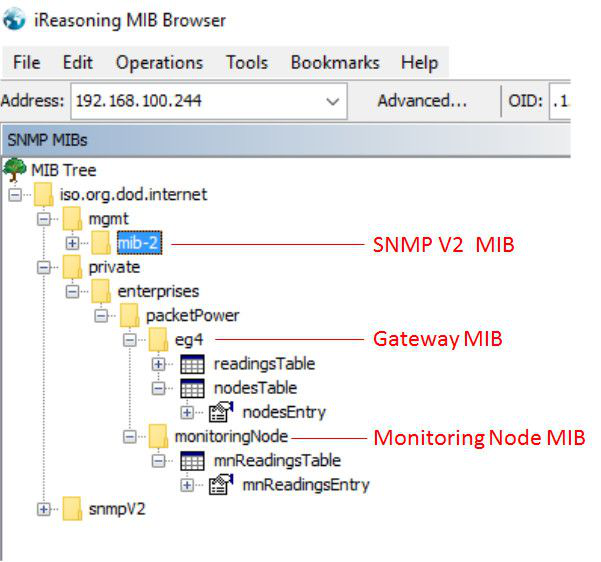

There are two MIB files. The standard EG4 file is for use in standard SNMP applications. The VIP MIB file is used when using Virtual IP addresses for each monitoring node instead of the standard 16 digit GUID embedded in the OID.

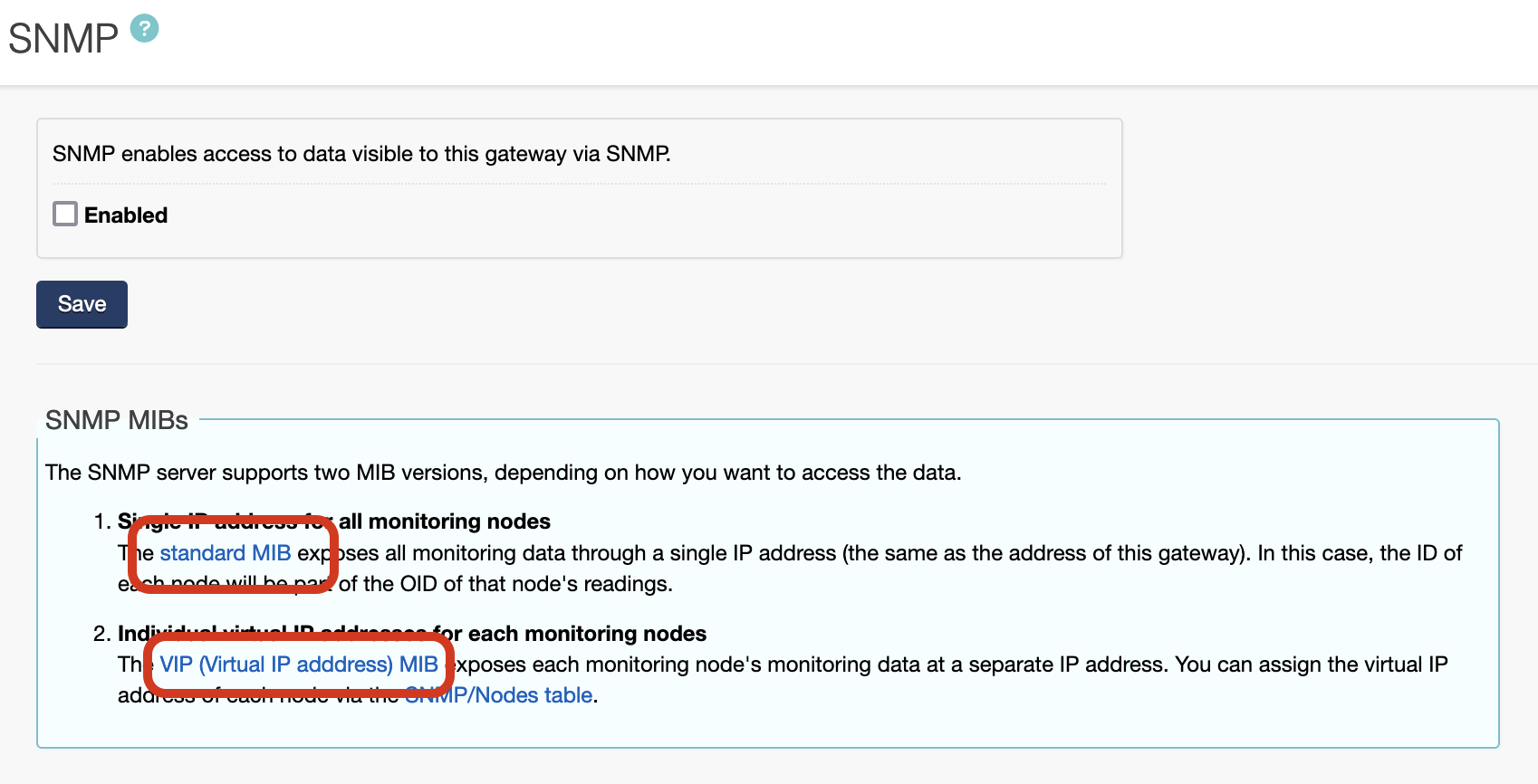

Screenshot 2024-08-08 at 12.31.54 PM.png

If the link is not available on the console this may require that the Gateway firmware be upgraded
