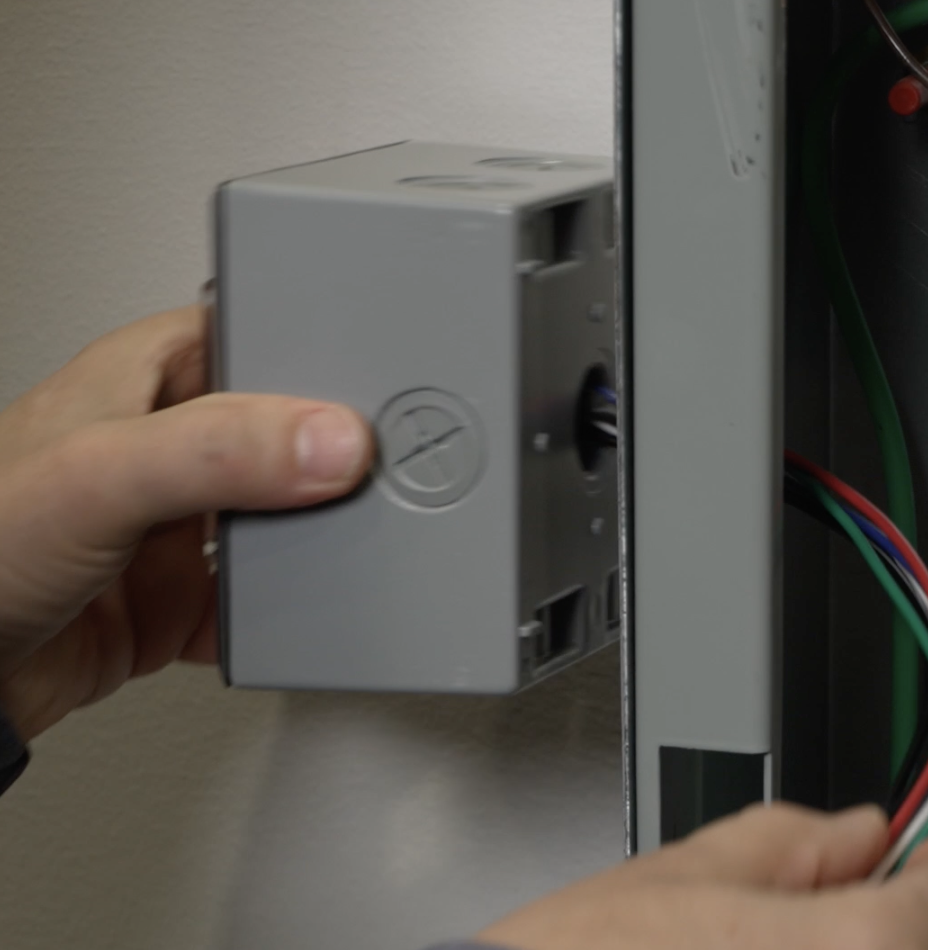

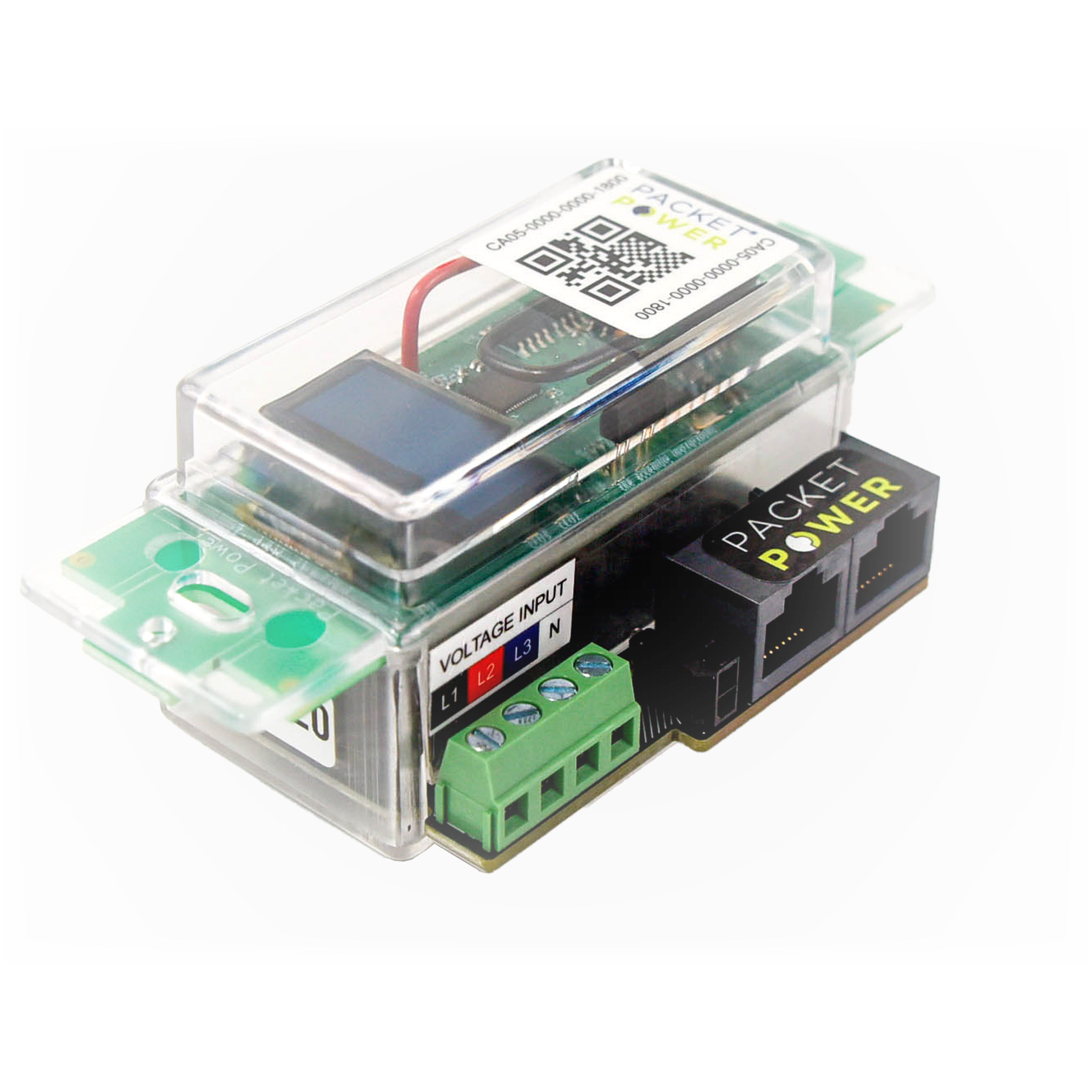

In most cases the monitoring module is installed a small standard enclosure next to or on one of the side walls of the monitored panel. Enclosure will vary depending on system configuration and data interface choice and may include a double gang-box, NEMA 6x6 or NEMA 6x9 enclosure. In most cases the module, power supply, the WHA-M harness and optional data interface will be already be installed inside the enclosure. Module installation consists of mounting the box and feeding the the WHA-M harness connector and the current sensor interface cable (PPBUS) into the panel to be connected with the WHA-F fuse harness.
Wireless data connectivity version
The wireless data connectivity version of HDPM is available in double gang-box or NEMA 6x6 enclosures.

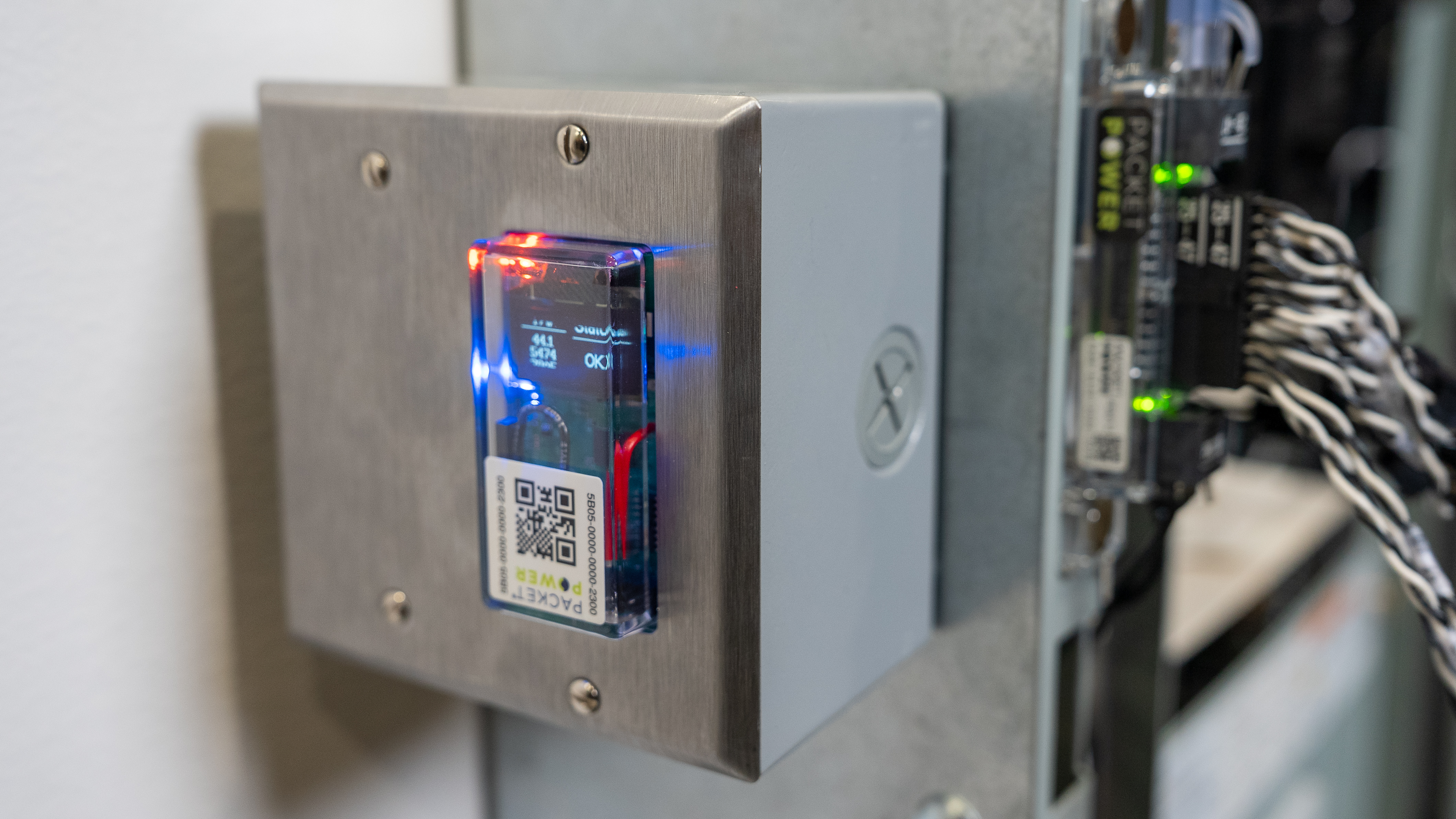

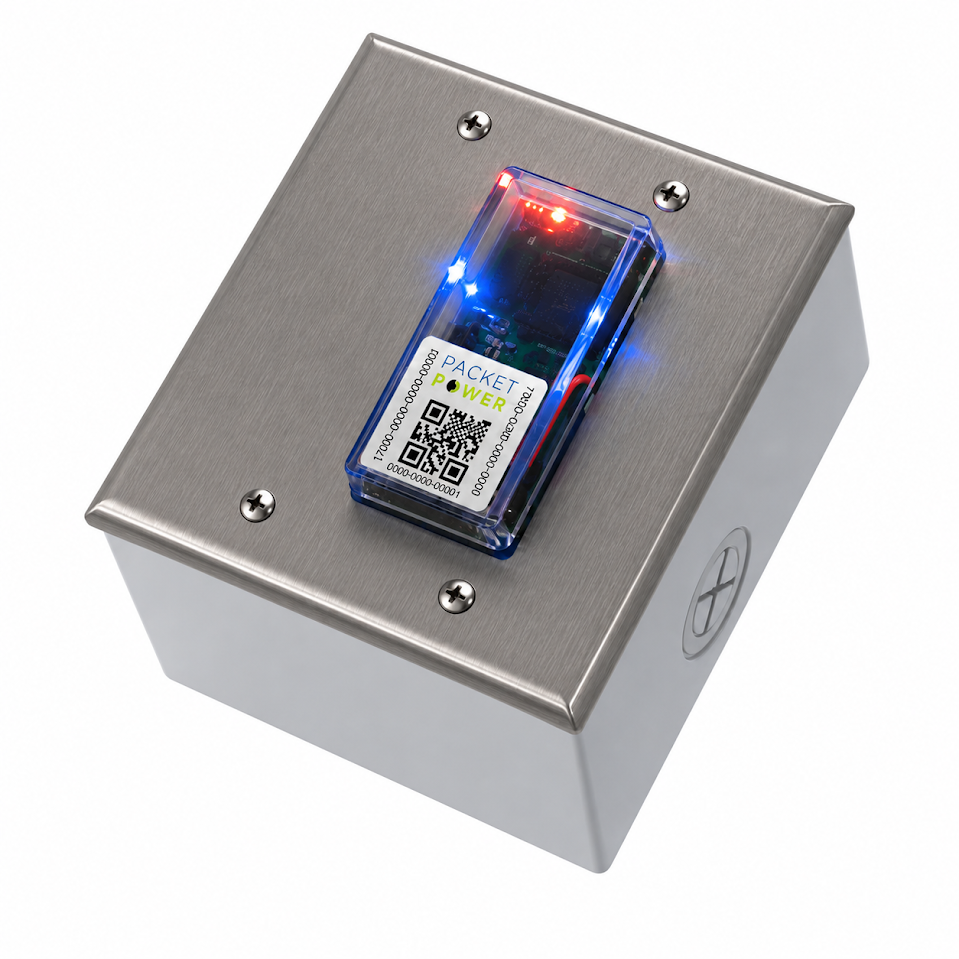

Double Gang-Box

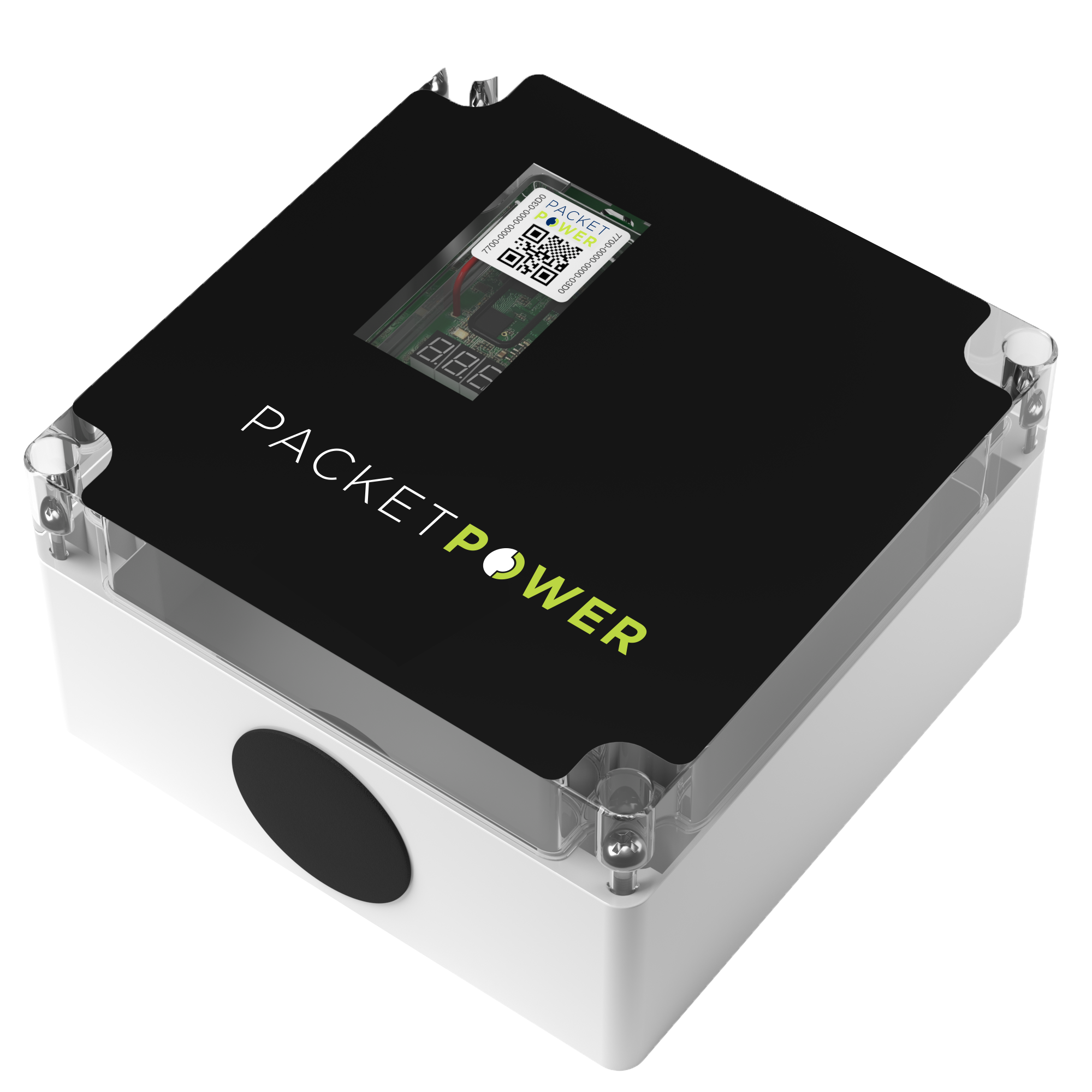

NEMA 6x6 Box
Wired data connectivity version

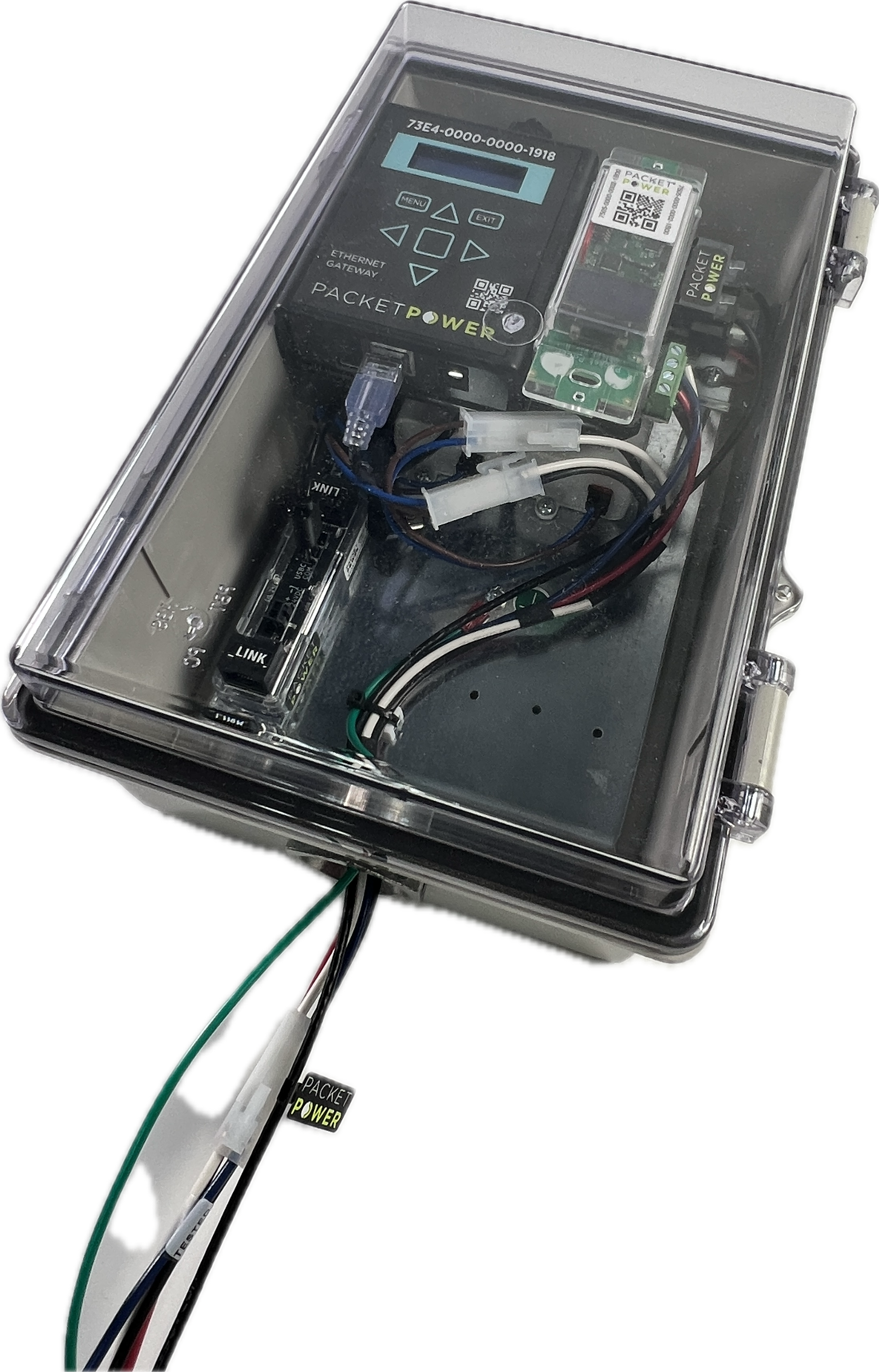

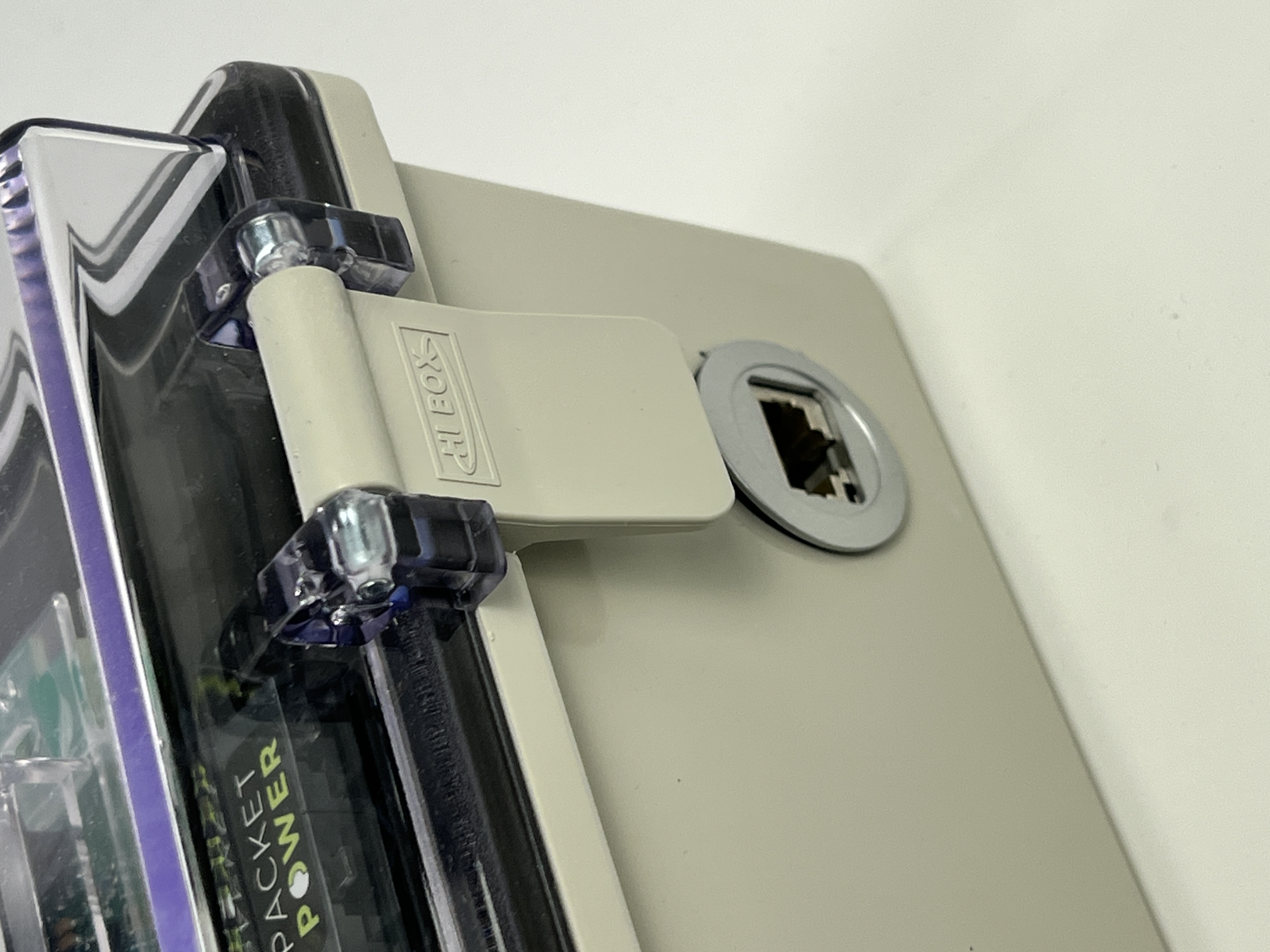

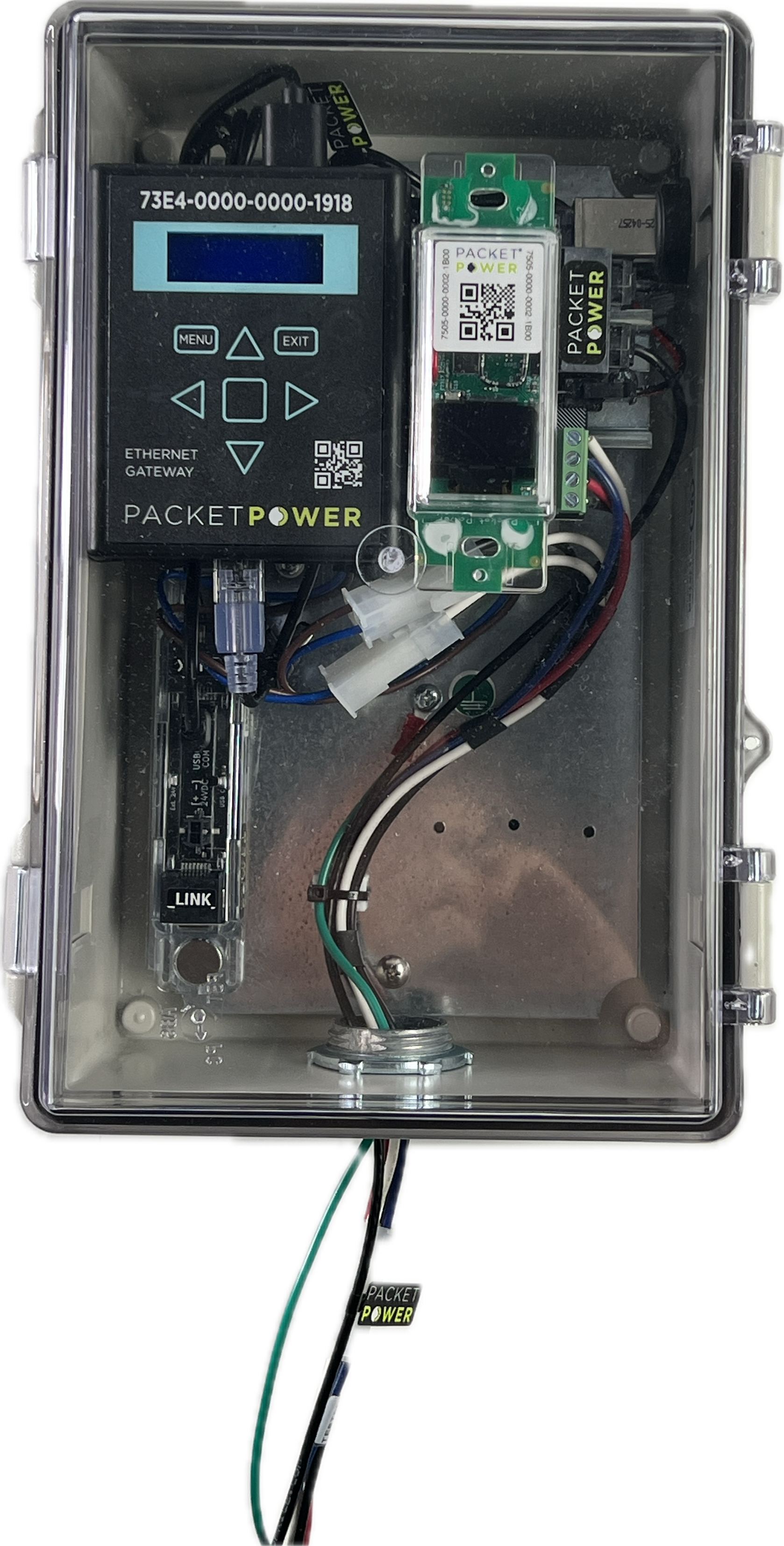

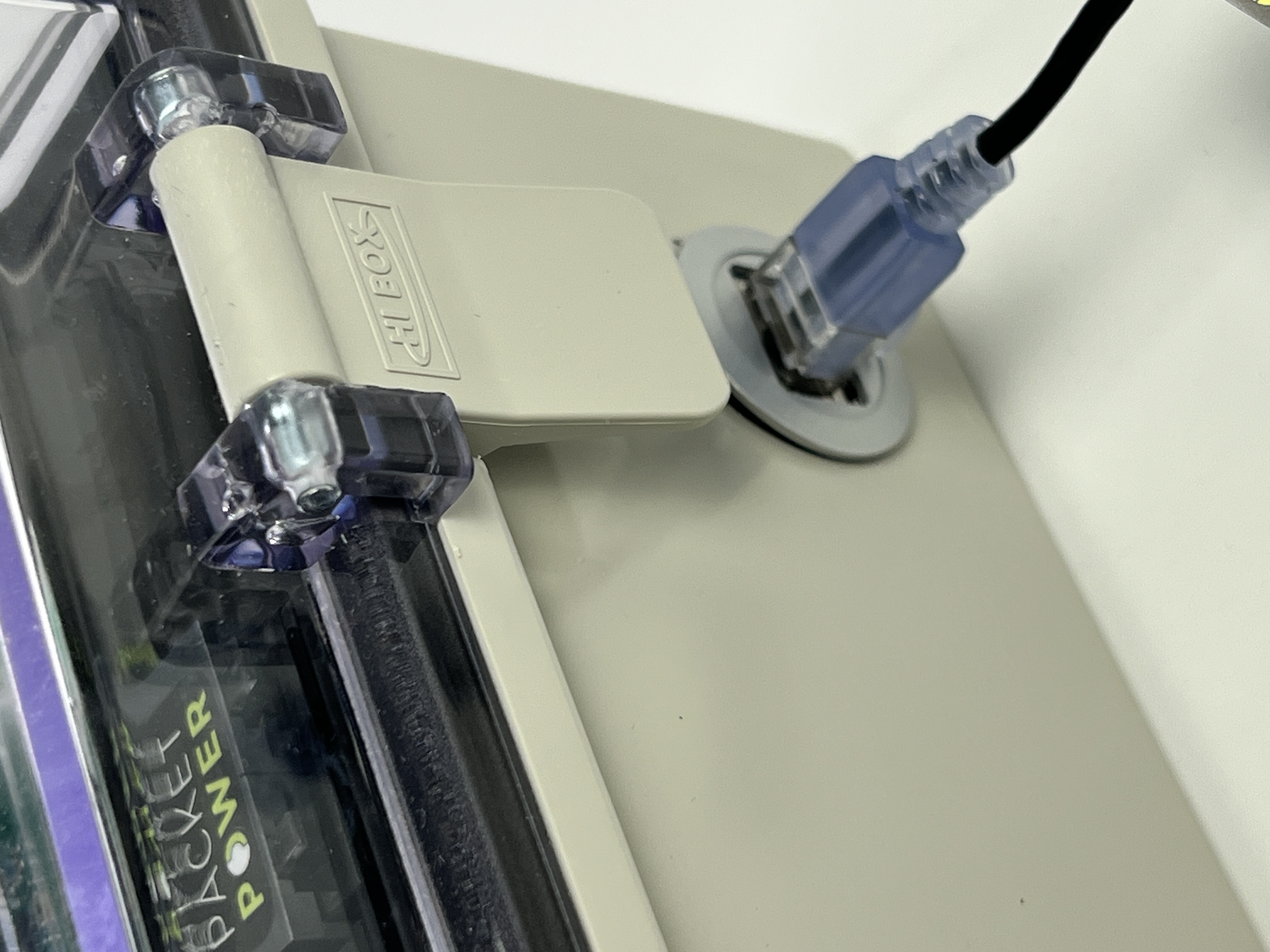

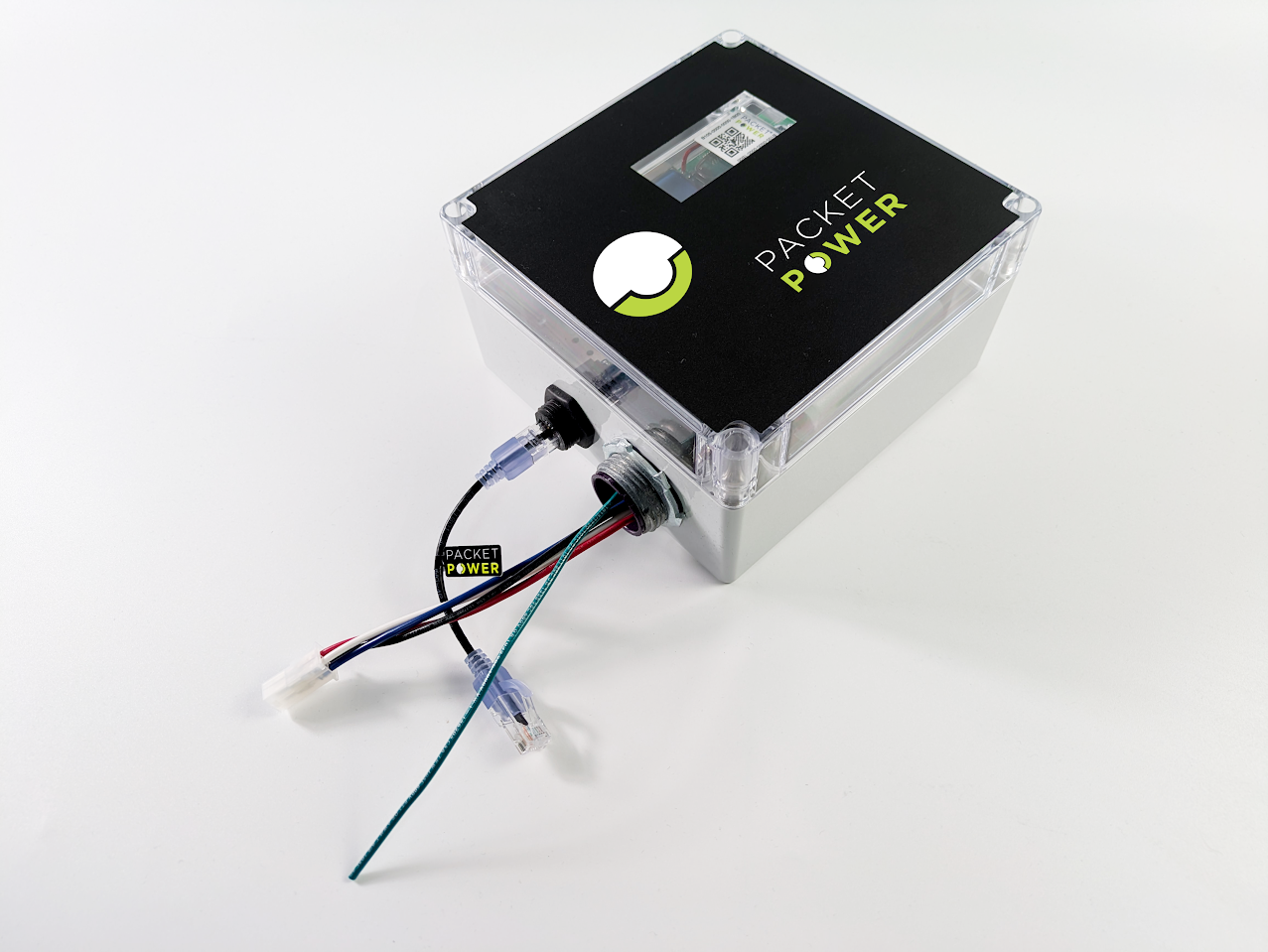

The wired data connectivity version of the HDPM is available in a NEMA 6x9 enclosure which is also equipped with an RJ-45 ethernet connector providing IP data connectivity to the system. The ethernet data cable is not supplied.
Components inside this Enclosure

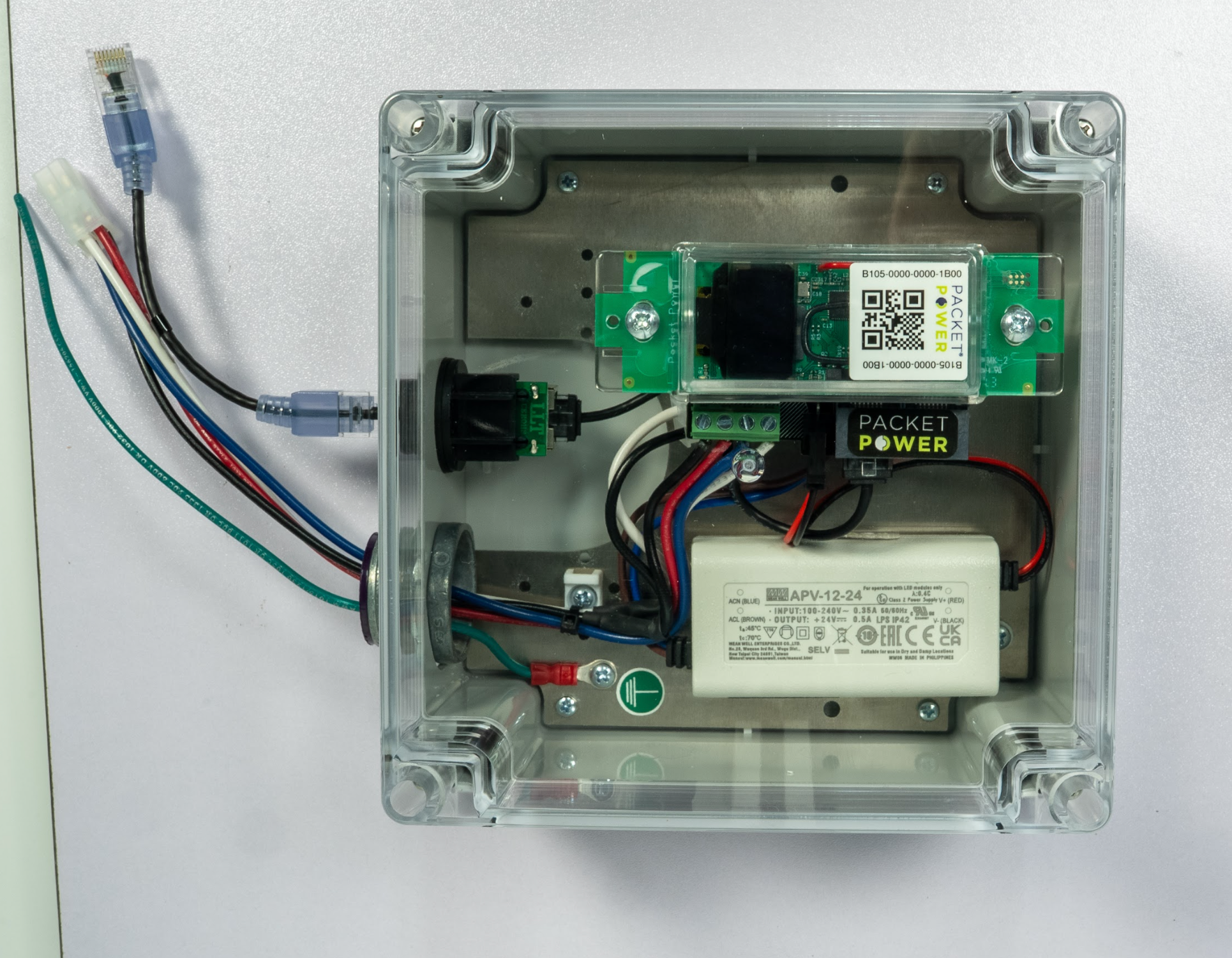

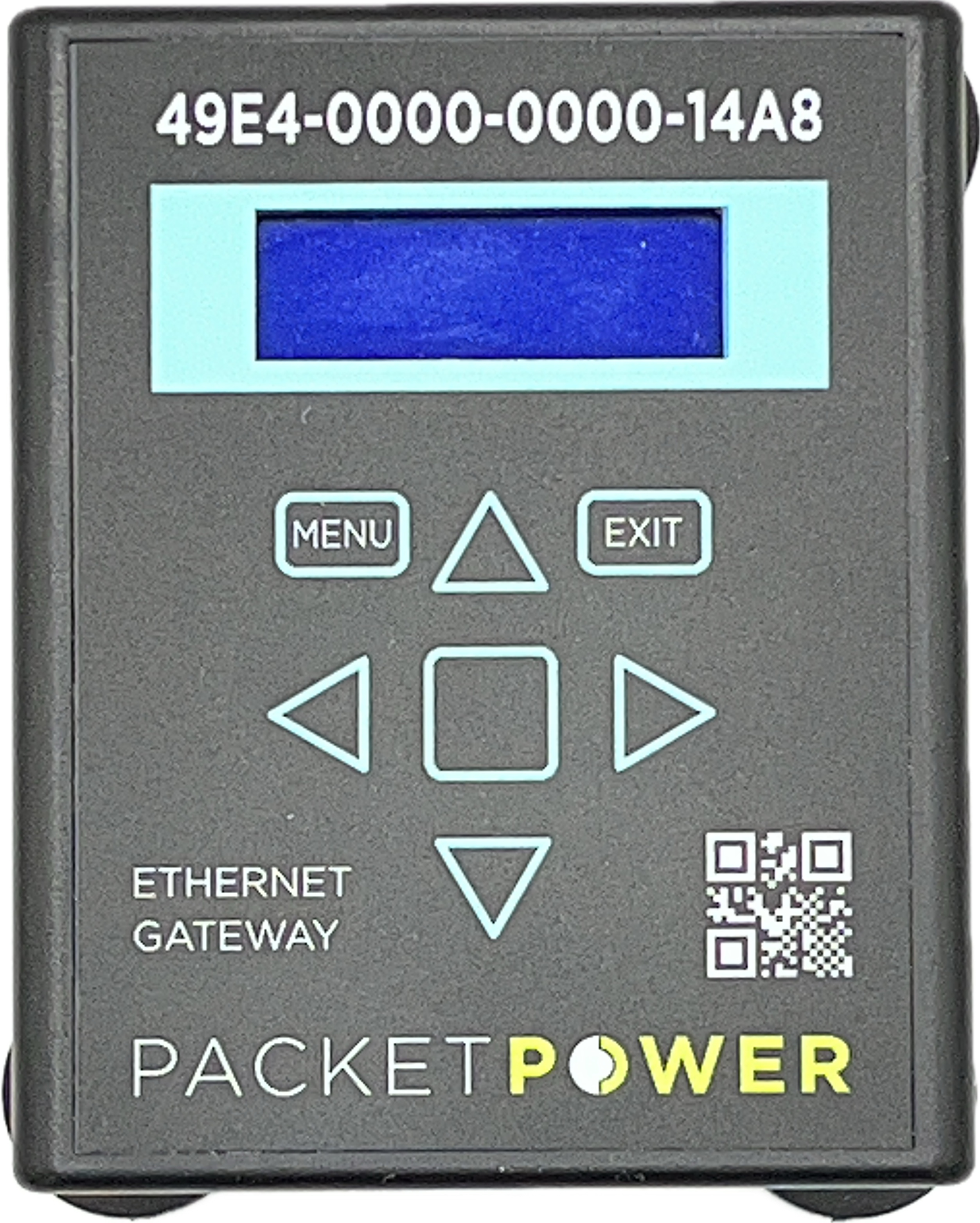

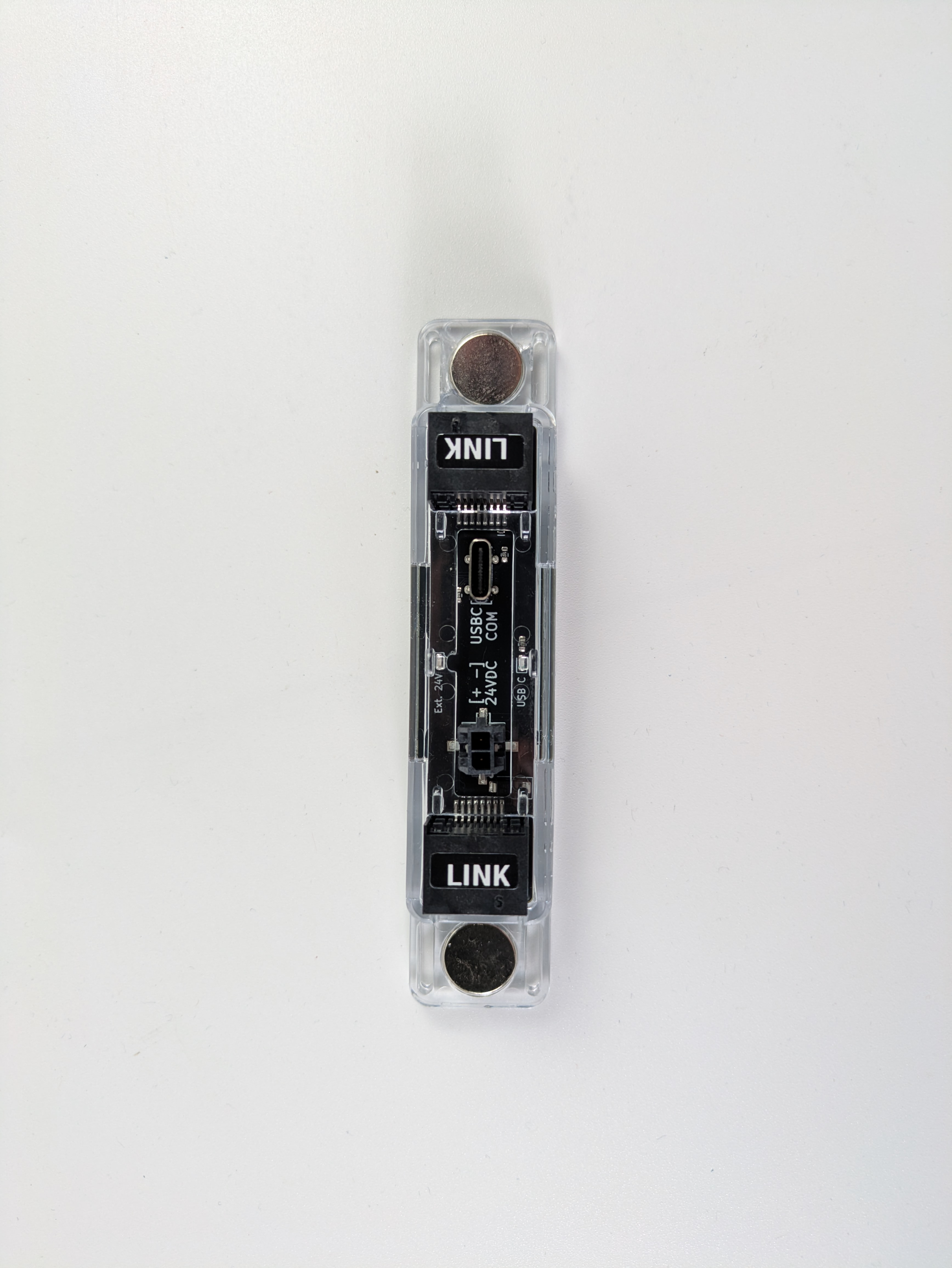

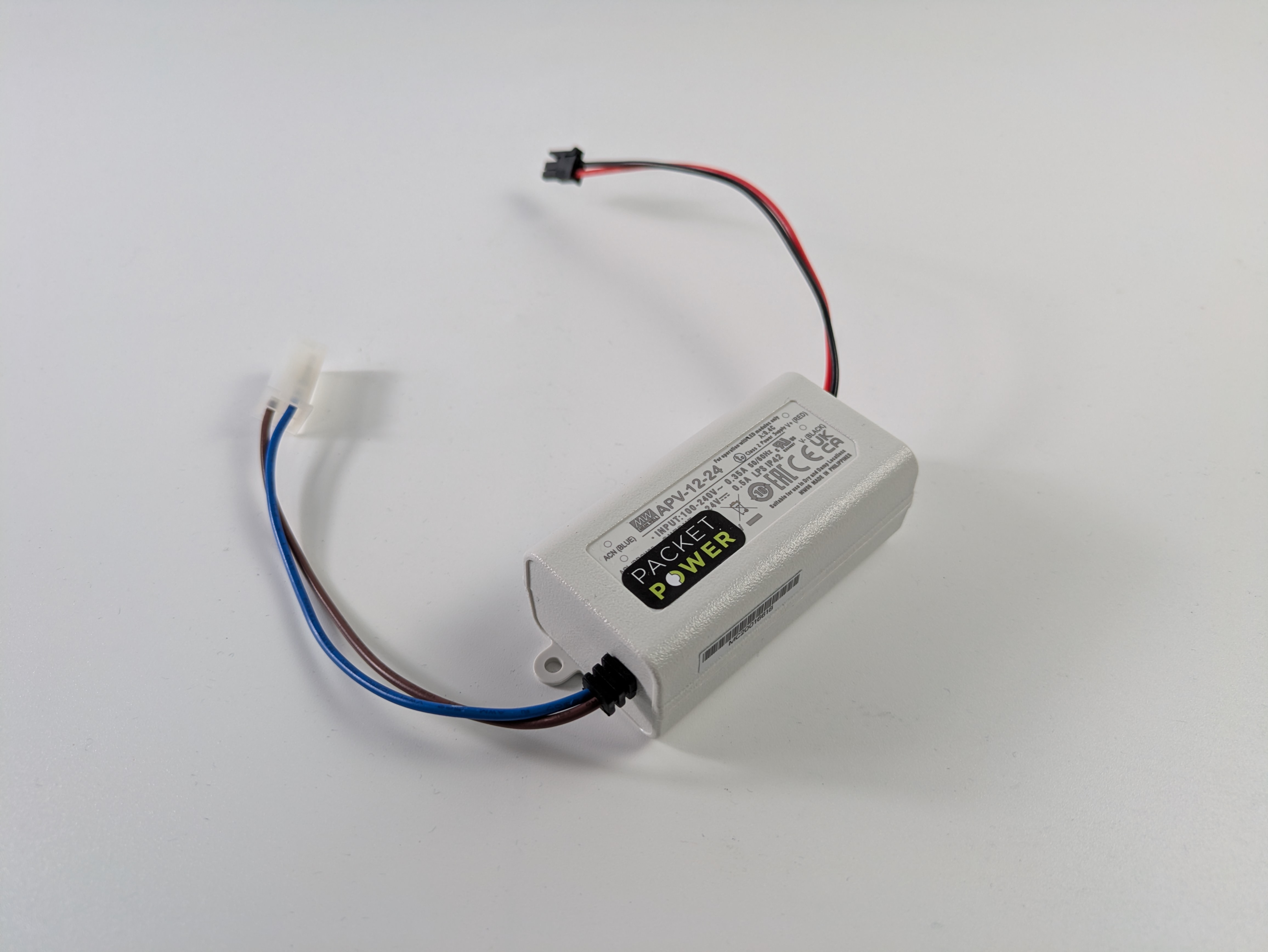

The wired data connectivity version of the HDPM has these components inside the NEMA 6x9 enclosure:
