System Components

The HDPM system consist of the following key components:

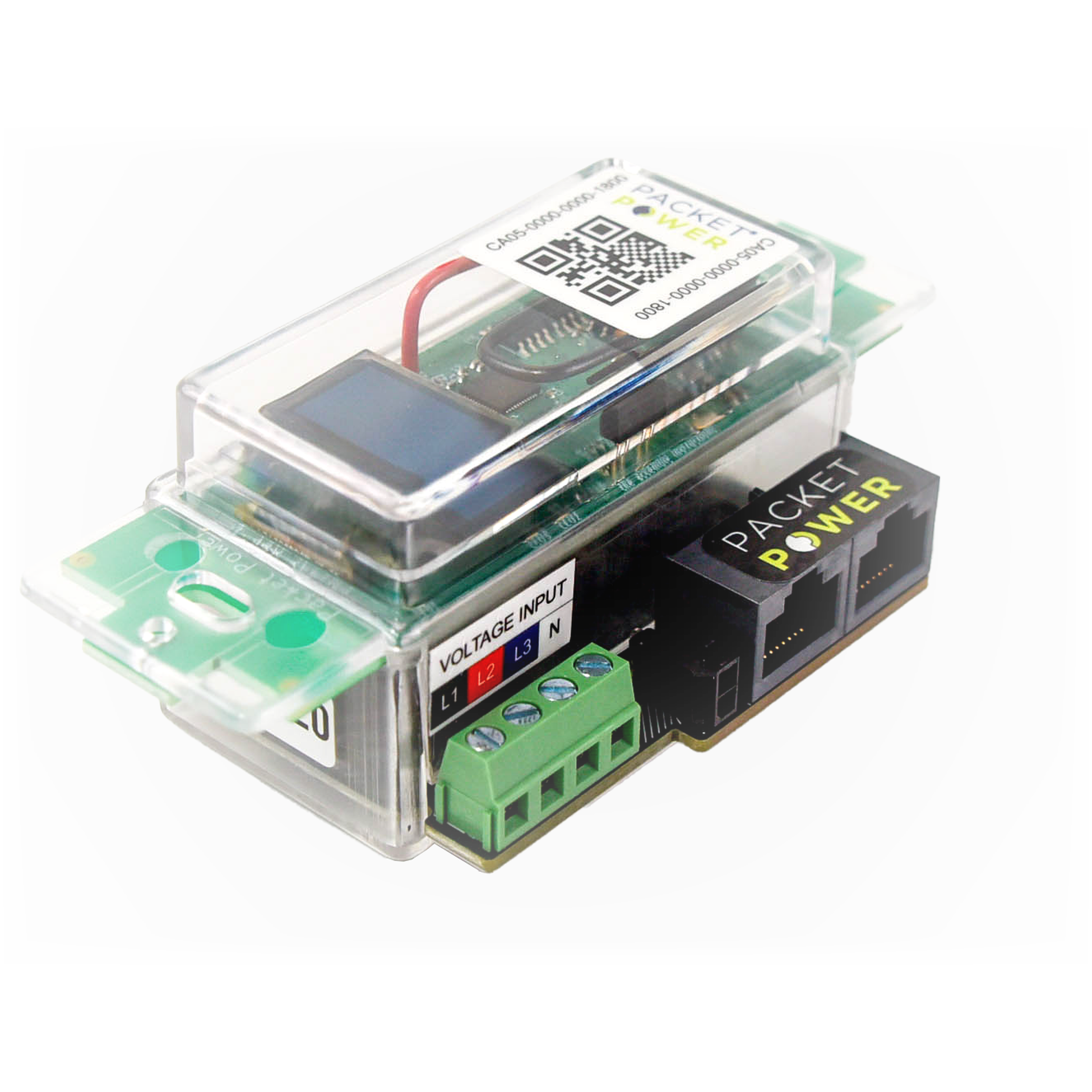

T120 top side angle_clean-20260424-012436.png
Power monitoring module

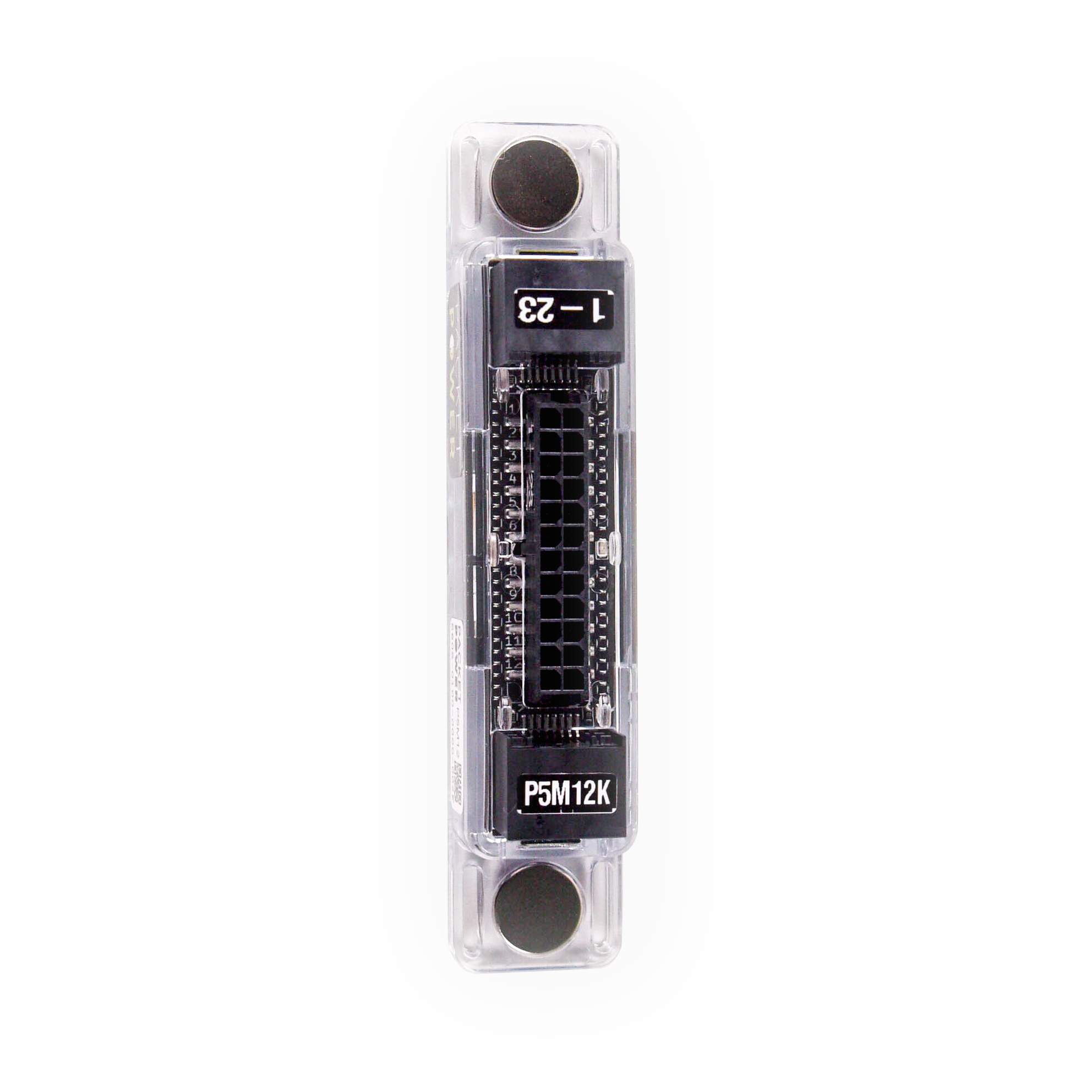

P5TM Top_clean-20260424-013145.png
Current sensor module

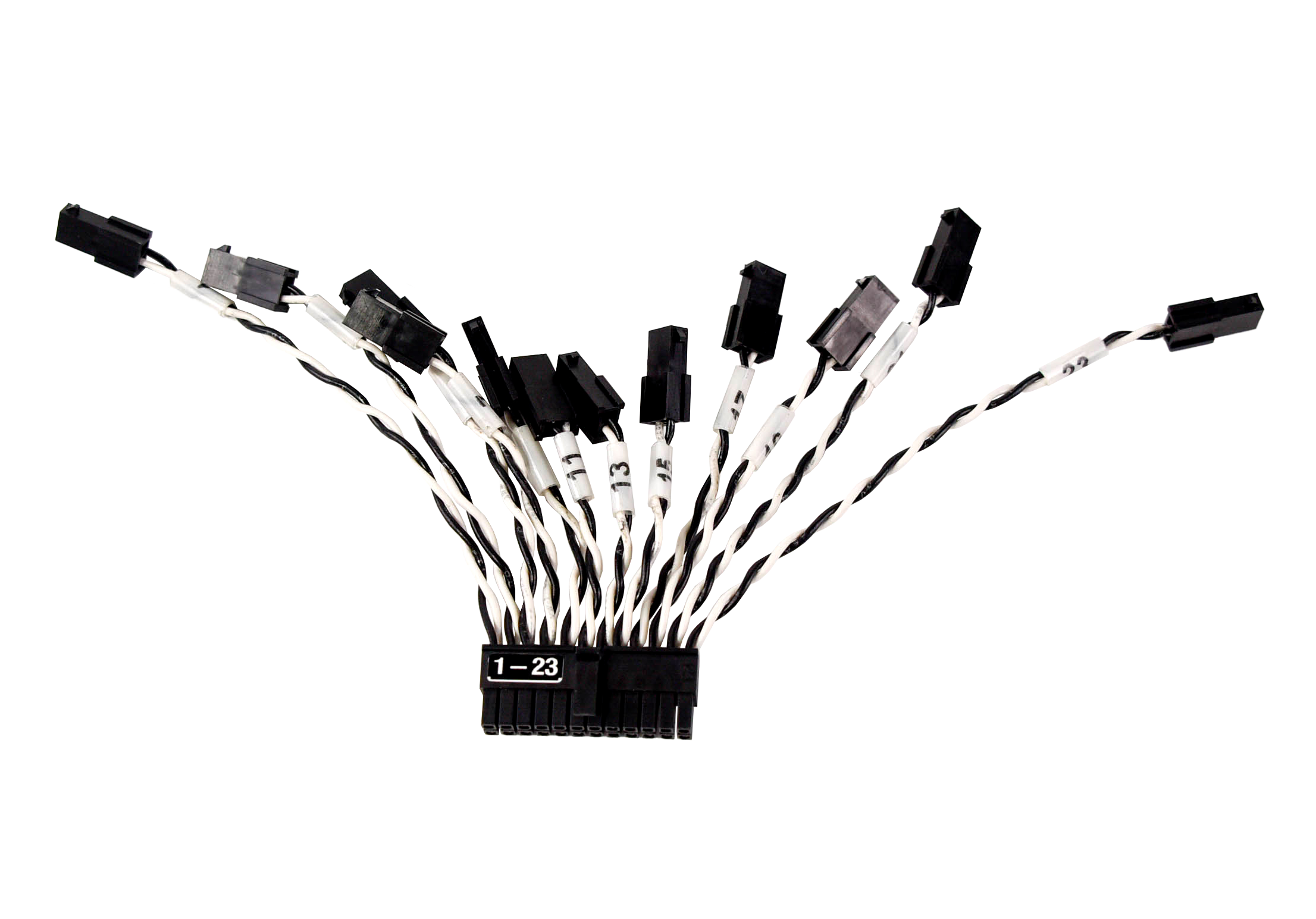

T120 CT Harness_web.png

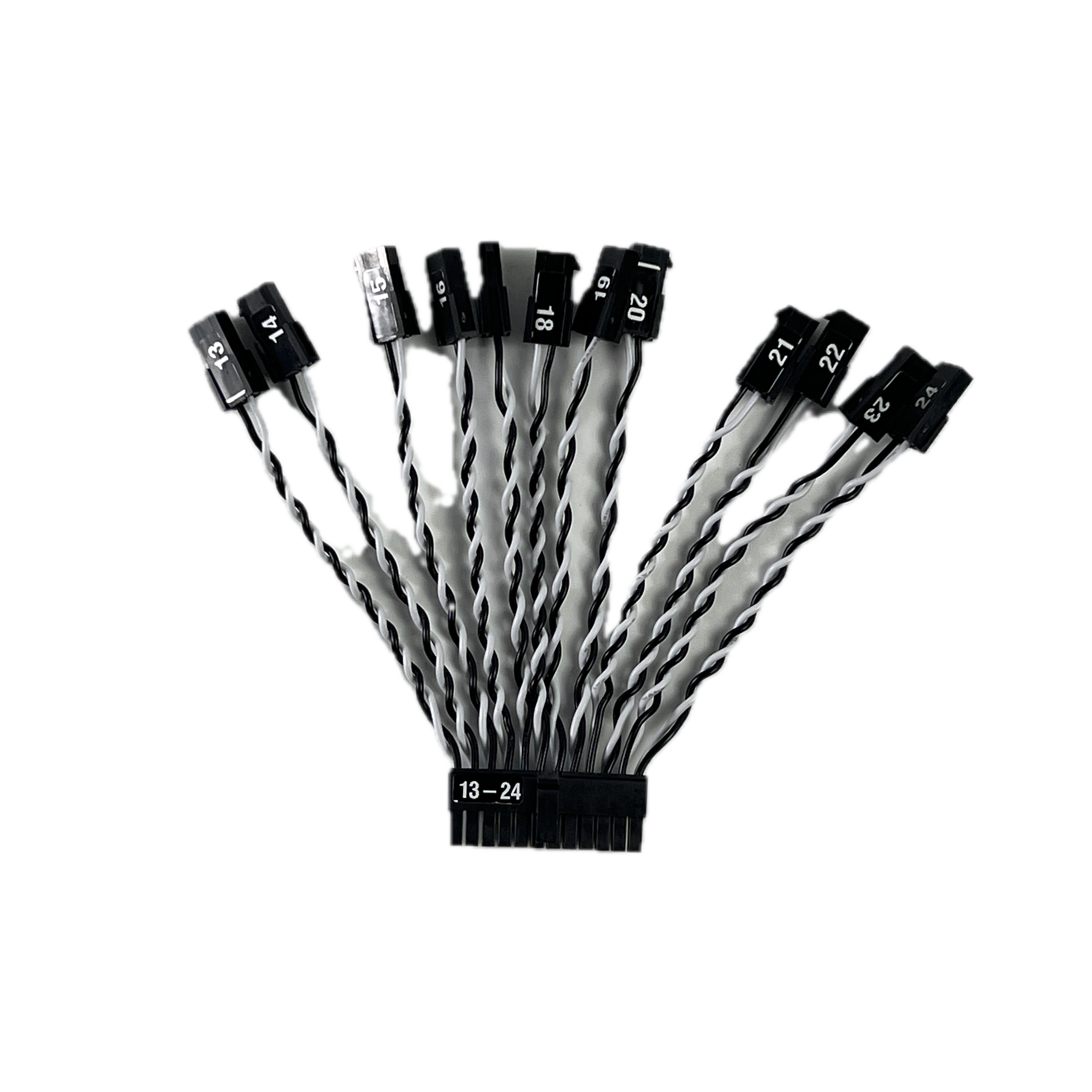

Current sensor harness

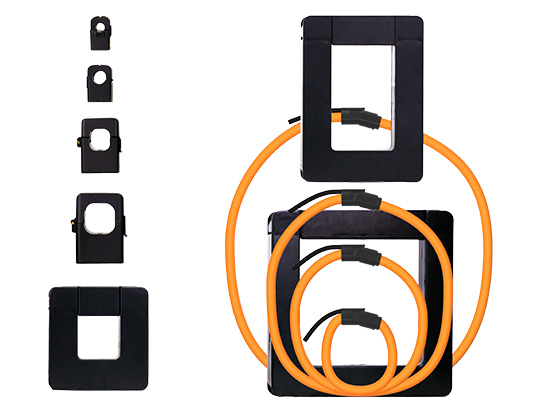

CT Collage-20260424-005301.jpg
Current sensors

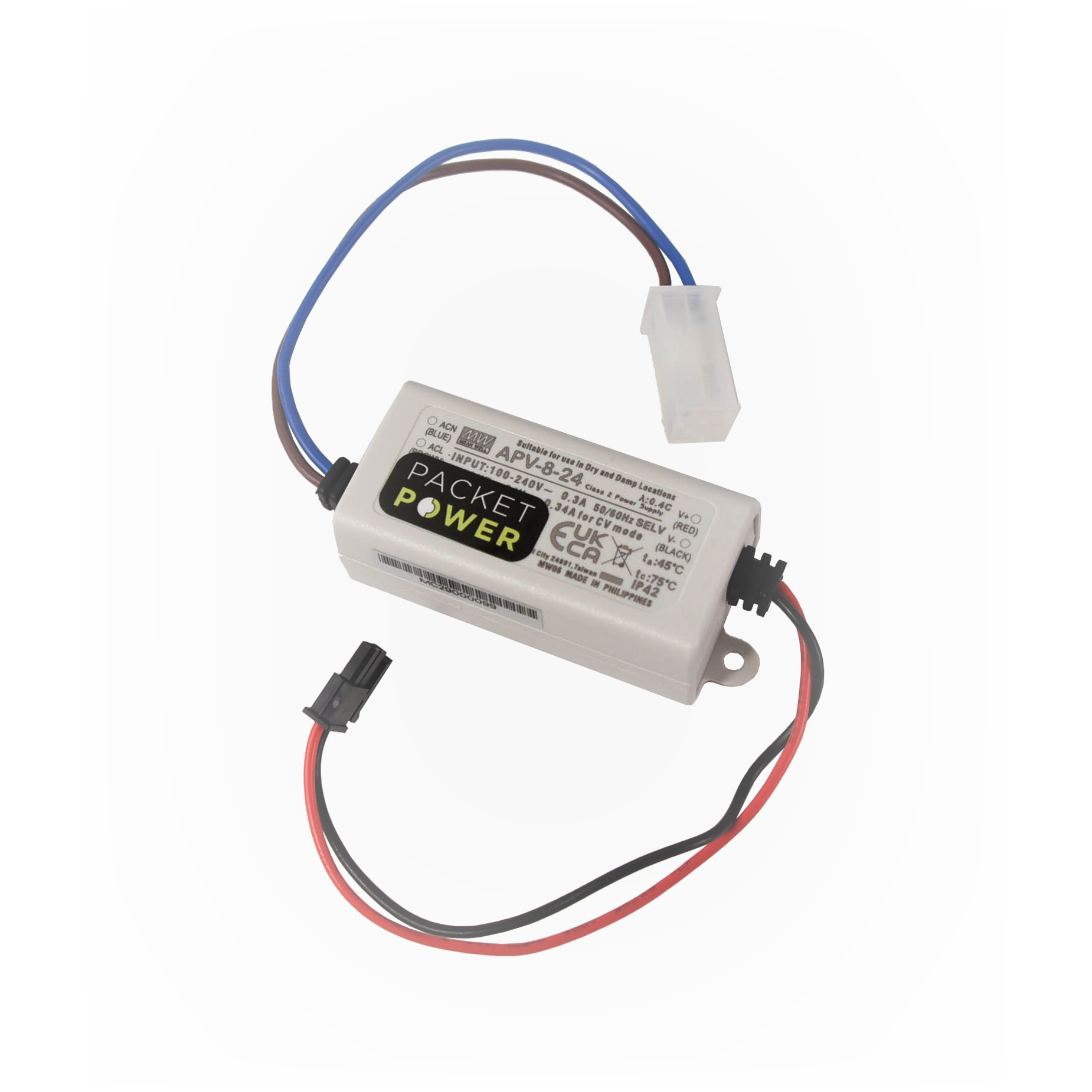

T120 small power supply V2_clean-20260424-012436.png
Power supply

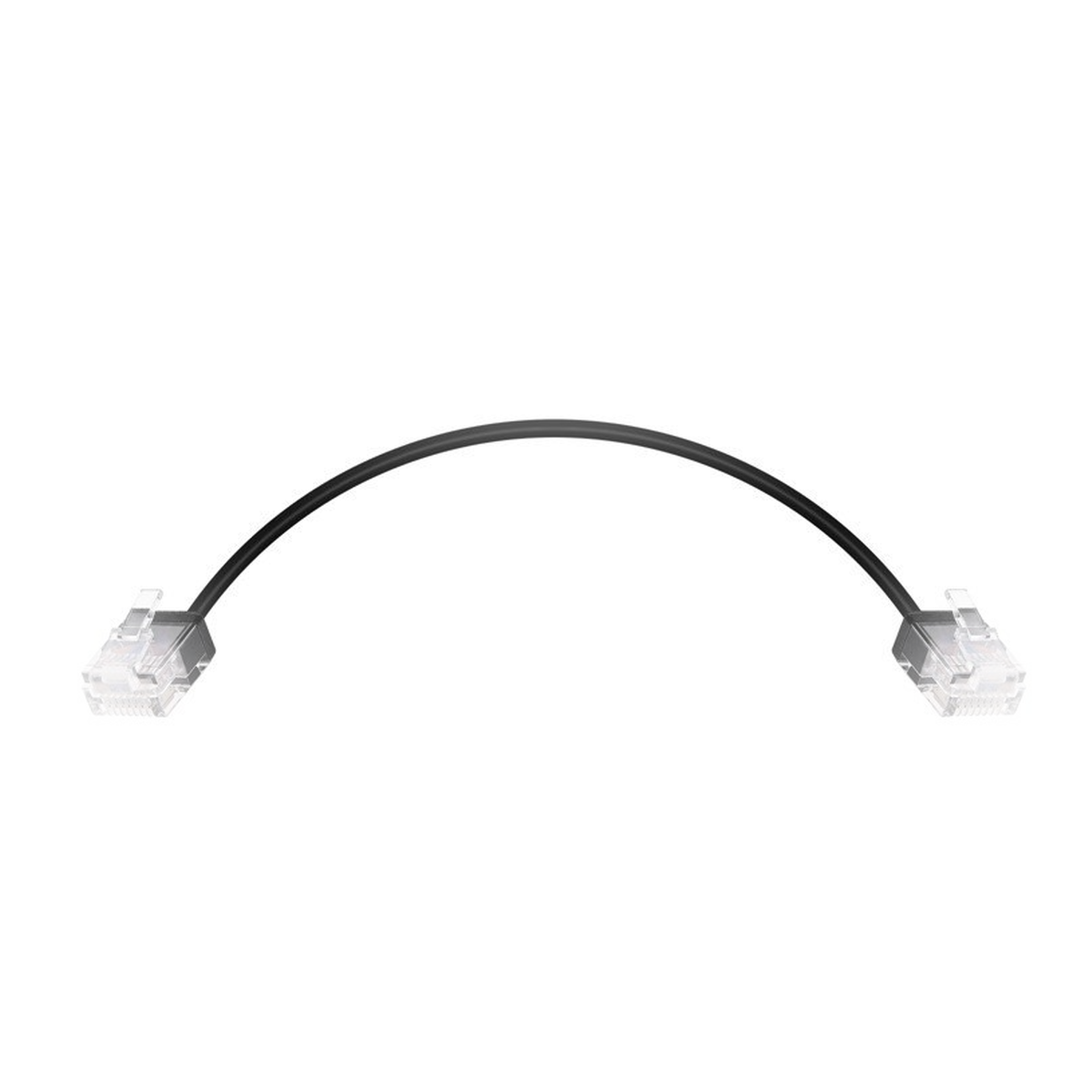

PPBUS cables

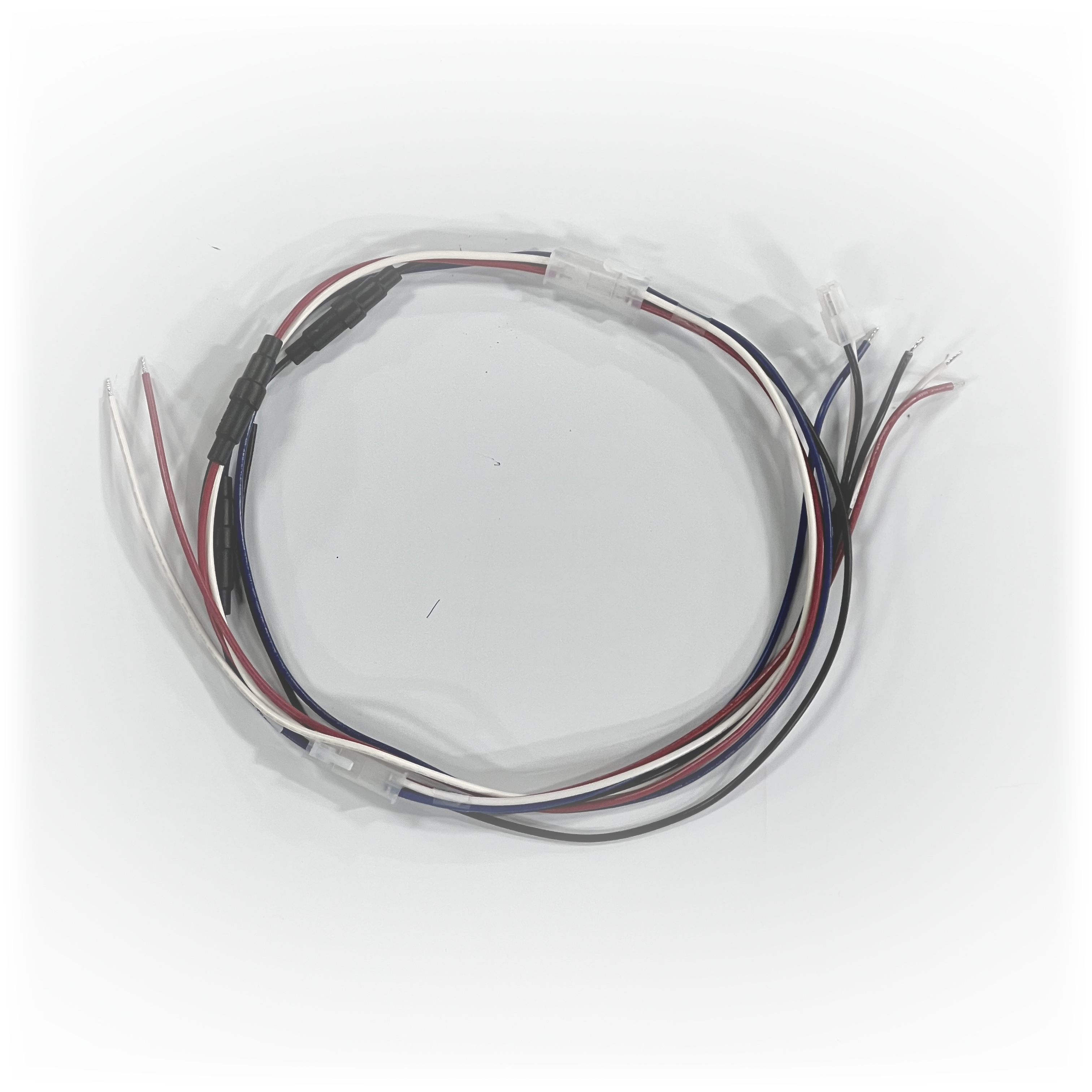

Voltage connection harness

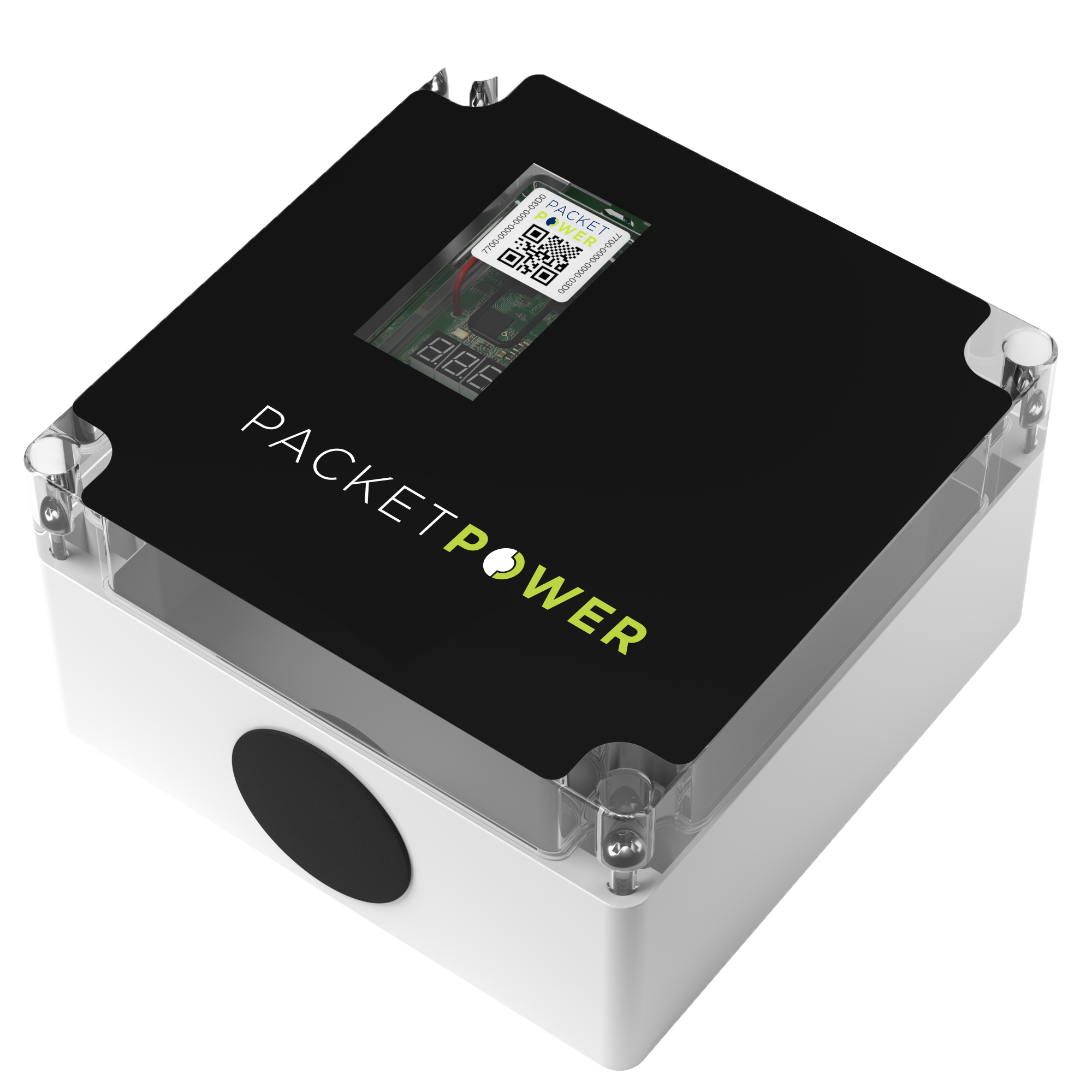

High Res MP480 in NEMA 4 single wire exit_CW-20260424-005244.png
Enclosure (monitoring module + power supply + data interface)
