Veris Branch Circuit Monitors
Supported Devices
Veris H704
Veris E30
Required WNC Firmware
36.24 or newer
Vendor documentation
Veris Industries H704 SERIES Datasheet User Manual
Veris Industries H704-42_1(H)(E) Install User Manual
Veris E30A042 Branch Circuit Power Meter
Veris Industries E30 Install manual
Required PDU configuration

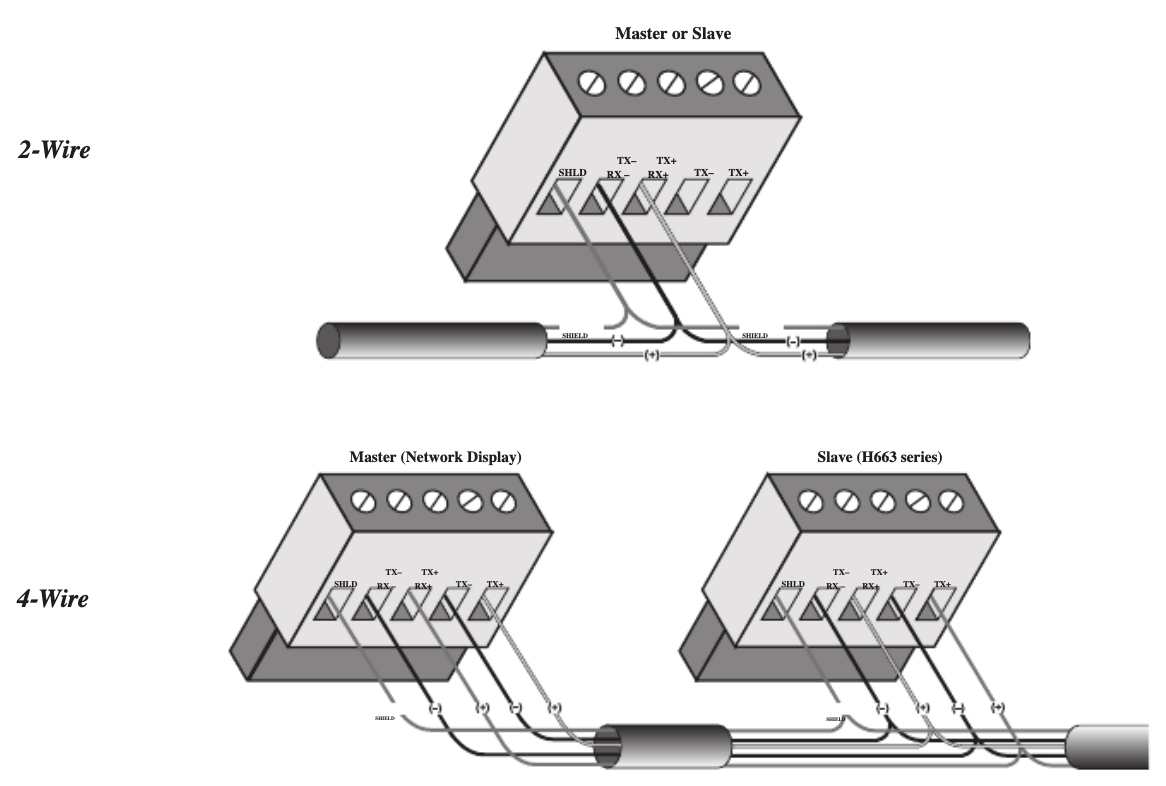

Refer to the Veris Installation Guide's wiring section for detailed directions on 2-wire and 4-wire Modbus RTU wiring.
Required WNC configuration
The WNC supports the Veris H704 and Veris E30 default Modbus RTU configuration as specified in the product datasheets.
H704 | E30 | |
|---|---|---|
Wiring | 2-wire or 4-wire | 2-wire or 4-wire |
Address | 1 | 1 |
Baud Rate | 9600 | 9600 |
Parity | None | None / Off |
If your meters are already configured for an alternative address, baud rate, or parity, please contact Packet Power support to discuss Config Page customization.
The WNC reports all Veris H704 registers.
The WNC reports E30 registers that measure the current on 2 CT strips (42 readings). If your meters are configured to measure current on 4 CT strips (84 readings) or there is a common set of auxiliary readings that require reporting, please contact Packet Power support to discuss additional firmware changes to expand the range of readings.

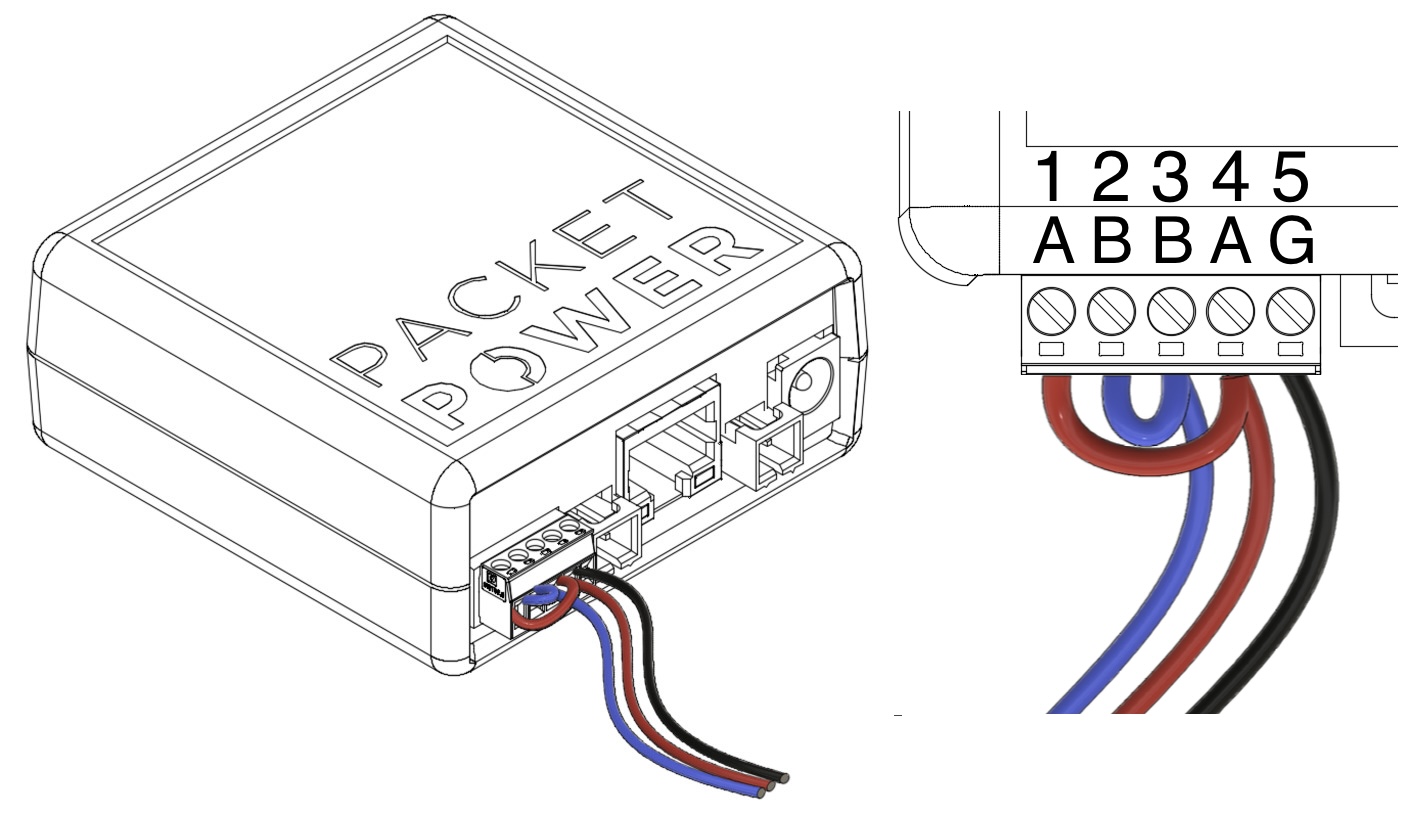

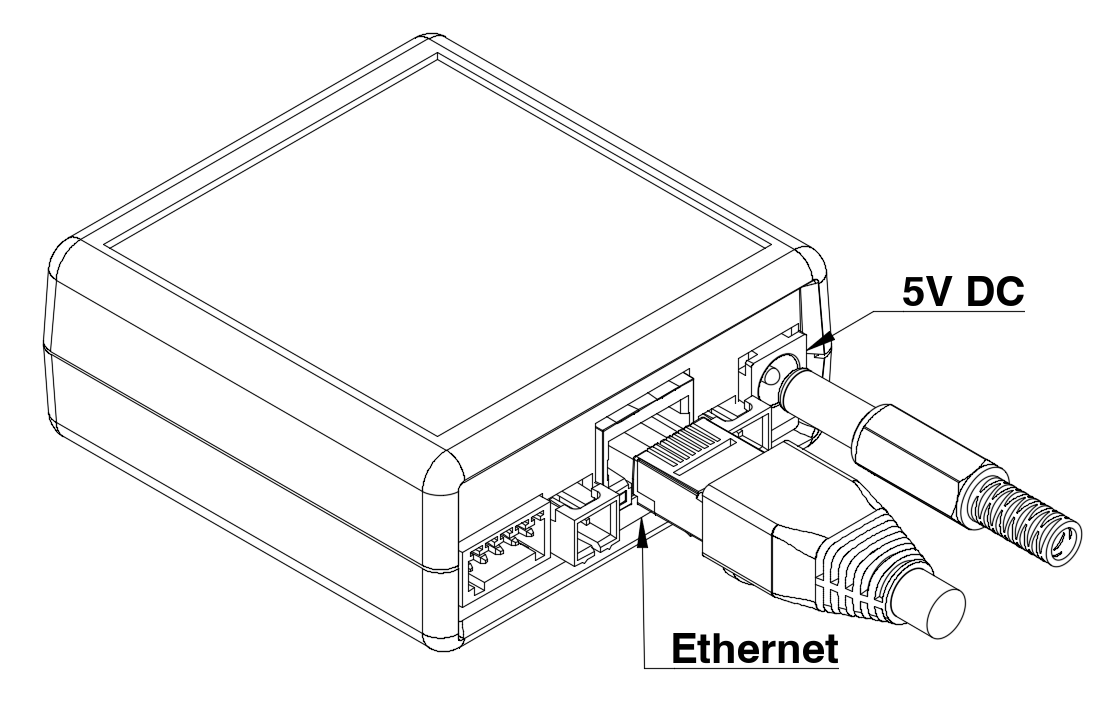

On the rear of the WNC, connect to the Modbus cable using the green 5-pin plug. Refer to figure for connection details.
Readings reported by WNC
Modbus RTU Registers Numbers | Channel | Description | |
H704 | E30 |
|
|
1 | 2252 | Current 1 | CT 1 Reading |
2 | 2254 | Current 2 | CT 2 Reading |
3 | 2256 | Current 3 | CT 3 Reading |
4 | 2258 | Current 4 | CT 4 Reading |
5 | 2260 | Current 5 | CT 5 Reading |
6 | 2262 | Current 6 | CT 6 Reading |
7 | 2264 | Current 7 | CT 7 Reading |
8 | 2266 | Current 8 | CT 8 Reading |
9 | 2268 | Current 9 | CT 9 Reading |
10 | 2270 | Current 10 | CT 10 Reading |
11 | 2272 | Current 11 | CT 11 Reading |
12 | 2274 | Current 12 | CT 12 Reading |
13 | 2276 | Current 13 | CT 13 Reading |
14 | 2278 | Current 14 | CT 14 Reading |
15 | 2280 | Current 15 | CT 15 Reading |
16 | 2282 | Current 16 | CT 16 Reading |
17 | 2284 | Current 17 | CT 17 Reading |
18 | 2286 | Current 18 | CT 18 Reading |
19 | 2288 | Current 19 | CT 19 Reading |
20 | 2290 | Current 20 | CT 20 Reading |
21 | 2292 | Current 21 | CT 21 Reading |
22 | 2294 | Current 22 | CT 22 Reading |
23 | 2296 | Current 23 | CT 23 Reading |
24 | 2298 | Current 24 | CT 24 Reading |
25 | 2300 | Current 25 | CT 25 Reading |
26 | 2302 | Current 26 | CT 26 Reading |
27 | 2304 | Current 27 | CT 27 Reading |
28 | 2306 | Current 28 | CT 28 Reading |
29 | 2308 | Current 29 | CT 29 Reading |
30 | 2310 | Current 30 | CT 30 Reading |
31 | 2312 | Current 31 | CT 31 Reading |
32 | 2314 | Current 32 | CT 32 Reading |
33 | 2316 | Current 33 | CT 33 Reading |
34 | 2318 | Current 34 | CT 34 Reading |
35 | 2320 | Current 35 | CT 35 Reading |
36 | 2322 | Current 36 | CT 36 Reading |
37 | 2324 | Current 37 | CT 37 Reading |
38 | 2326 | Current 38 | CT 38 Reading |
39 | 2328 | Current 39 | CT 39 Reading |
40 | 2330 | Current 40 | CT 40 Reading |
41 | 2332 | Current 41 | CT 41 Reading |
42 | 2334 | Current 42 | CT 42 Reading |
