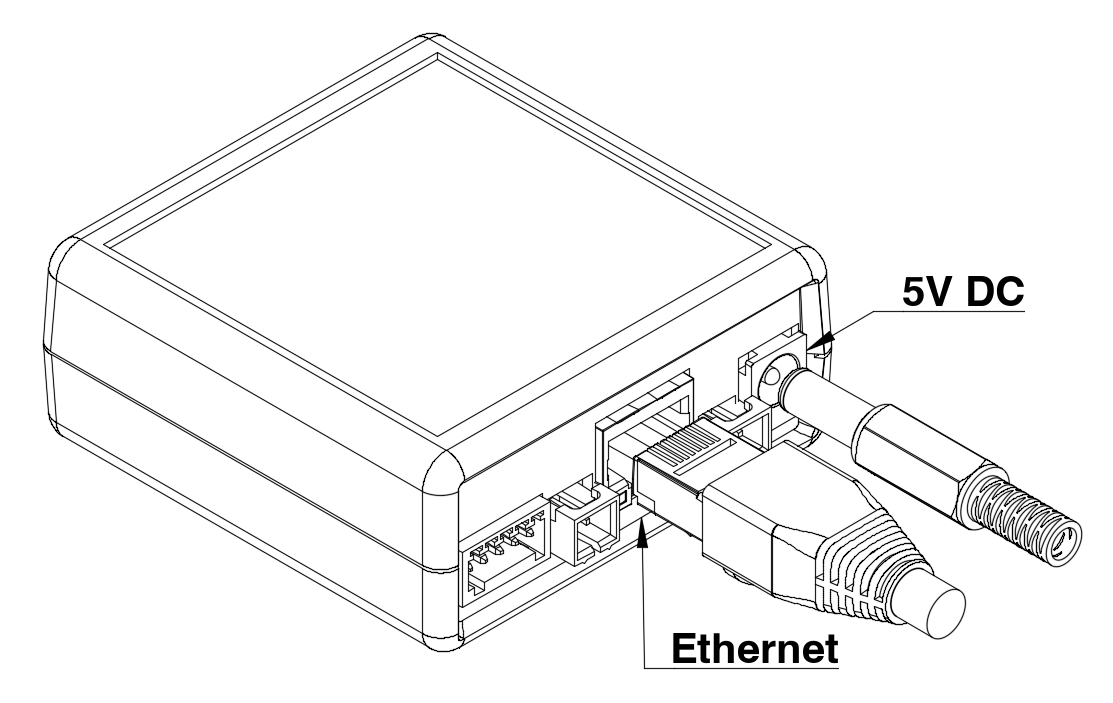

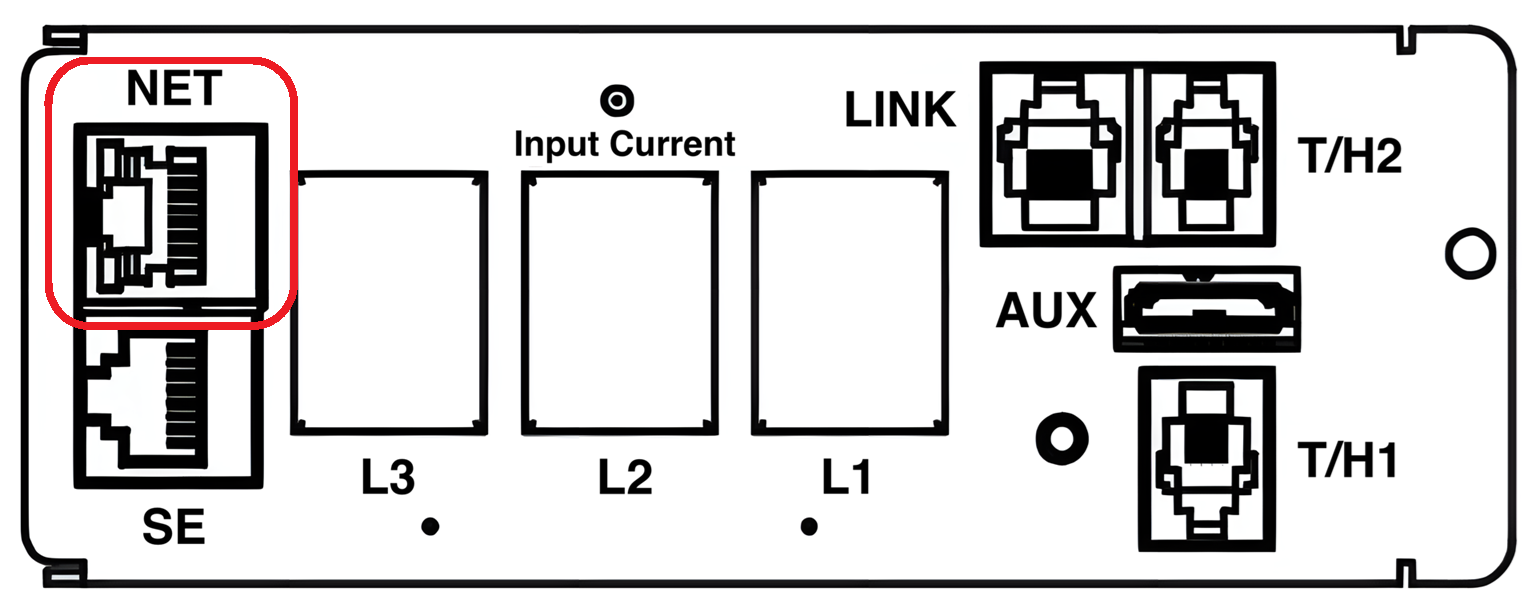

WNC <--> SNMP <--> ServTech
|
|
|---|---|
|
Supported devices: All Server Tech devices that support SNMP MIB file: Sentry4‑MIB
|
|
|
|
|
Channel |
Description |
|
Total Power |
PDU total power |
|
Total Energy |
PDU total accumulated energy |
|
Current A..C |
phase current |
|
Voltage A..C |
phase voltage |
|
Power A..C |
phase power |
|
Phase Angle A..C |
phase voltage-current angle |
|
Power Factor A..C |
phase power factor |
|
Energy A..C |
phase accumulated energy |
|
Frequency |
AC line frequency |
|
Current 1..48 |
outlet current |
|
Power 1..48 |
outlet power |
|

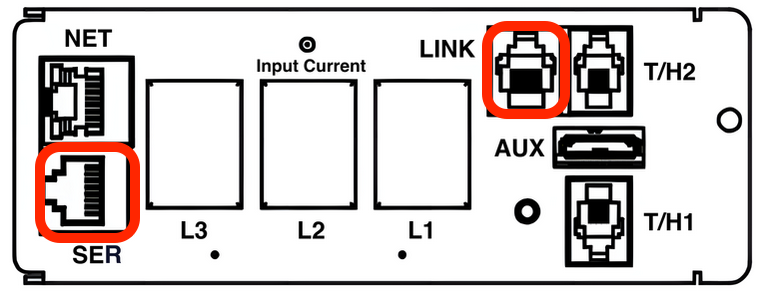

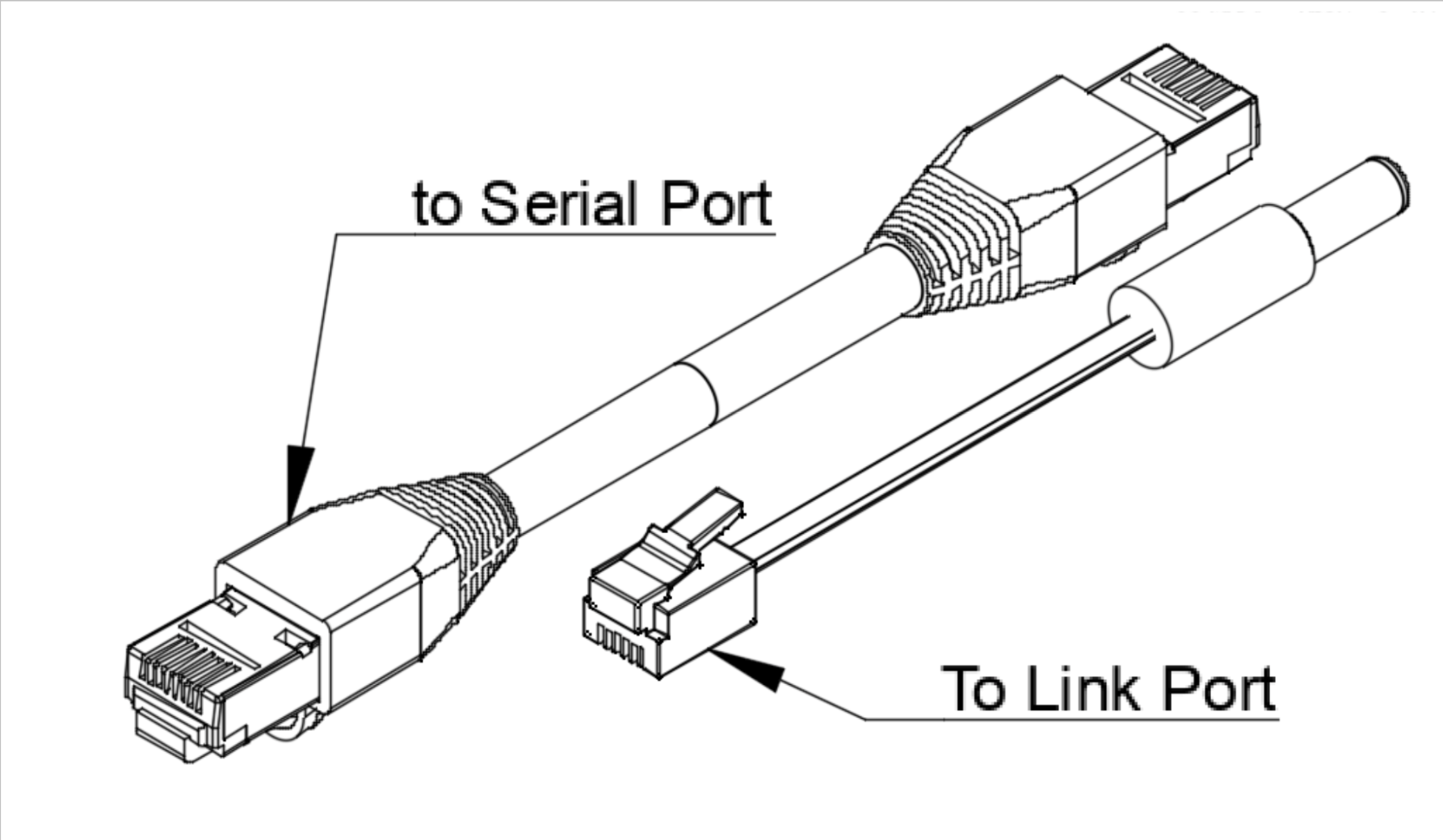

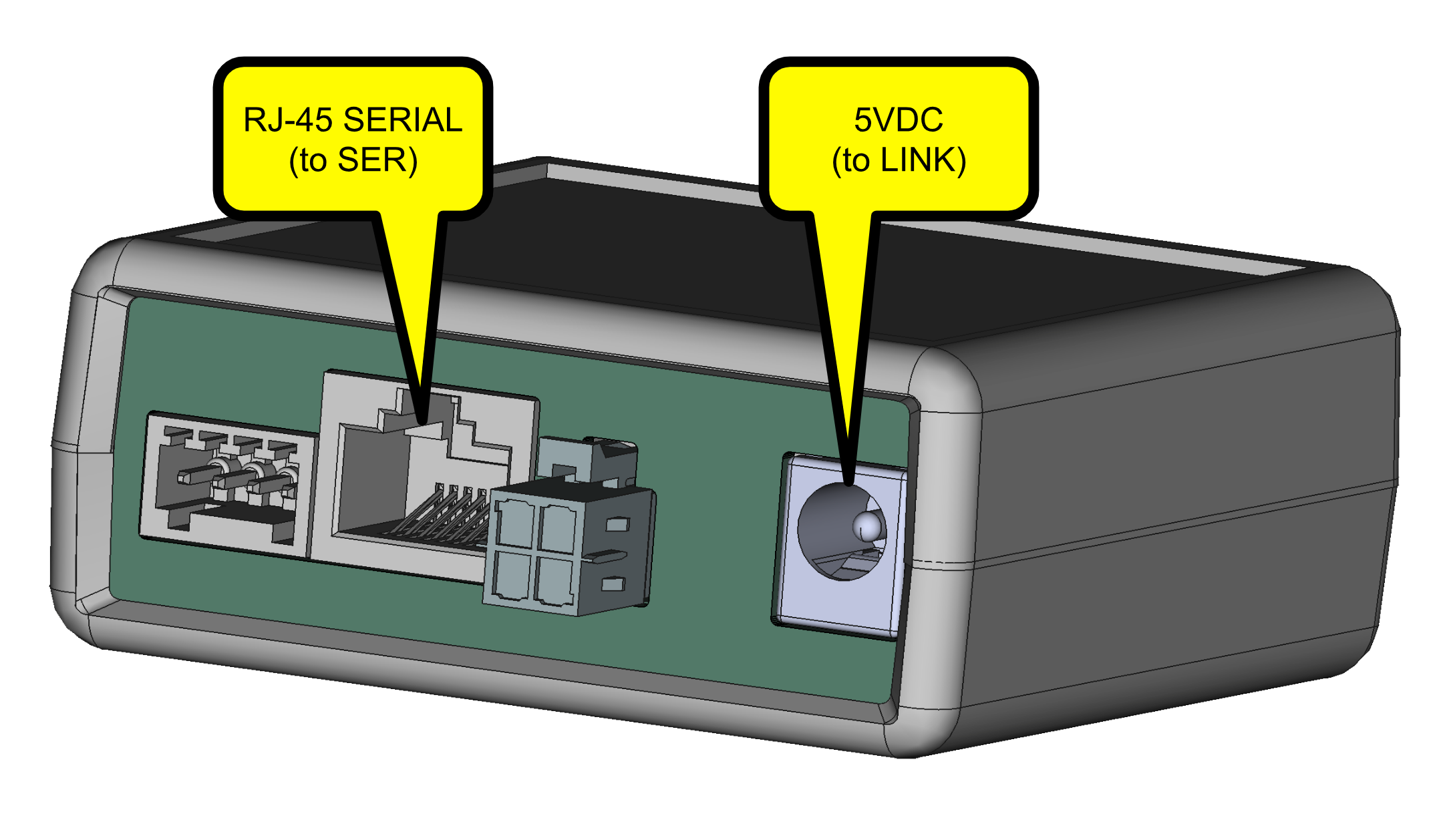

WNC-RS232 <--> Serial CLI <--> ServTech
|
WNC-RS232 <-- Serial RFC <-- ServTech
|
|---|---|
|
All Server Tech devices that support serial Command Line Interface 8.0X+ |
All Server Tech devices that support RFTag (aka RFCode) and have RFTag support enabled |
.png?cb=b1c71360cc0c26a7ec52c21129e5a029)
|
|
|
Channel |
Description |
|
Current A..C |
phase current |
|
Voltage A..C |
phase voltage |
|
Power A..C |
phase power |
|
Energy A..C |
phase accumulated energy |
|
Current 1..48 |
outlet current |
|
Contact 1..6 |
breaker status (0=tripped, 1=normal) |
