Sample wiring diagrams for 54-pole panels — 8 variants covering wired and wireless monitoring, with and without mains monitoring, and both voltage sources. Panels built from several 54-pole bodies under one monitor are included here too.

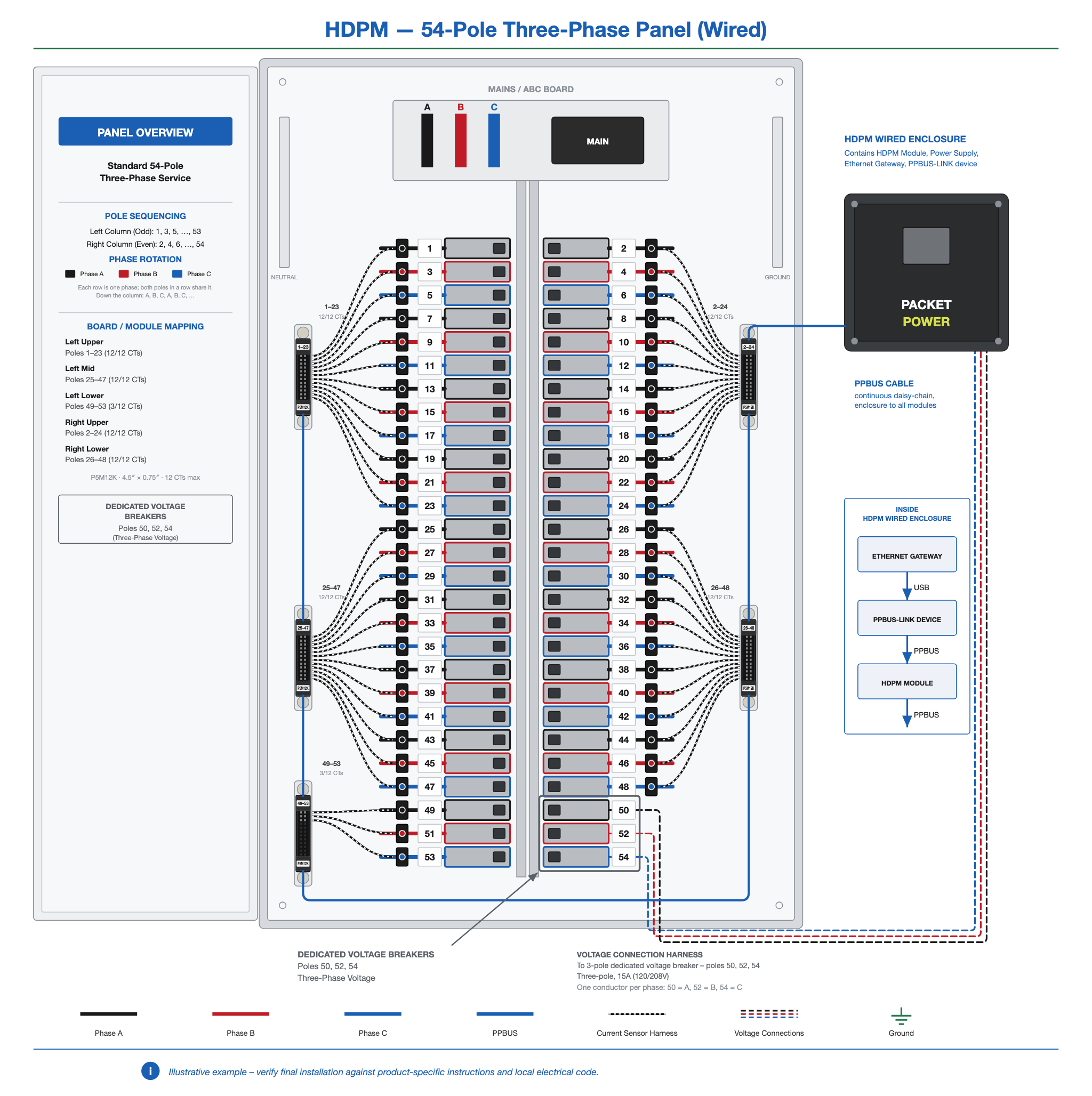

HDPM — 54-Pole Three-Phase Panel (Wired)
HDPM — 54-Pole Three-Phase Panel (Wired) + Mains Monitoring

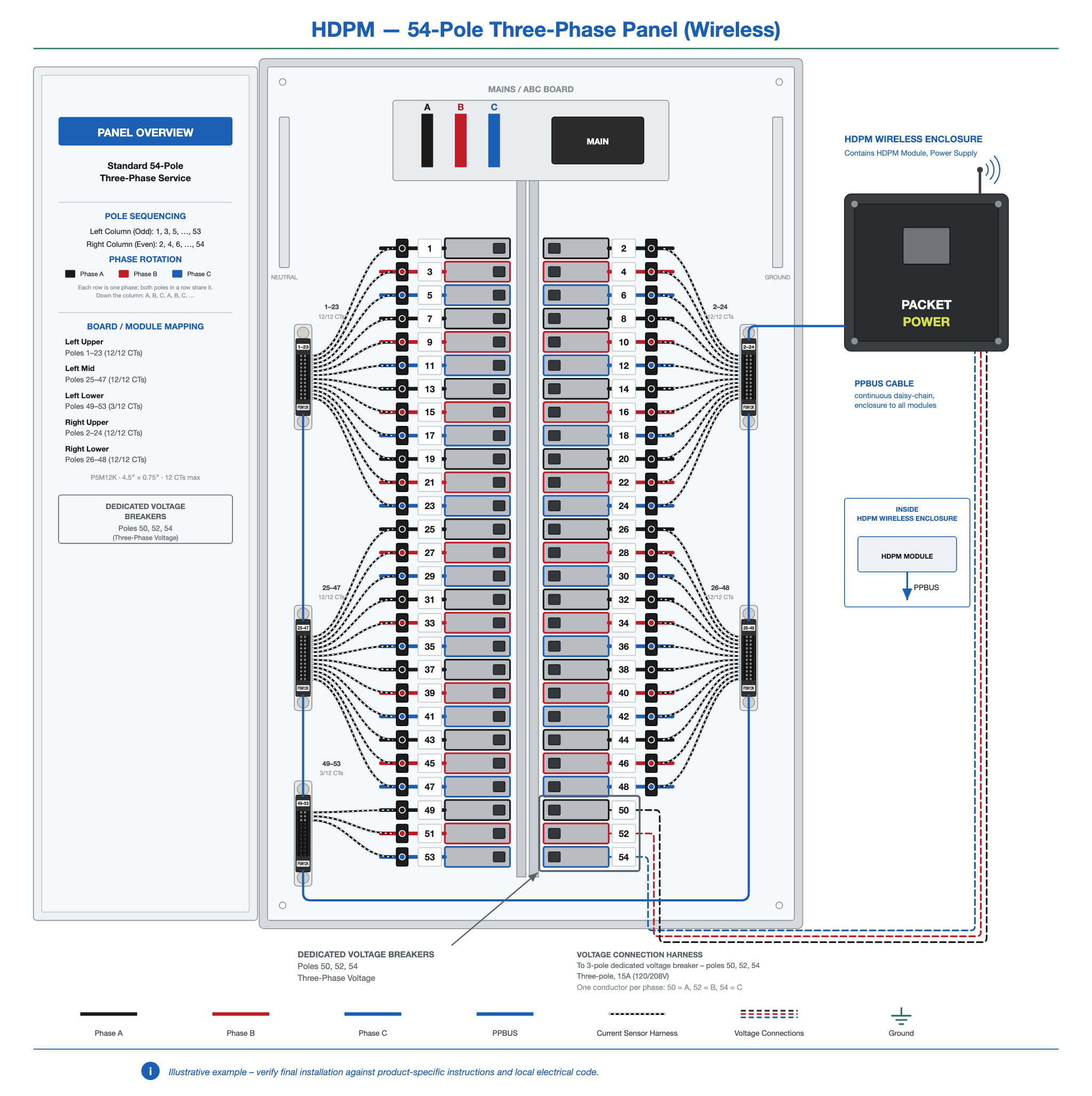

HDPM — 54-Pole Three-Phase Panel (Wireless)
HDPM — 54-Pole Three-Phase Panel (Wireless) + Mains Monitoring

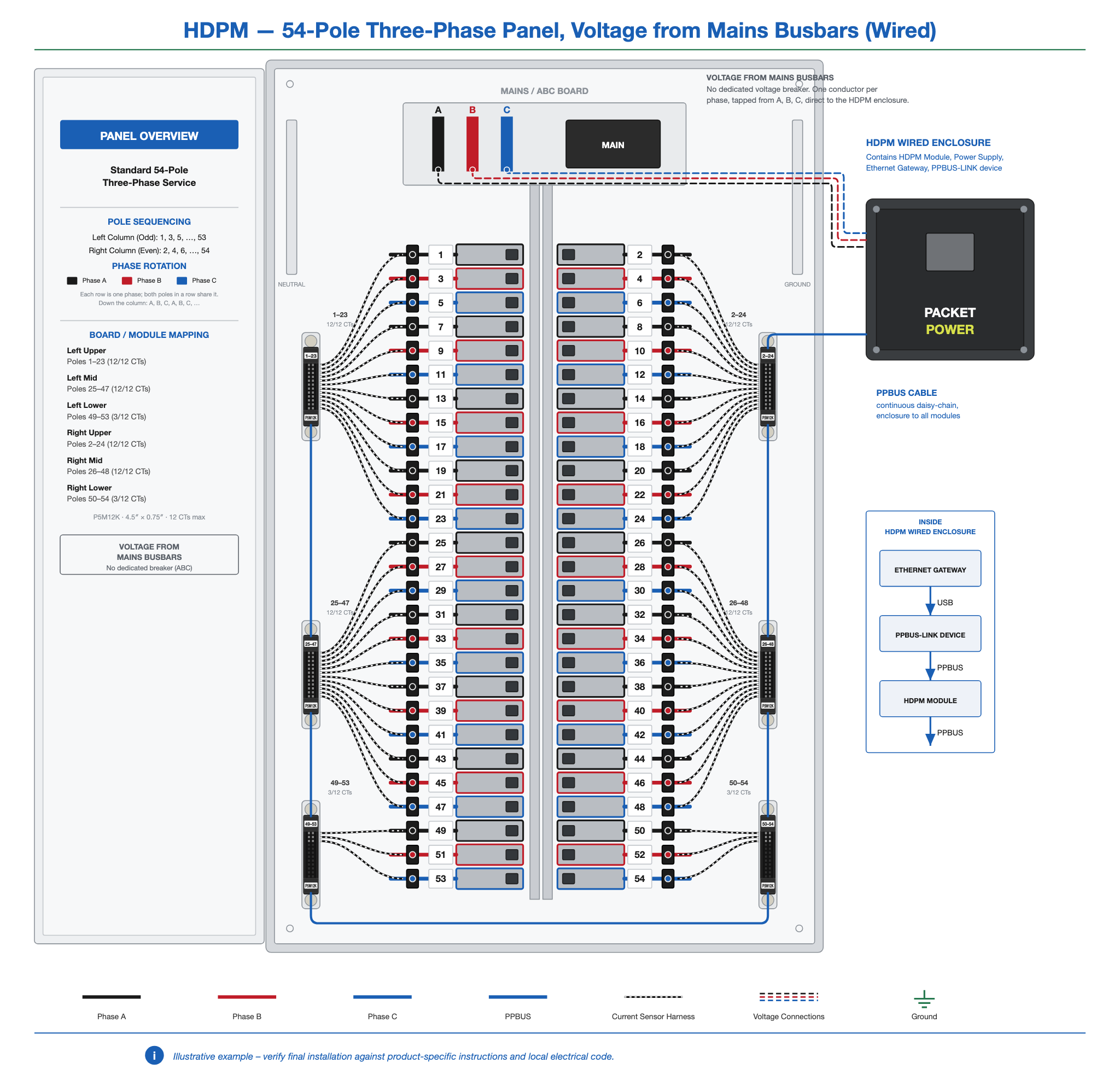

HDPM — 54-Pole Three-Phase Panel, Voltage from Mains Busbars (Wired)

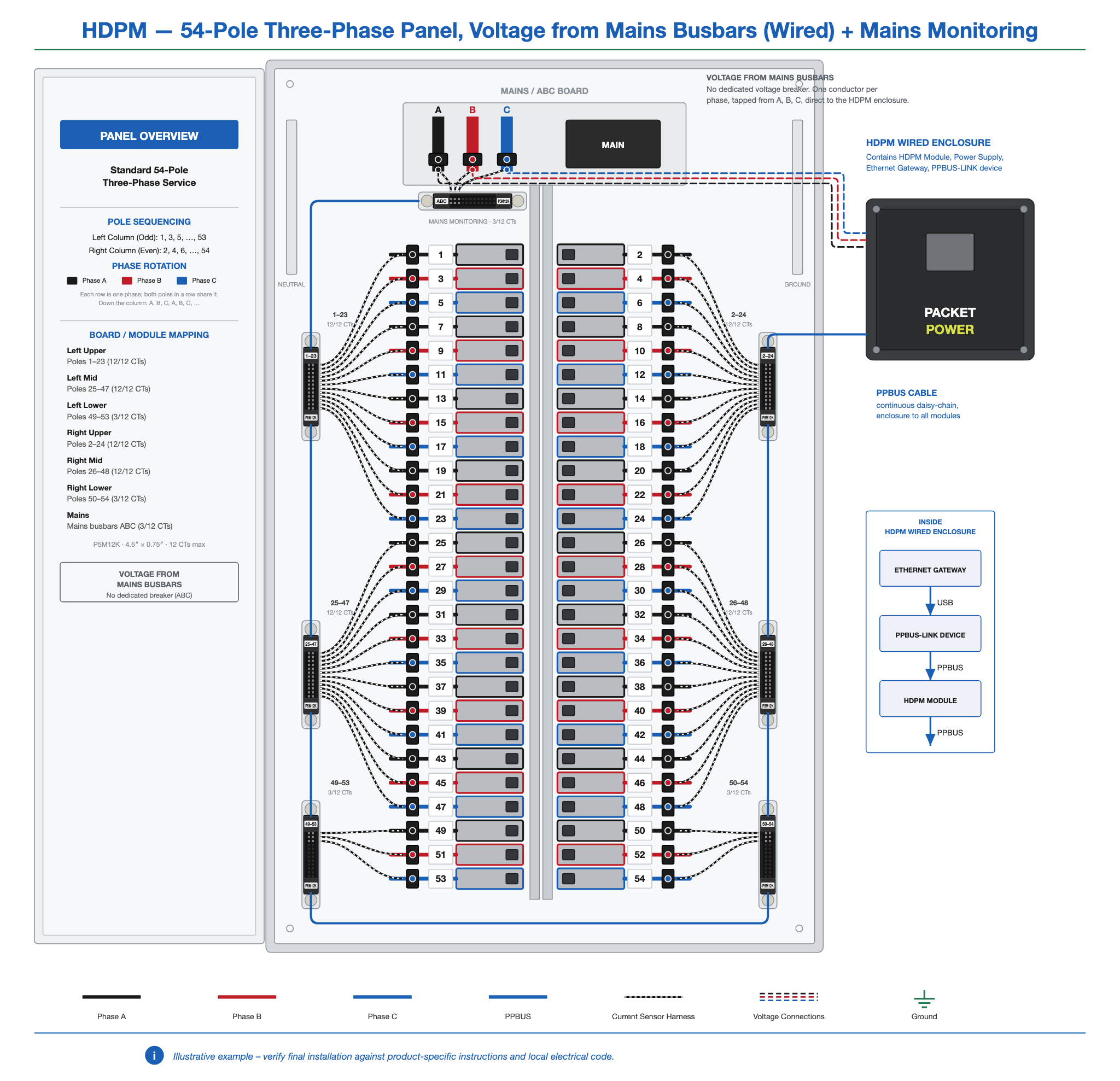

HDPM — 54-Pole Three-Phase Panel, Voltage from Mains Busbars (Wired) + Mains Monitoring

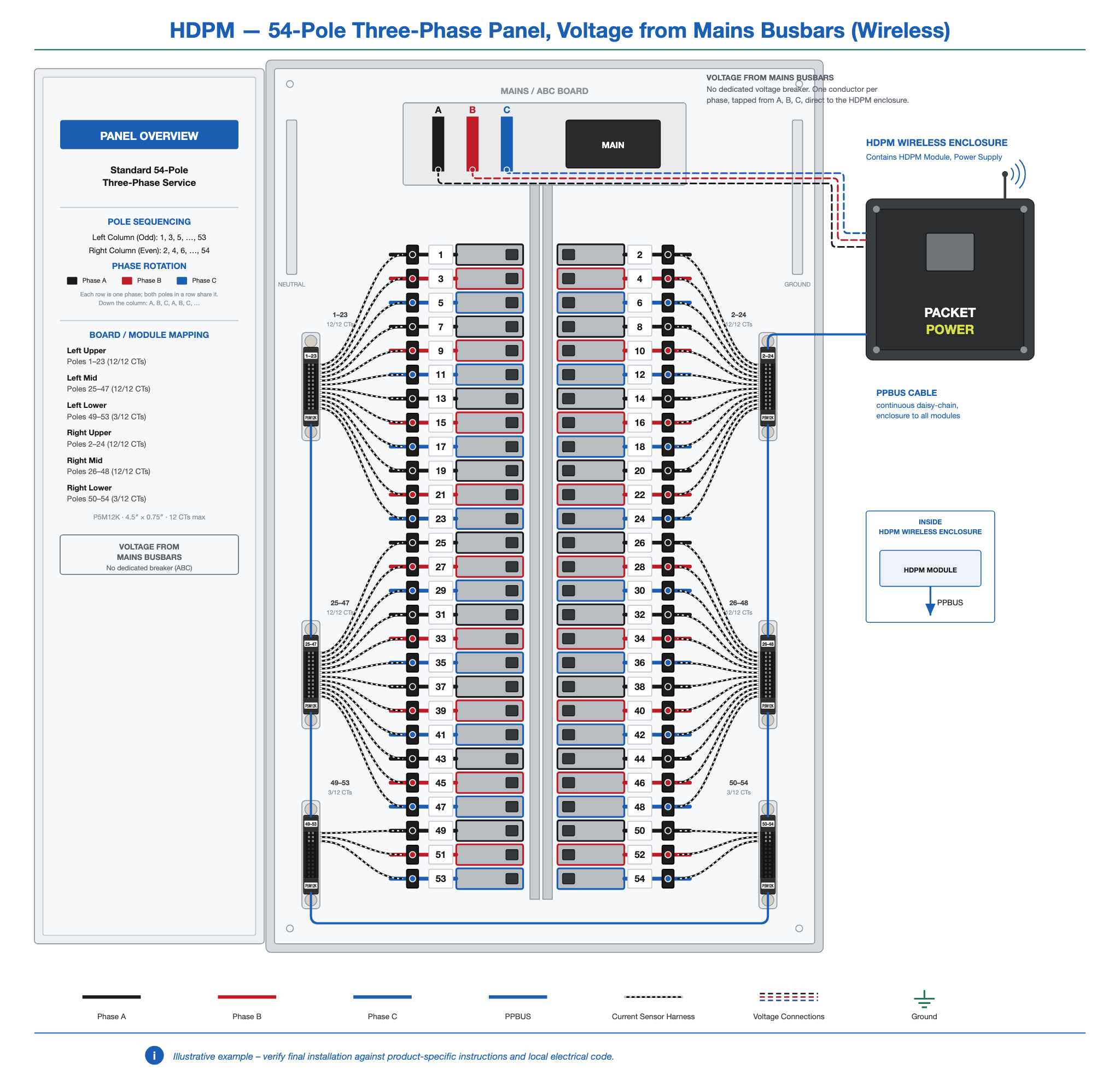

HDPM — 54-Pole Three-Phase Panel, Voltage from Mains Busbars (Wireless)

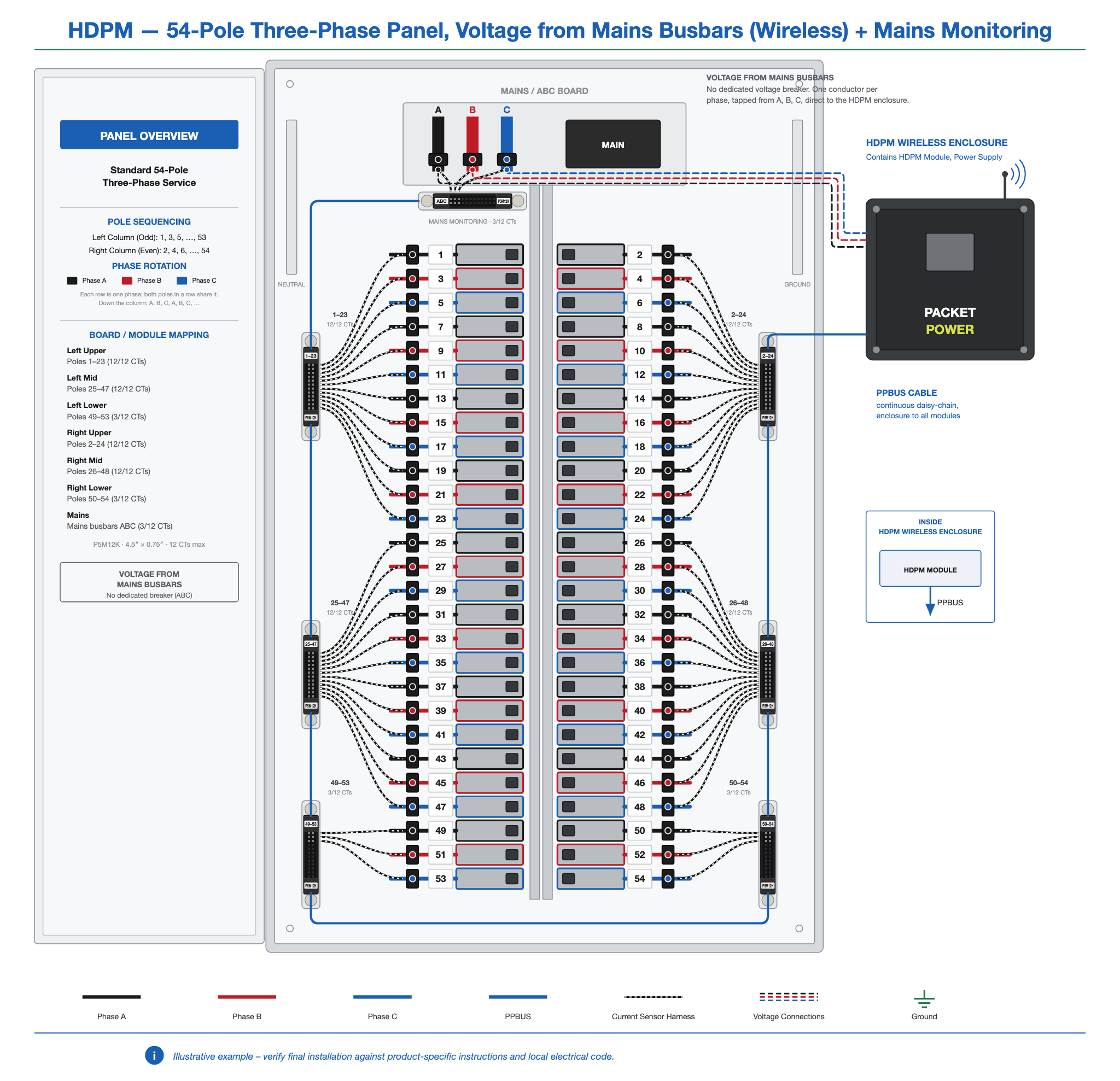

HDPM — 54-Pole Three-Phase Panel, Voltage from Mains Busbars (Wireless) + Mains Monitoring
Illustrative examples – verify final installation against product-specific instructions and local electrical code.
