BGxx, MGxx, PGxx, RGxx, BGSxxH, MP480 - (5.X)
Branch circuit, multi-circuit, and single meter

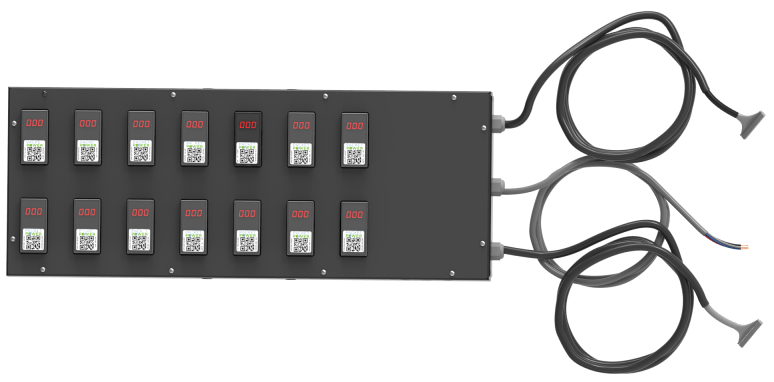

BG14 Branch Circuit Monitor
Product number | Product type |
|---|---|
BGxx, MGxx, PGxx, RGxx | Three-phase capable 900MHz/2.4GHz power monitoring modules with LED display; any three phase power monitoring devices up to 277V AC |
BGxx, BGSxxH, | Three-phase capable 900MHz/2.4GHz power monitoring modules with LED display; any three phase power monitoring devices measuring 480V AC |
Release history
Release | Type | Key features | Prerequisites |
|---|---|---|---|
5.48 | Recommended | Fixes energy accumulation bug | |
5.46 | Discretionary | Detect and mitigate kWh energy "jumps" | |
5.44 | Enables secure, near-field communications (for future use) | ||
5.42 | Mesh networking refinements for battery-powered devices Improved relay of reports from battery-powered devices Improved error recovery resilience | ||
5.40 | Adds a watchdog function that reboots the unit if it has been more than 30 minutes since it last joined a network Enables a secure near-field communications option (for future use) Adds mesh networking refinements | ||
5.38 | Improves stability in large mesh networks, automatically adjusts phase angles on incorrectly oriented current transformers. Correctly reports phase angle on flipped CTs Changes the way in which information on custom radio zones is displayed via the LED | ||
5.36 | Support for harmonic measurements (feature needs to be factory enabled and must have updated Gateway firmware). Improved mesh network performance. | ||
5.34 | Resolves an error that happens infrequently when a unit is powered on and results in certain data elements not being reported. Recommended for nodes running 5.26 or later and nodes on delta circuits. Discretionary for others. | ||
5.32 | Allows units to relay information from battery-powered monitoring units | ||
5.30 | Allows option to minimize impact of incorrect CT orientation by disabling net metering | ||
5.28 | Delta / wye processing enhancements Swap import and export registers Share configuration commands with downstream processors | ||
5.26 | Standardized LED sequence per indicators Support 2.4 GHz mesh isolation Zero power factor readings at extremely low loads | ||
5.24 | Configurable display sequence Fixes power factor reporting error | ||
5.20 | Resolves a bug that can allow units with no load to sporadically report high loads | Version 4 Gateway or Version 3 Gateway at f/w version 6.3.0 or newer if also using EMX | |
5.19 | Reversible LED display Phase assignment-sensitive LED display sequence |
