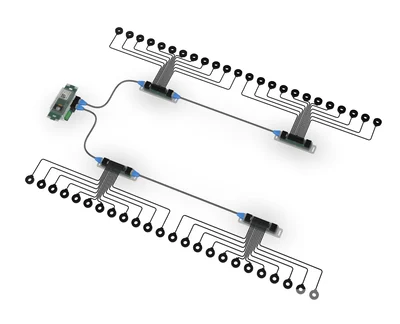

High Density Power Monitors (HDPM)

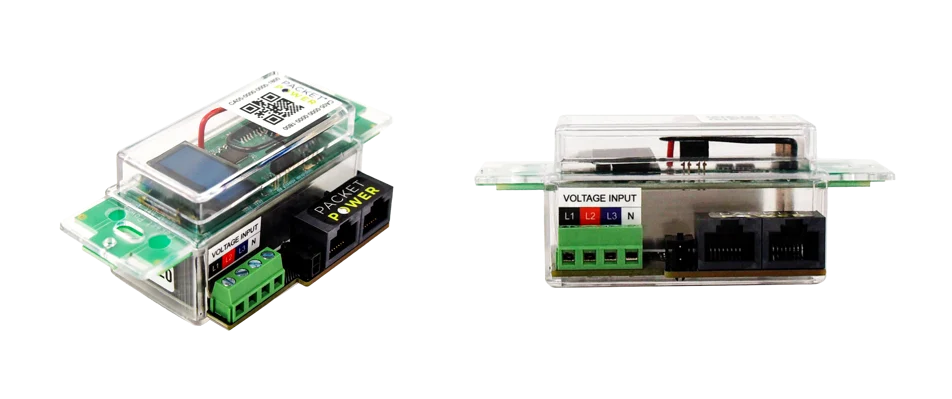

HDPM Main Module

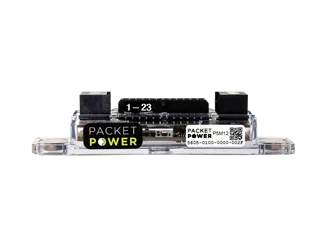

HDPM 12 Current Sensor Module


Note: There is a separate firmware release for the HDPM Main Module as well as the 12 Current Sensor Modules. The firmware update process works the same for both (that is, the HDPM Main Module will forward the 12 Current Sensor Module firmware to those devices via the wired PPBUS).

HDPM Main Module firmware release history

Release

Type

Key features

44.2

Required

  • Initial production release

HDPM 12 Current Sensor Module firmware release history

Release

Type

Key features

45.2

Required

  • Initial production release
